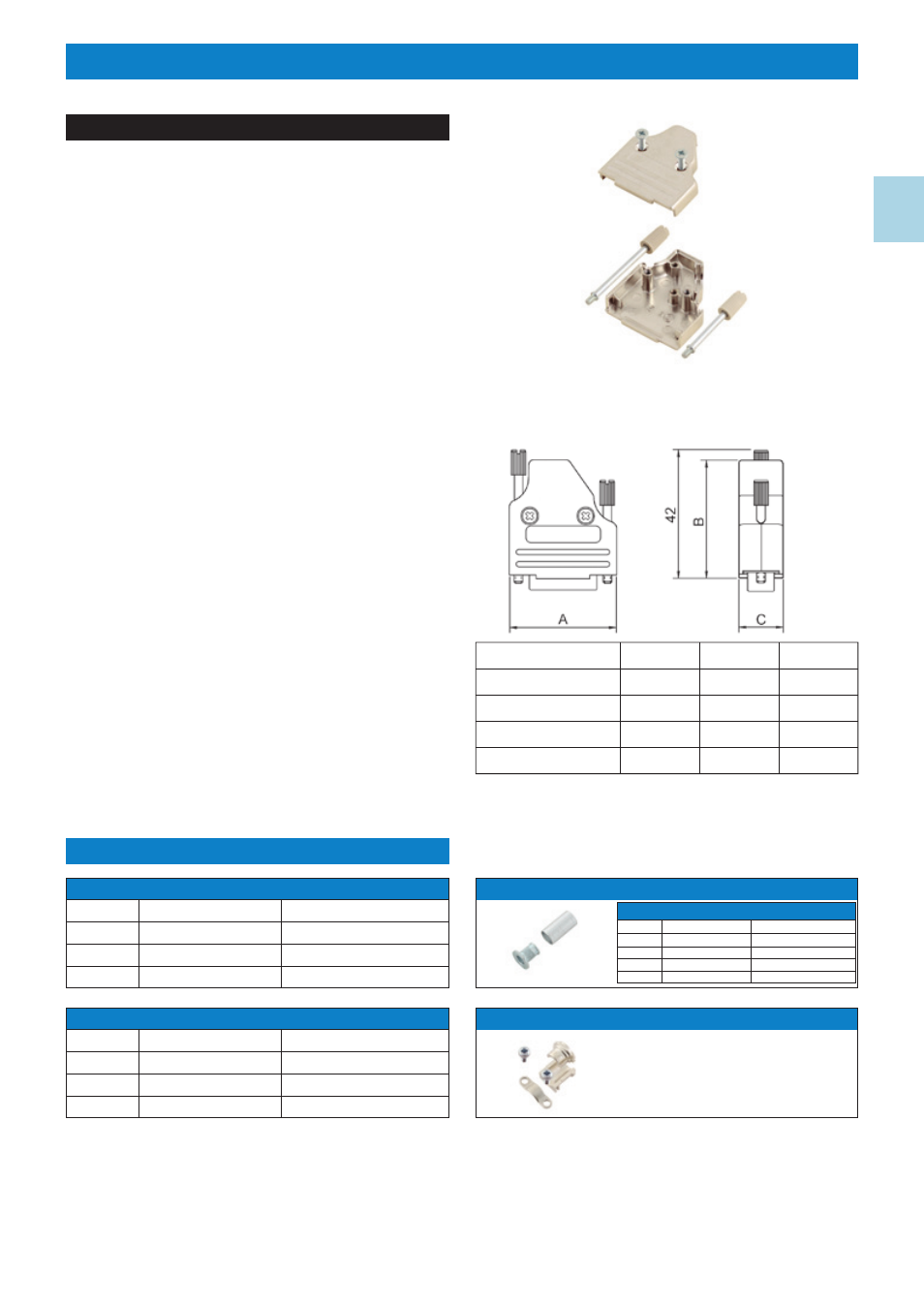

Northern Connectors D-Sub Full Metal Hoods - Manual (Page 2)

25 25
FULL METAL HOODS MHULTI HOOD SYSTEM-55° ENTRY
TECHNICAL SPECIFICATIONS
Ordering information:
Size: P/N - Kitted: Product Code:
9-way 6560-0138-11 MHC35-9-K
15-way 6560-0138-12 MHC35-15-K
25-way 6560-0138-13 MHC35-25-K
37-way 6560-0138-14 MHC35-37-K
Size: P/N - Kitted: Product Code:
MHC35-Series
MHDM35-Series
9-way 6560-0139-11 MHDM35-9-K
15-way 6560-0139-12 MHDM35-15-K
25-way 6560-0139-13 MHDM35-25-K
37-way 6560-0139-14 MHDM35-37-K
Size: Dim A Dim B Dim C
9-way 43,0 32,0 15,5
15-way 43,0 40,4 15,5
25-way 48,0 54,0 15,5
37-way 53,0 70,5 15,5
03
Size: P/N: Product Code:
5,3mm 6522-0119-11 MHC-5,3
6,0mm 6522-0119-12 MHC-6,0
7,0mm 6522-0119-13 MHC-7,0
7,5mm 6522-0119-14 MHC-7,5
8,6mm 6522-0119-15 MHC-8,6
Included when ordering
Material: Zinc, Nickel Plated
Operating Temperature: -40°C to +120°C
Cable Entry:
Side Entry
Thumbscrews: UNC 4-40 (Standard)
M2,5 or M3 on request
Cable O.D: Up to 13mm
Accessories: See page 190-194
Assembly Instruction: See page 202-203
Features:
● Available in sizes 9-15-25-37
● 360° EMI Shielding
● 3 versions of same concept
● Quick assembly
● Supports all types of cables
● Suitable for any common D-Sub connector
Types available:
● MHC35: Crimp Version
● MHDM35: Metalized Grommet Kit + Clamp
● MHEE35: Metalized Cone + Clamp
