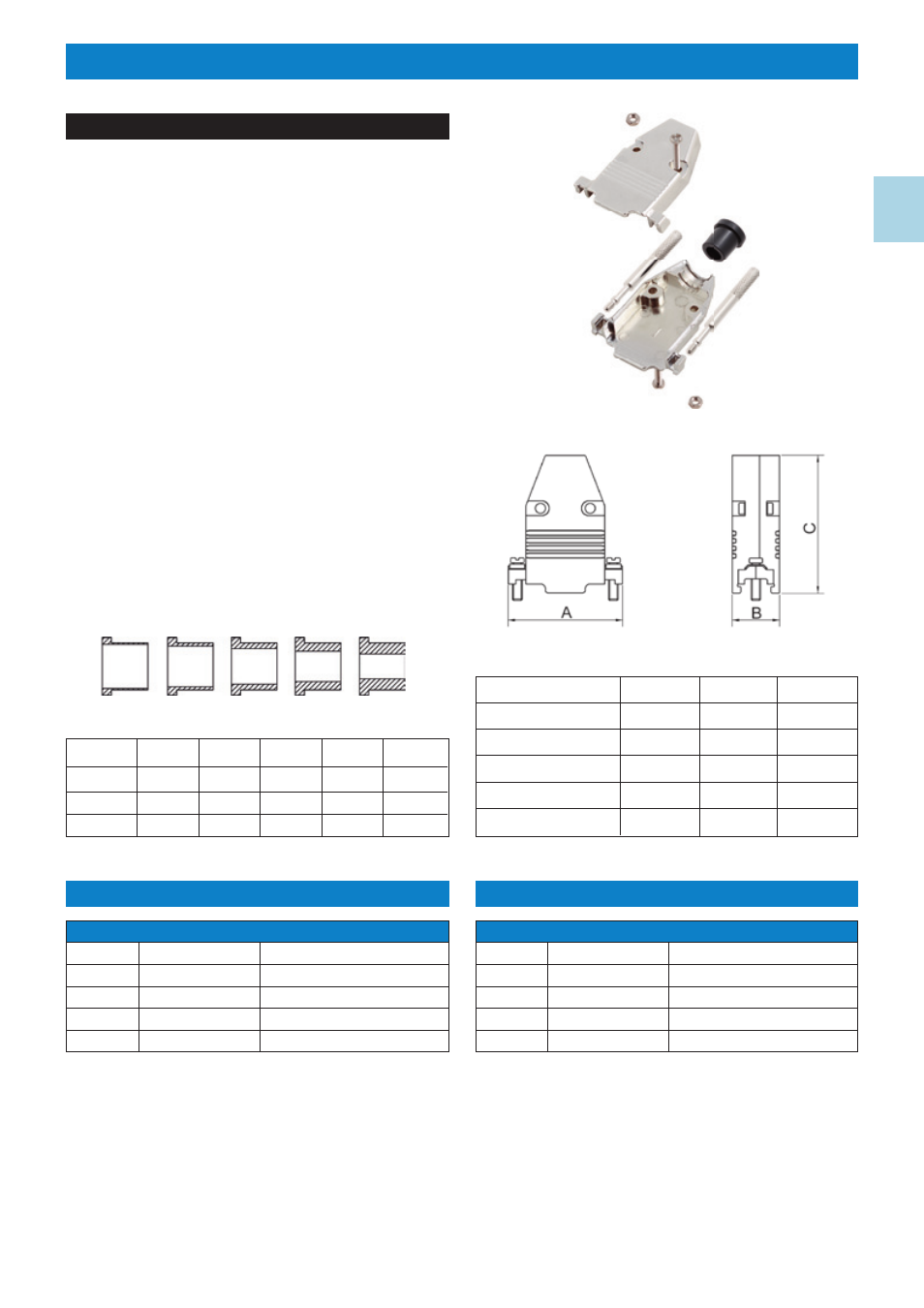

FULL METAL HOODS CCOV-ME-SERIES
03
Ordering information:
(Short Jackscrews)
Size: P/N - Kitted: Product Code:
9-way 2360-0107-01 CCOV 9-ME-RG
15-way 2360-0107-02 CCOV15-ME-RG
25-way 2360-0107-03 CCOV25-ME-RG
37-way 2360-0107-04 CCOV37-ME-RG
50-way 2360-0107-05 CCOV50-ME-RG
Size MHCCOV Dim A Dim B Dim C
9-way 31,4 16,2 53,0
15-way 40,2 16,2 48,3
25-way 53,0 16,2 48,3
37-way 69,2 16,2 48,3
50-way 67,0 18,4 48,3
Features:
● Available in sizes 9, 15, 25, 37 and 50
● Suitable for any common Sub-D connector
● Re-Openable
● Available also with Long Jackscrews (MEL)
Material: Zinc, Nickel Plated
Operating Temperature: -25°C to +90°C
Cable Entry:
Top Entry
Cable O.D: Up to 16mm*
Jackscrews: UNC 4-40
Short Jackscrews (ME-version)
Long Jackcsrews (ME L-version)
* Cable Diameter Max 16mm if Compression Insert is not used.
Recommended diameters with Inserts - Please see table below.
(Long Jackscrews)
Size: P/N - Kitted: Product Code:
9-way 2360-0107-11 CCOV 9-MEL-RG
15-way 2360-0107-12 CCOV15-MEL-RG
25-way 2360-0107-13 CCOV25-MEL-RG
37-way 2360-0107-14 CCOV37-MEL-RG
50-way 2360-0107-15 CCOV50-MEL-RG
TECHNICAL SPECIFICATIONS
A B C D E
Compression Inserts - Inner Diameters:
Size A B C D E
9/15 8,00 7,50 7,00 6,00 4,50
25 9,50 8,30 7,90 6,75 5,80
37/50 13,50 13,00 11,00 9,00 8,00
