Dimensions and specifications may be changed without prior notice

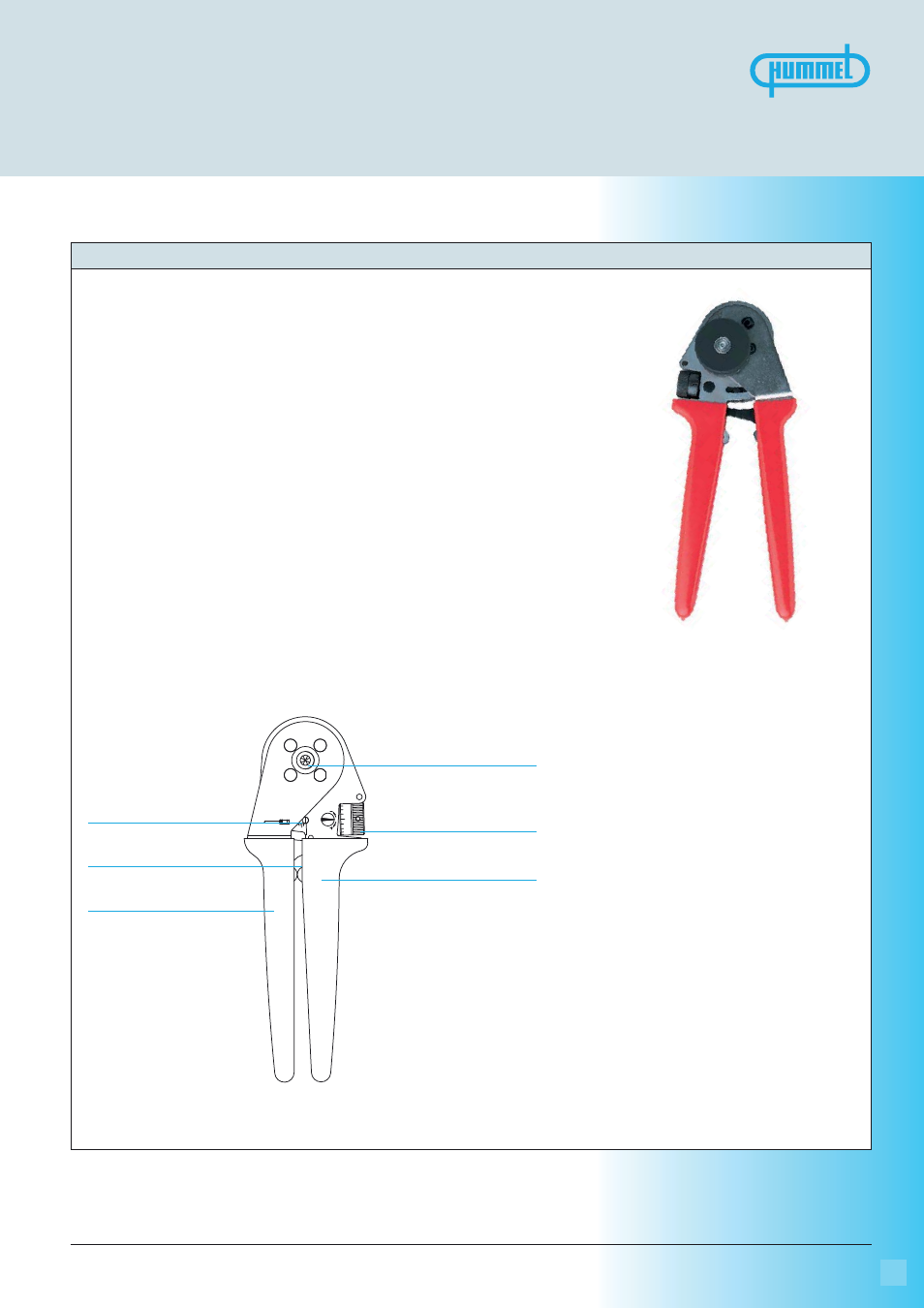

Crimp Tool for Power Connectors M 23
Type Part Number Crimp Tool
Crimp jaws
Adjusting screw
with 0.1 mm increments
Scale indicating
0.2 mm increments
Crimp tool .......................................................................7.000.900.901
Application
The four indent crimp tool 7.000.900.901 has been developed for optimal crimping of
machined contacts with diameters from 0.14 to 6.0 mm
2 (26 through 10 AWG).
How to Crimp
The reference table indicates the correct locator position to be selected and the crimp
depth to be adjusted for the contact to be crimped. The contact is then inserted through
the access hole of the tool on the opposite side of the locator. The contact is held in place
by closing the handles to the first lock-in position thus preventing the contact from falling
out of the tool and facilitating insertion of the wire into the contact.
The precision ratchet assures consistently accurate crimping every time by forcing the tool
to be closed all the way completing the crimping cycle before the tool can be opened
again.
Exchange of the Locator
The locator can be exchanged by removing the socket head cap screw with a socket wrench.
It can then be disassembled from the hex head screw by turning it counter-clockwise.
Moveable handle
Physical stop
Fixed handle
