When entering a function with associated data, such as with the ‘Pause’ in Phase 5 or the ‘Loop’ in Phase 6, the
function is entered in 2 steps. First select the function and store it. Then enter the associated data.
Phase
Function
Rate
Volume
Direction
1
RAT
750 mL/hr
2.0 mL
Infuse
Phase
Function
Rate
Volume
Direction
2
RAT
750 mL/hr
0.25 mL
Withdraw
Phase
Function
3
LPS
Phase
Function
4
LPS
Phase
Function
5
PAS 90
Phase
Function
6
LOP 03
Phase
Function
7
BEP
Phase
Function
8
PS:30
Phase
Function
Rate
Volume
Direction
9
RAT
750 mL/hr
2.25 mL
Infuse
Phase
Function
Rate
Volume
Direction
10
RAT
750 mL/hr
0.25 mL
Withdraw
Phase
Function
11
LPE
7.4.3

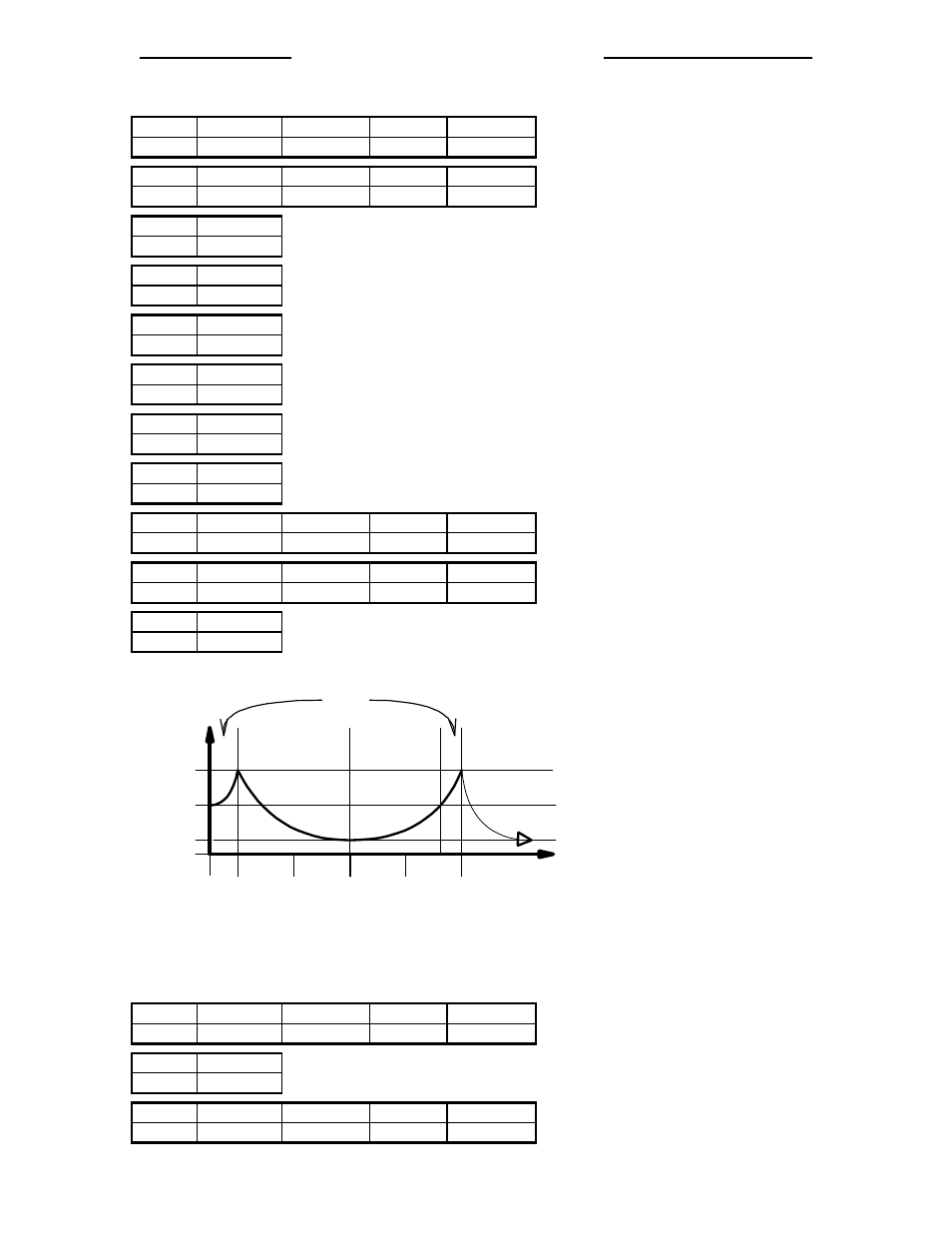

Example 3: Ramping the Flow Rate
m
l/
h
r
R
a
te
Time
0
150
200
250
Phases
2 - 4
Phases
5 - 8
Phases
9-11
Note: Graph is representative only.
Pumping rate increments and decrements in steps.
Continuously ramp up and down the pumping rate. Starting at 200 mL/hr, the pumping rate will increment to
250 mL/hr in 1.0 mL/hr steps after every 0.1 mL has been dispensed. Then the pumping rate will decrement to
150 mL/hr in 1.0 mL/hr steps after every 0.1 mL has been dispensed. Finally, the pumping rate is incremented
back to 200 mL/hr in 1.0 mL/hr steps after every 0.1 mL has been dispensed, then the process is repeated.
Phase
Function
Rate
Volume
Direction
1
RAT
200 mL/hr
0.1 mL
Infuse
Phase
Function
2
LPS
Phase
Function
Rate
Volume
Direction
3
INC
1.0
0.1 mL
Infuse
