page 26 —mq600Td80 TRaSH pUmp • opeRaTion and paRTS manUal — Rev. #11 (10/10/11)
Maintenance
eaSy-CHange FUel FilTeR
Replace the easy change fuel filter (Figure 14) every 500
hours.

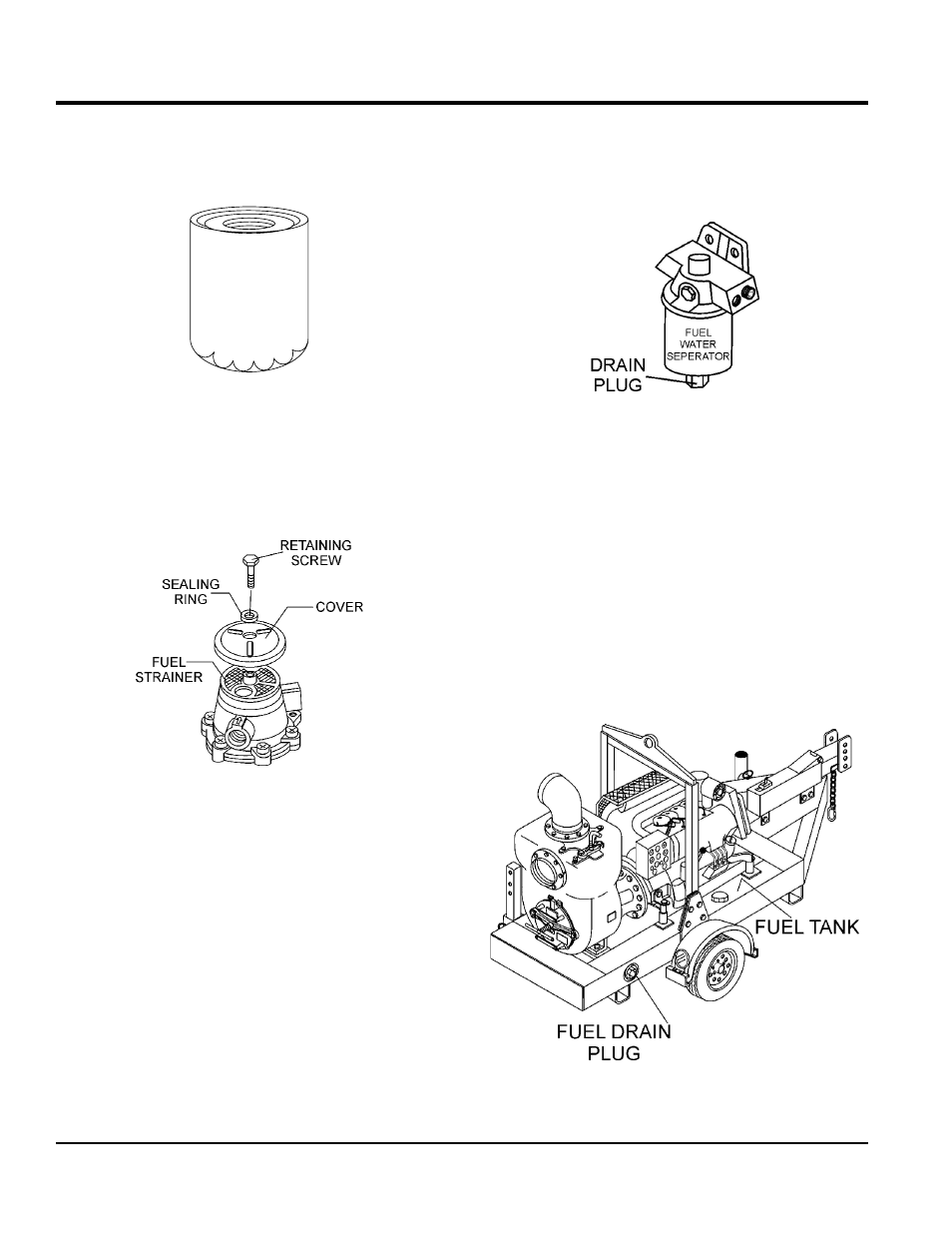

Figure 14. Easy-Change Fuel Filter
imSa FUel FilTeR
Inspect and clean (replace if necessary) the IMSA fuel
filter (Figure 15) every 500 hours. This filter is part of the
fuel pump.
Figure 15. IMSA Fuel Filter
Cleaning THe imSa FUel FilTeR
1. Close the fuel shut-off valve and loosen the retaining
on the IMSA fuel filter (Figure 15).
2. Remove the cover and the fuel strainer.
3. Clean the fuel strainer with diesel fuel. Replace fuel
strainer if necessary.
4. Re-assemble IMSA fuel filter.
5. Bleed fuel system and check for fuel leaks.
EASY-CHANGE
FUEL FILTER
FUel WaTeR SepaRaToR FilTeR
1. Inspect the fuel water separator (Figure 16) every 40
hours. If the fuel water separator requires maintenance
follow steps 2 and 3 below.
Figure 16. Fuel Water Separator Filter
2. Open the drain plug on the fuel water separator (Figure
16) to remove any sediment or water that may have
accumulated in the fuel water separator reservoir.
3. After water and sediment and foreign debris has been
drained from the fuel water separator, reinstall the drain
plug on fuel water separator.
FUel TanK
Unscrew the fuel drain plug on the fuel tank (Figure 17) to
remove water and sediment every 500 hours. If the purity
of the fuel being used is of lesser quality drain the fuel tank
more frequently.
Figure 17. Fuel Tank/Drain Plug
