mq600Td80 TRaSH pUmp• opeRaTion and paRTS manUal — Rev. #11 (10/10/11) — page 15
diMensiOns

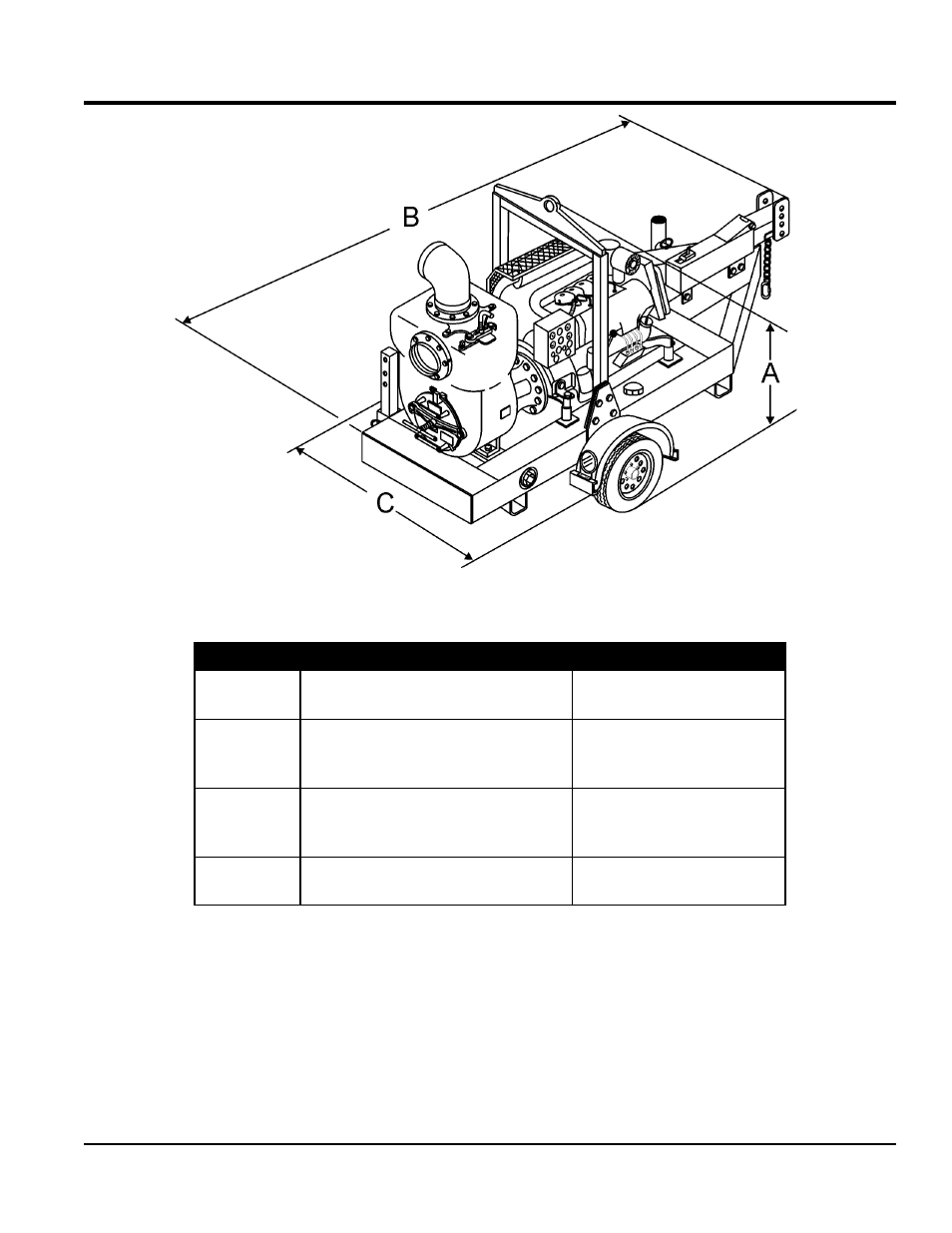

Figure 2. Trailer Dimensions
Table 4. Trailer dimensions
ReFeRenCe
leTTeR
deSCRipTion
dimenSionS
inCHeS (mm)
A
MEASURED FROM TOP OF LIFTING
BALE TO BOTTOM OF TIRE
(HEIGHT).
65.5 INCHES
(1,664 MM)
B
MEASURED FROM TIP OF TRAILER
COUPLER TO REAR OF TRAILER
FRAME (LENGTH).
115 INCHES
(2,921 MM)
C
MEASURED FROM FENDER TO
FENDER (WIDTH)
64 INCHES
(1,626 MM)
