mq600Td80 TRaSH pUmp• opeRaTion and paRTS manUal — Rev. #11 (10/10/11) — page 23
startup
Speed ConTRol leveR
1. Set the Speed Control Lever (Figure 8) to a position
half way between start and stop.

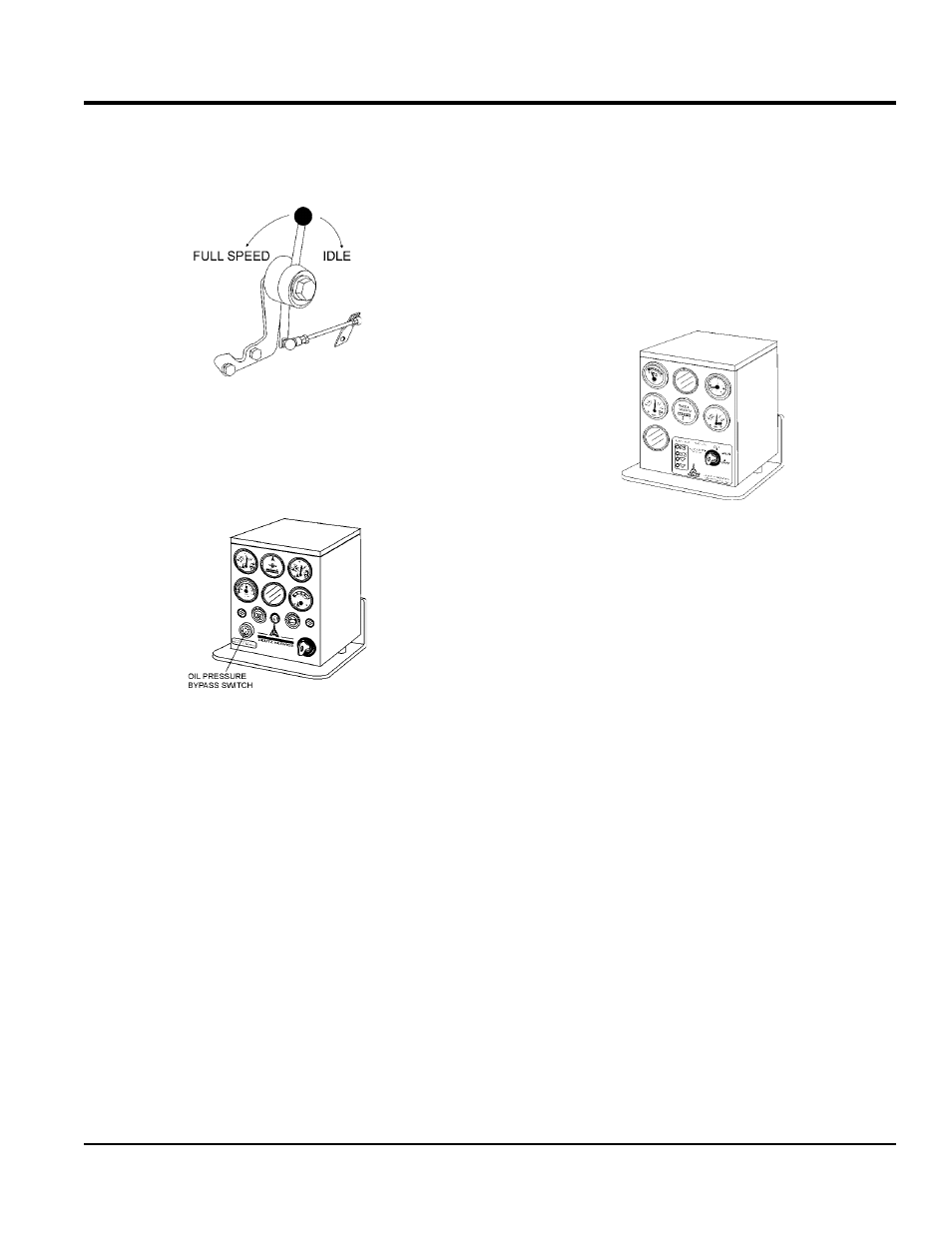

Figure 8. Speed Control Lever
ConTRol box (F4l913 old STyle)
1. Insert ignition key into the ignition switch located on
the control box (Figure 9).
Figure 9. Control Box (Old Style)
2. Turn ignition key to position I and verify that charge
indicator light comes ON.
3. Press and hold the "oil pressure bypass switch".
4. Continue turning the ignition key through positions II
and III.
5. Release ignition key as soon as engine starts, and
verify that ignition key automatically returns back to
position I.
6. Release the "oil pressure bypass switch".
7. Verify charge indicator light goes
OFF immediately
when engine is started.
8. If charge indicator remains lit, increase engine speed
until light goes off. When the charge indicator light goes
off, it can then be assumed that the charging system
is working correctly.
9. If the charge light remains on while the engine is
running, refer to Engine Troubleshooting Table or the
Deutz Engine Repair Manual.
10. Move speed control lever to full speed position for
maximum engine speed (See Fig. 8).
ConTRol box (F4l914 and d914 neW STyle)
1. Insert ignition key into the ignition switch located on
the control box (Figure 10).
Figure 10. Control Box (New Style)
2. Turn ignition key to the RUN position and verify that
voltmeter gauge indicates 12 VDC.
3. Verify that the battery and glow plug status LED
indicator lamps are ON.
4. Continue turning the ignition key from the RUN position
to the START position.
5. Release ignition key as soon as engine starts, and
verify that ignition key automatically returns back to
the RUN position.
6. Verify that the battery charge and glow plug status LED
indicator lamps are OFF.
7. If battery charge indicator lamp remains lit, increase
engine speed until light goes off. When the charge
indicator light goes off, it can then be assumed that
the charging system is working correctly.
8. If the charge light remains on while the engine is
running, refer to Engine Troubleshooting Table or the
Deutz Engine Repair Manual.
9. If the AUX 1 status LED lamp is ON, stop engine and
check for broken or defective V-belt.
10. Move speed control lever to full speed position for
maximum engine speed (See Fig. 8).
