page 14 —mq600Td80 TRaSH pUmp • opeRaTion and paRTS manUal — Rev. #11 (10/10/11)
diMensiOns

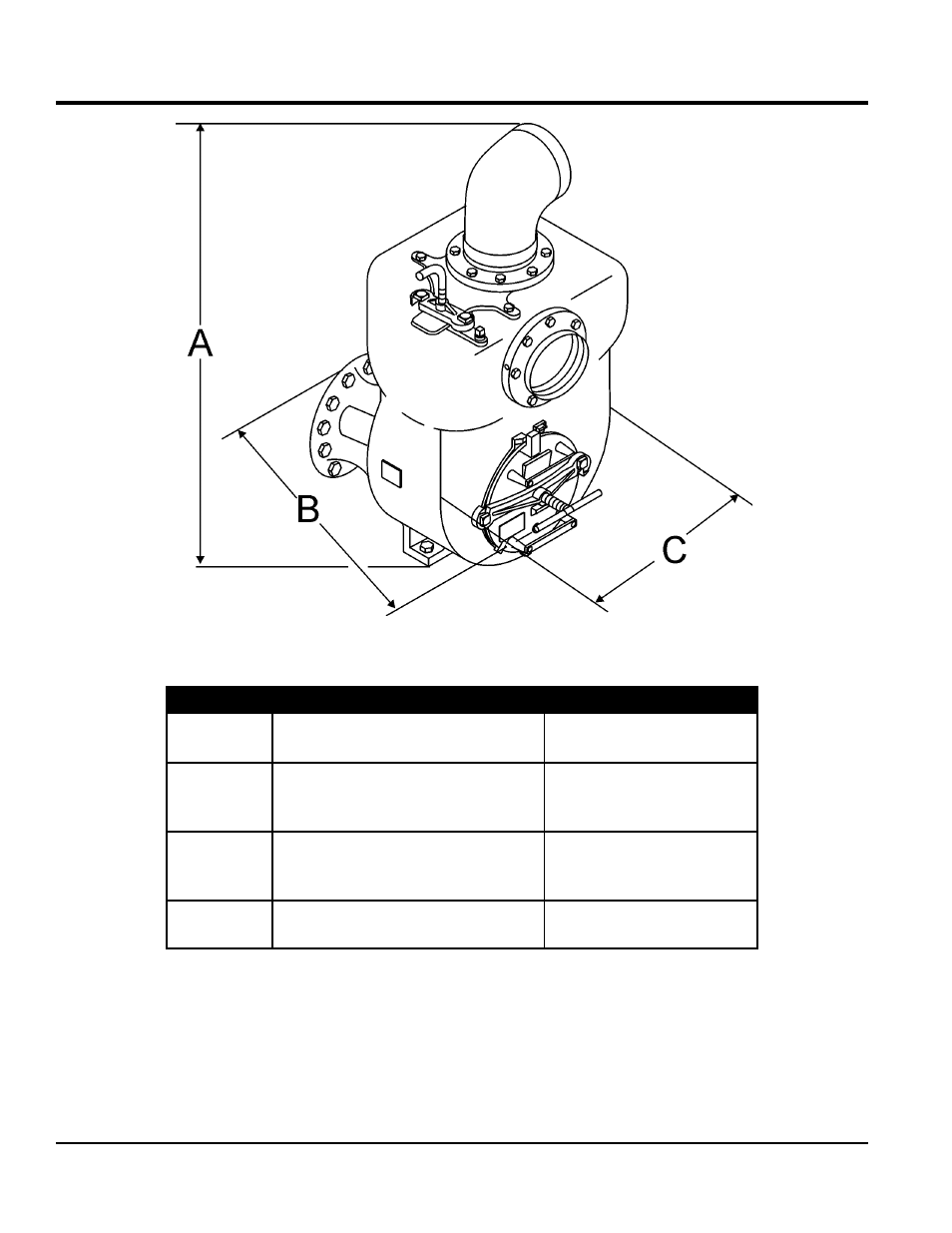

Figure 1. Pump End Dimensions
Table 3. pump end dimensions
ReFeRenCe
leTTeR
deSCRipTion
dimenSionS
inCHeS (mm)
A
MEASURED FROM TOP OF 90
DEGREE ELBOW TO MOUNTING
FEET (HEIGHT).
45.5 INCHES
(1,156 MM)
B
MEASURED FROM TIP OF
INTERMEDIATE HOUSING TO TIP
OF LOCKING HANDLE (DEPTH).
32 INCHES
(813 MM)
C
MEASURED FROM PUMP SIDE-
WALL TO SIDE-WALL (WIDTH).
24.5 INCHES
(622 MM)
