Page 28
MTS Advantage™ Screw Action Grips
Operation
28
How to Change Face Surfaces
To change the face surfaces:
1. Remove the face pin. Gently push it out from the opposite side of the
pin’s chamfered end. The pin’s chamfered end can be on either side of
the grip.
2. Remove the face surfaces from the grips, and slide them straight up
through the grooves of the piston cylinder in which they are positioned.
3. Place the new face surfaces into the grooves and insert the pin from the
opposite side of the chamfered end. Then push the pin in until flush.

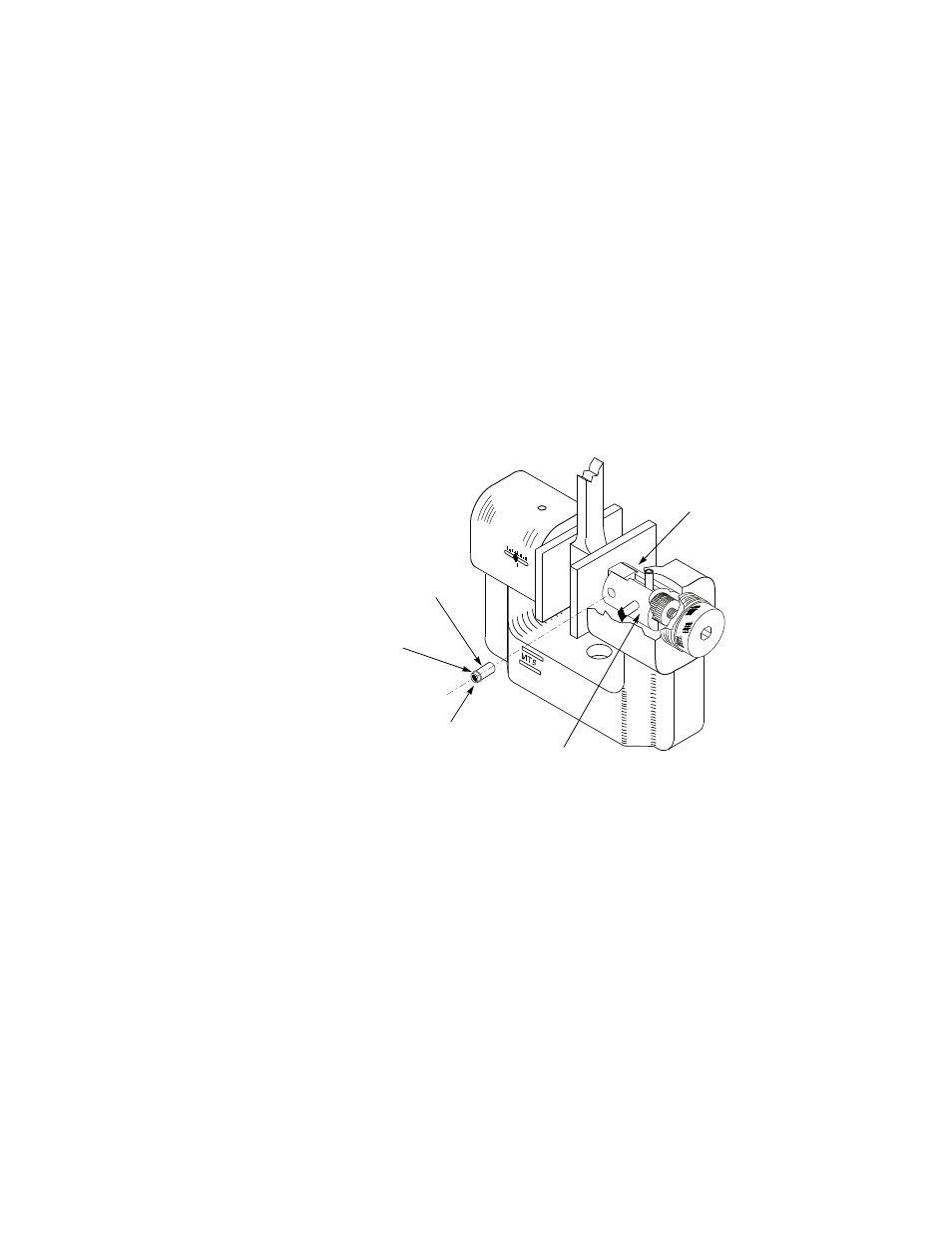

Chamfered
Side
O-ring
Face Pin
Piston
Cylinder
Push from
this side.
