Install grips on electromechanical systems, Install grips on electromechanical systems 19 – MTS Advantage Screw Action Grip User Manual
Page 19
MTS Advantage™ Screw Action Grips
Installation
19
.

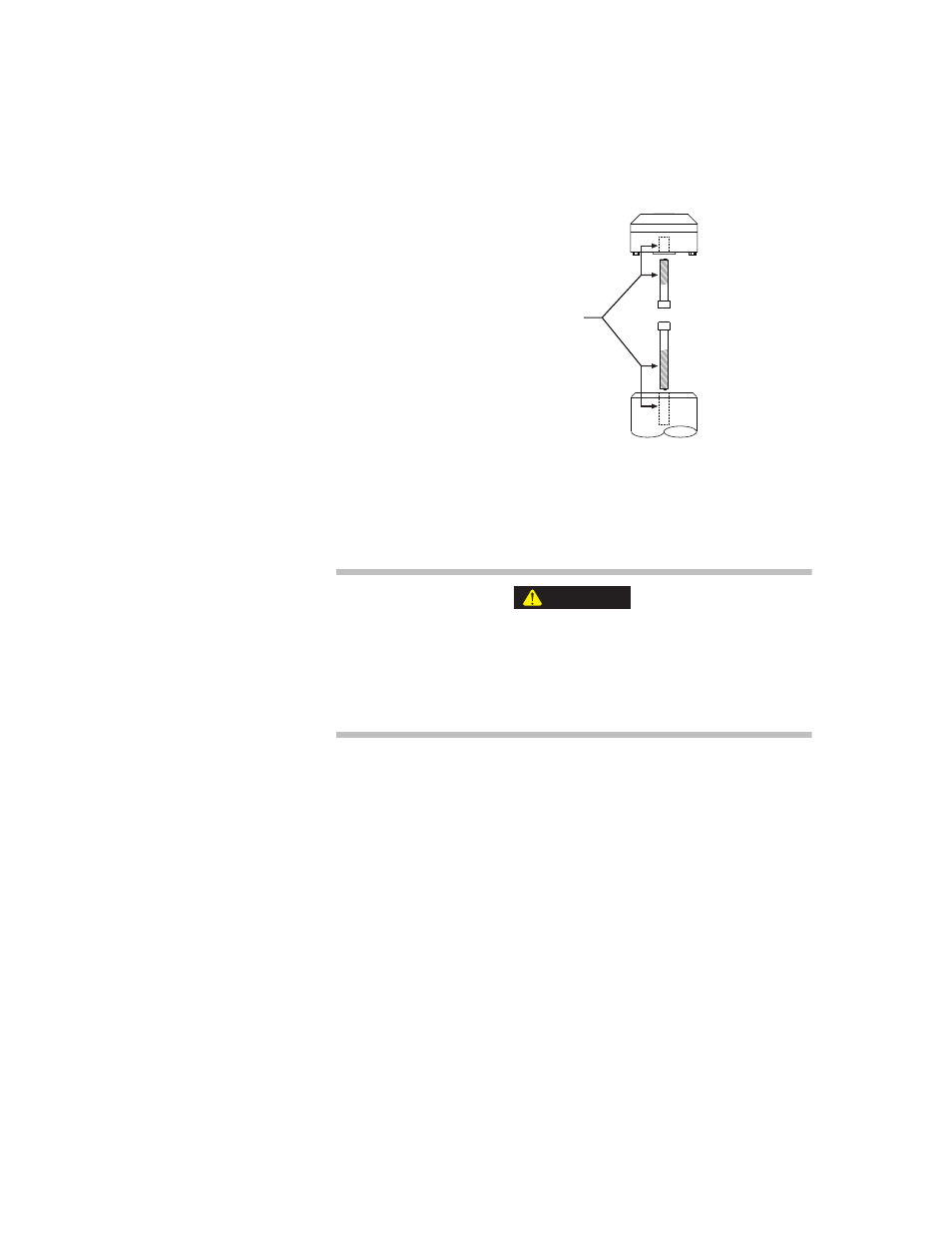

A. Inspect the actuator and force transducer threads. Clean and then
lightly lubricate them with Molykote G-n paste or silicon grease
supplied with the grip assembly.
B. Repeat Step A with the mounting screws.
Installing the grip puts your hands in a crush zone.
Your fingers and hands could get crushed.
Ensure that you have locked the crosshead, and that you have removed
hydraulic pressure from the load unit.
3. Install the grip.
Align the grip with the load unit, and tighten the cap screw. On the
actuator, you might need to use a spanner wrench to keep it from
turning.
Install Grips on Electromechanical Systems
1. Turn the electromechanical toggle switch to the on position. Position
the crosshead as necessary to allow adequate room to install the grips.
2. Clean the mating parts on the grips and the load unit.
Clean and Lubricate
WARNING
