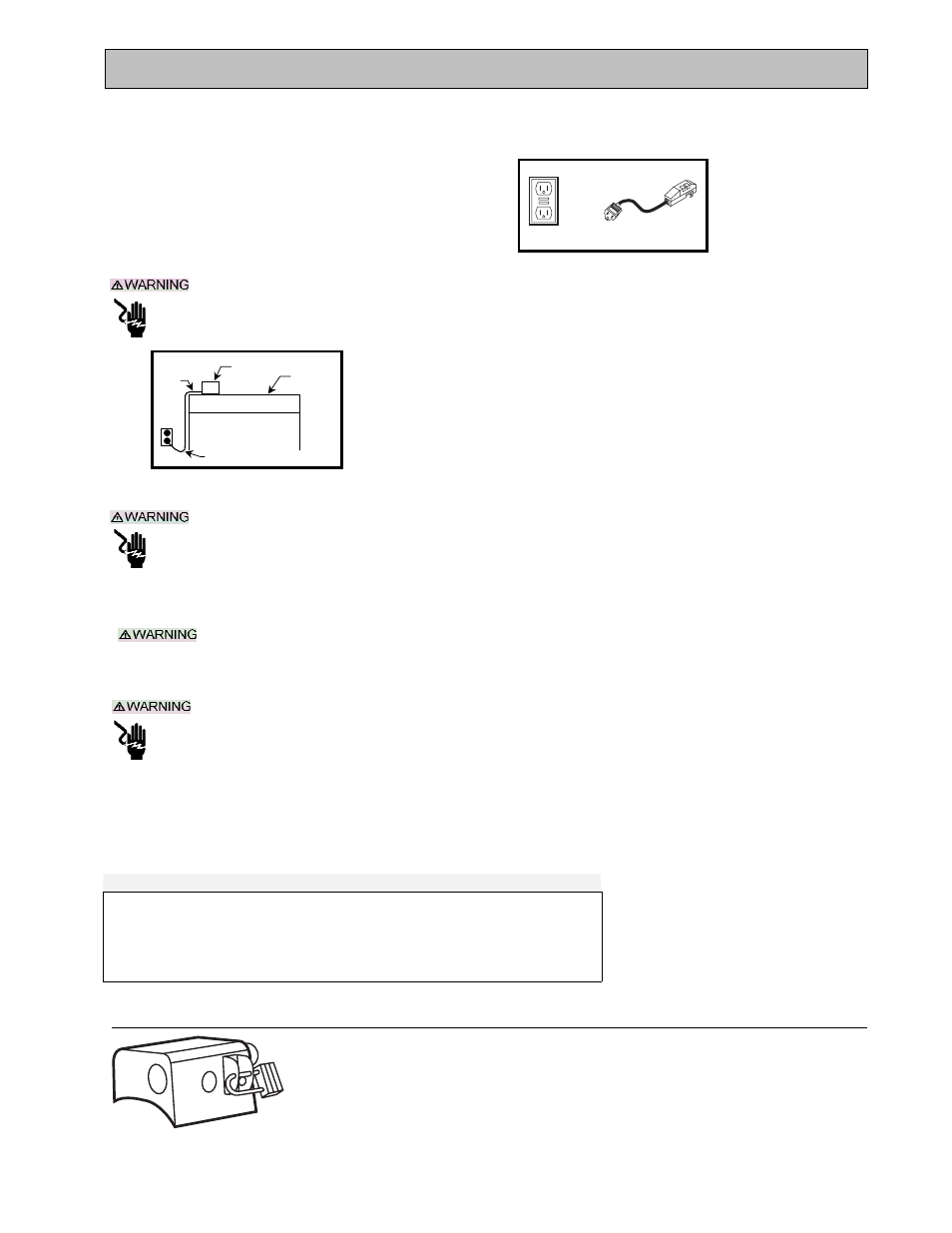

MK-101 Home Depot Rental Revision 04/05, Effective Date April 21, 2005 Page 8
SAFETY
When using the water pump plugged into the water pump receptacle, the saw must be plugged into a properly installed
and grounded GFCI outlet See Sketch A of Figure 2. If a GFCI outlet is not available, MK Diamond has available as an
accessory item, a plug-in GFCI that may be plugged into a properly installed and grounded 3-pole outlet. See Sketch A
of Figure 2.
To avoid the possibility of the appliance plug or receptacle getting wet, position the saw to one side of a
wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A "drip loop,"
shown in Figure 3, should be arranged by the user to properly position the power cord relative to the power
source.
The "drip loop" is that part of the cord below the level of the receptacle, or the
connector, if an extension cord is used. This method of positioning the cord
prevents the travel of water along the power cord and coming in contact with the
receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse
or circuit breaker that supplies power to the tool. Then unplug and examine for
presence of water in the receptacle.
Use only extensions cords that are intended for outdoor use. These extension cords are identified by a
marking "Acceptable for use with outdoor appliances; store indoors while not in use." Use only extension
cords having an electrical rating not less than the rating of the product. Do not use damaged extension
cords. Examine extension cords before using and replace if damaged. Do not abuse extension cords and
do not yank on any cord to disconnect. Keep cords away from heat and sharp edges. Always disconnect
the extension cord from the receptacle before disconnection the product form the extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with
wet hands.
Use of undersize extension cords result in low voltage to the motor that can result in motor burnout and
premature failure. MK Diamond warns that equipment returned to us showing signs of being run in a low
voltage condition, through the use of undersized extension cords will be repaired or replaced totally at the
customers expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in TABLE 1 below.
• Once the proper length is found, move down the column to obtain the correct AWG size required for that
length of extension cord.
Extension Cord Minimum Gage for Length
Volts Total Length of Cord in Feet
120V 25 ft. 50 ft. 100 ft 150 ft.
AWG AWG AWG AWG
14 12 Not Recommended
TABLE 1
LOCK OUT METHOD:
In order to help prevent accidental starting and to help make your workshop “Kidproof,”
this saw is provided with a means to deactivate the functioning of the motor switch. The
switch is equipped with a Lockout plate that can be used with a lock to prevent the
movement of the toggle switch. With the toggle switch unable to move the motor cannot
be turned on. Removing the lock reactivates the switch.
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
FIGURE 3
A B
FIGURE 2
