MAINTENANCE AND TROUBLESHOOTING
°

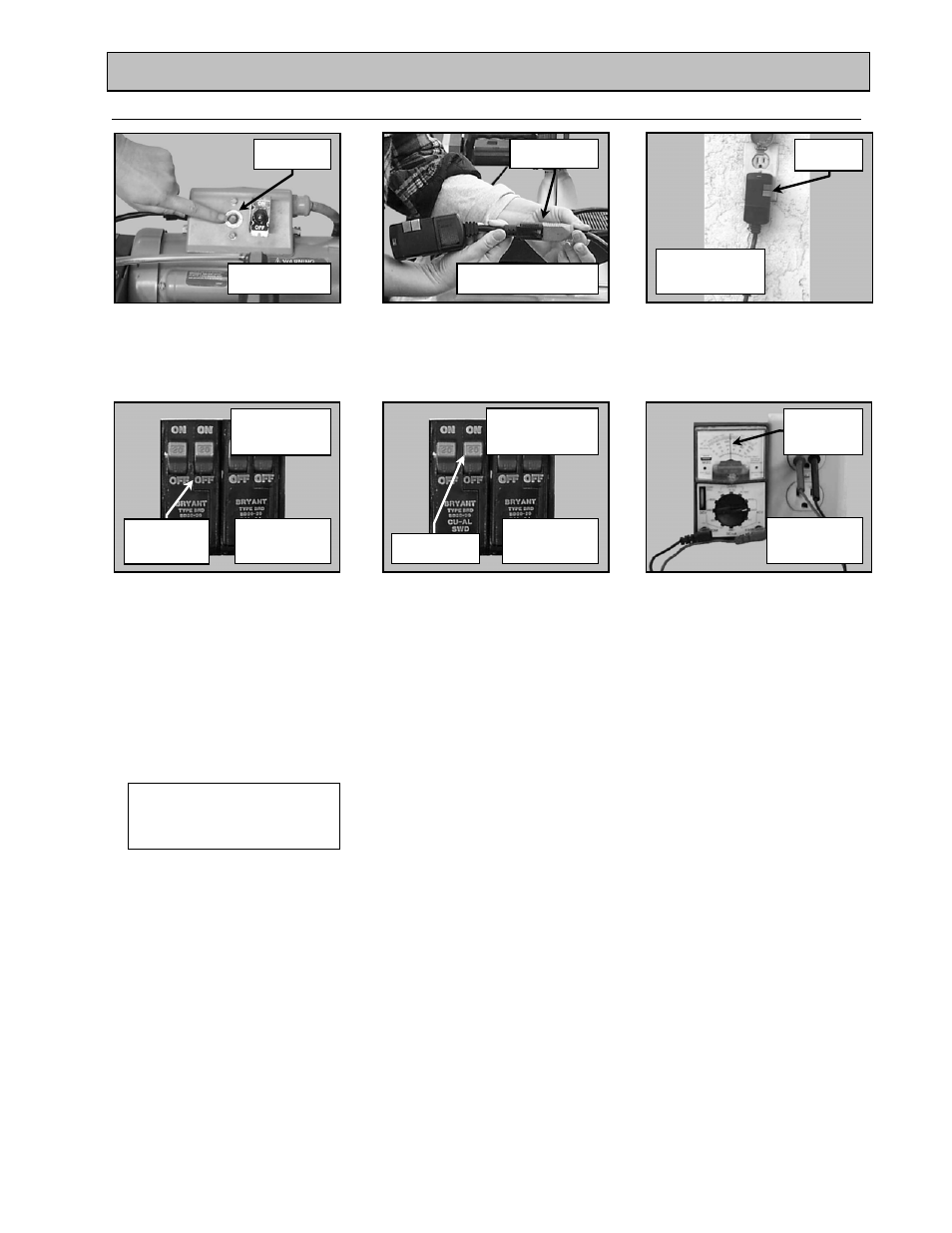

4. Blade Stops Turning:
* A GFCI wall socket is the preferred protective device.
(D)
Verify the circuit breaker is at least
20 amps – if not, move to
a 20-amp circuit
(A)
Allow the motor to cool and
depress motor Overload
Reset Switch
(F)
Check power source voltage is
115V, if it is not 115v –
move to another circuit
(B)
Verify all plugs are fully
installed*
(C)
Check to see if the Ground
Fault Circuit Interrupter (GFCI)
is tripped*
(E)
Verify circuit breaker is not tripped,
if it is tripped – reset the
circuit breaker once
Return to
MK Diamond
for Repair
(G)
Return to MK Diamond
If less than 20
Amps, move saw
to 20 Amp circuit
Overload
Reset Switch
If motor does not
start, go to Step B
Verify all plugs
are connected
If all plugs are connected,
go to Step C
If not tripped, or
If a re-trip occurs,
go to Step D
Reset once
if tripped
If circuit is 20
Amps or greater,
go to Step E
Check Breaker
20 Amps
or greater
If tripped, reset
once, if it trips again,
go to step F
If circuit breaker
not tripped,
go to Step F
Check Breaker
tripped
If circuit breaker
is not tripped,
go to Step F
Check for
correct circuit
voltage
