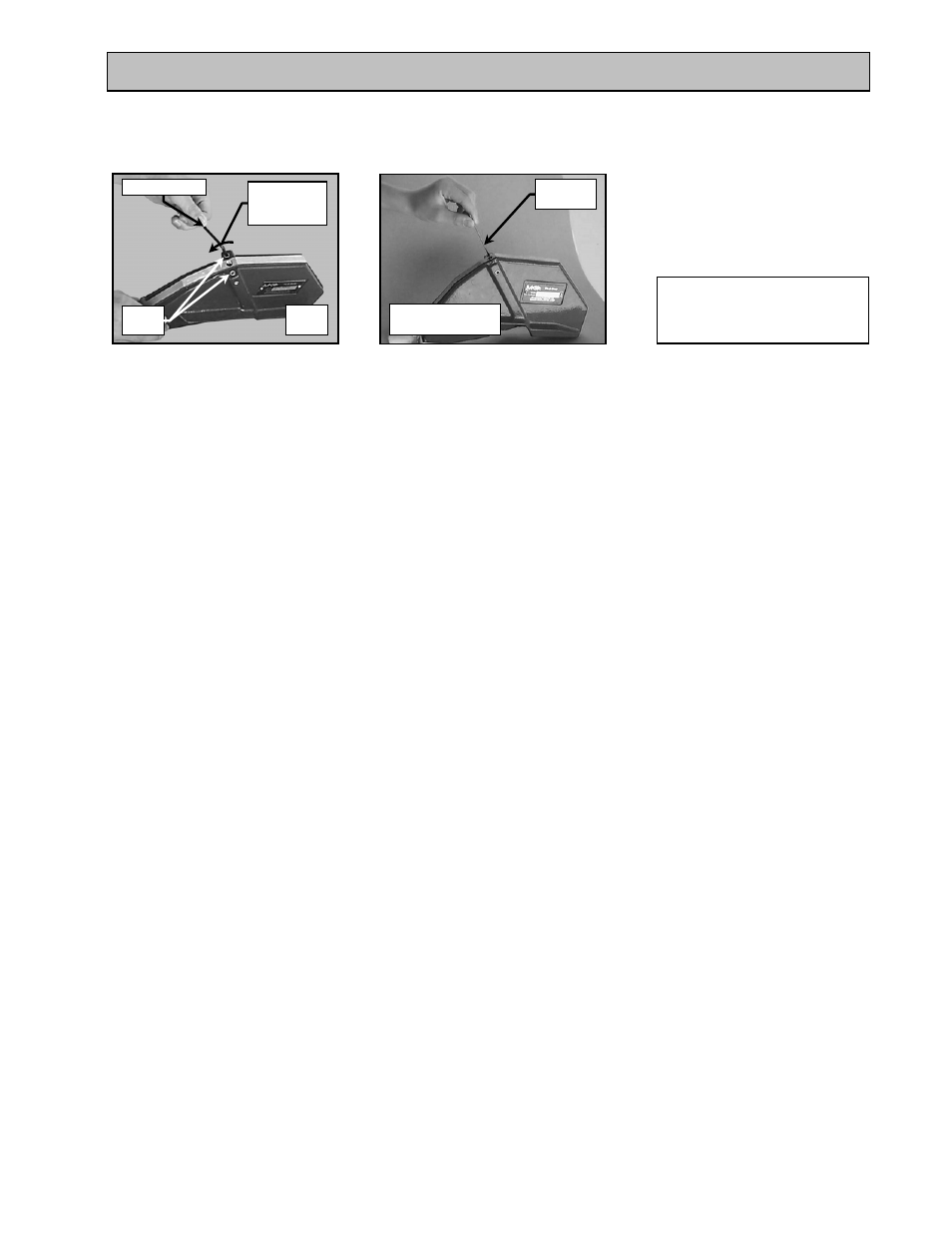

MAINTENANCE AND TROUBLESHOOTING
NOTE: “Rodding” cooling channels is performed by inserting a small wire rod through the cooling inlet on top of the
Blade Guard and directing the rod out through each of the cooling flow tubes located on the underside o the
Blade Guard. The cooling channels should be “rodded” until all ports are free of foreign debris.
(J)
Remove the Cooling Channel
cover screws
(K)
Rod the Cooling Channels
and then recheck flow
Return to
MK Diamond
for Repair
(L)
Return to MK Diamond
Cover
screws
Turn counter-
Clockwise
to loosen
Allan Wrench Rod
Channels
If cooling channels
clear, go to Step L
Go to
Step K
