MK-101 Home Depot Rental Revision 04/05, Effective Date April 21, 2005 Page 20

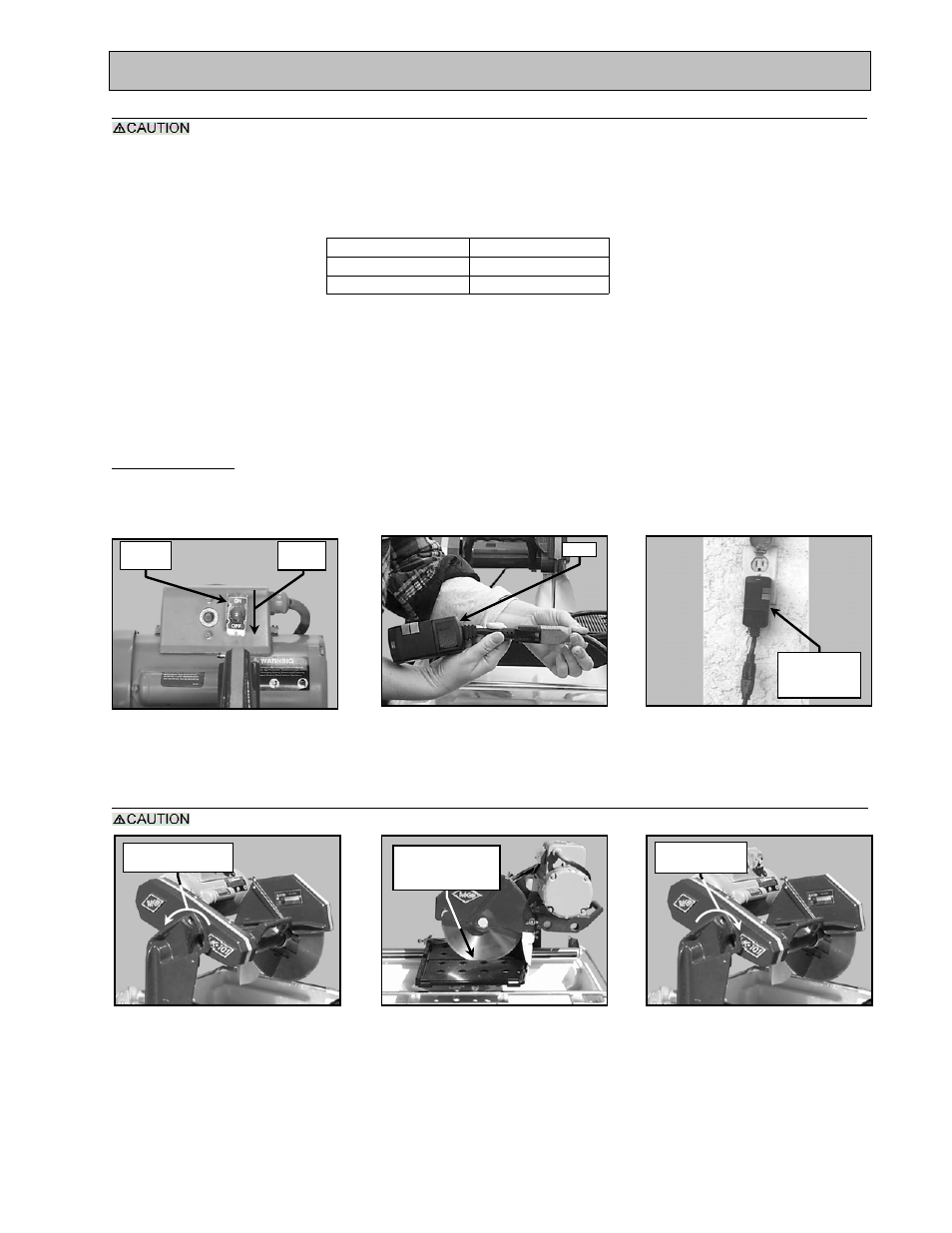

SETUP, ADJUSTMENT and OPERATION
4 MK-101 Setup for Operation:
1. Before powering or starting, check for damage that could prevent this equipment from proper operation or
performing it’s intended function. Check for binding and alignment of moving parts. Check for damaged,
broken, or missing parts.
2. Verify the On/Off switch is in the OFF position.
3. Before connecting the MK-101 to a power supply, be sure the voltage, cycle and phase of the job site
power source meet the requirements of TABLE 3
VOLTAGE: 115v
CYCLE: 60hz
PHASE: 1-phase
TABLE 3
4. If using an extension power cord, made sure, the length and wire gauge correspond to the requirements
listed in TABLE 1 on page 9. An extension power cord that is too small in wire gauge (diameter), or too
long in length, will cause the motor to overheat and could cause premature failure.
5. Use an approved Ground Fault Circuit Interrupter (GFCI)
6. Do not cover the motor vents as this could lead to motor overheating.
NOTE: In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
Portable Generator:
If using a portable generator, ensure the generator meets the following minimum requirements:
5 KW 120/240 volts 41.7/20.8 amps Single Phase
5. Set Cutting Depth:
When loosing the Cutting Head Adjusting Knob, the Cutting Head will pivot down unless held.
* A GFCI wall socket is the preferred protective device.
Off
Position
ON/OFF
Switch
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Plug MK-101 into the GFCI
(C)
Plug the GFCI into the
Power source *
(A)
Loosen Cutting Head
Adjusting Knob
(B)
Set cutting depth approximately
1/4 to 1/2 inch below the surface of
the Movable Cutting Table
(C)
Ensure the Adjusting Knob
is tight
GFCI
GFCI Plugged
Into Power
Source
Turn Counter-
clockwise to loosen
Adjust Cutting
Head to Cut Depth
of Approx ¼” to ½”
Turn Clockwise
to tighten
