MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 33
MAINTENANCE AND TROUBLESHOOTING

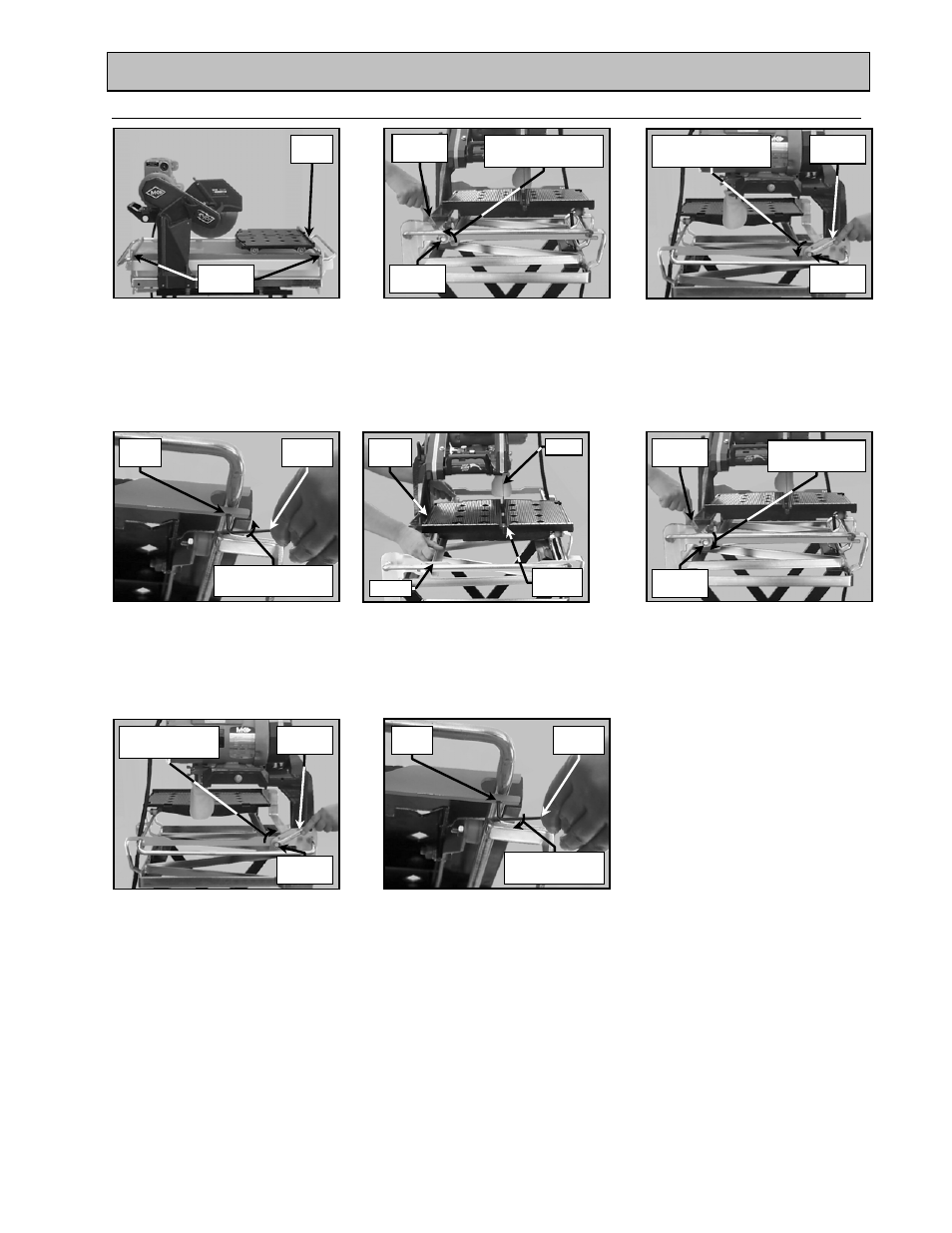

5. Cutting Table Alignment:
(A)
Locate the Frame Retaining
Screws and Allen screw
(B)
Loosen the front Frame
Retaining Screw
(C)
Loosen the back Frame Retaining
Screw
(D)
Loosen the front Frame Allen
Screw
(E)
Adjust the Frame until the
Movable Cutting Table, Cutting
Groove is centered with the
Blade
(F)
Tighten the front Frame Retaining
Screws
(G)
Tighten the back Frame
Retaining Screws
(H)
Tighten the front and back
Frame Allen Screws
Allen
Screw
Retaining
Screw
Retaining
Screw
7/16-inch
wrench
Rotate counter-
clockwise to loosen
Retaining
Screw
7/16-inch
wrench
Allen
Wrench
Allen
Screw
Rotate counter-
clockwise to loosen
Rotate counter-
clockwise to loosen
Cutting
Table
Cutting
Groove Frame
Blade
Retaining
Screw
7/16-inch
wrench
Rotate clockwise
to loosen
Retaining
Screw
7/16-inch
wrench
Rotate clockwise
to loosen
Allen
Wrench
Allen
Screw
Rotate clockwise
to loosen
