MAINTENANCE AND TROUBLESHOOTING

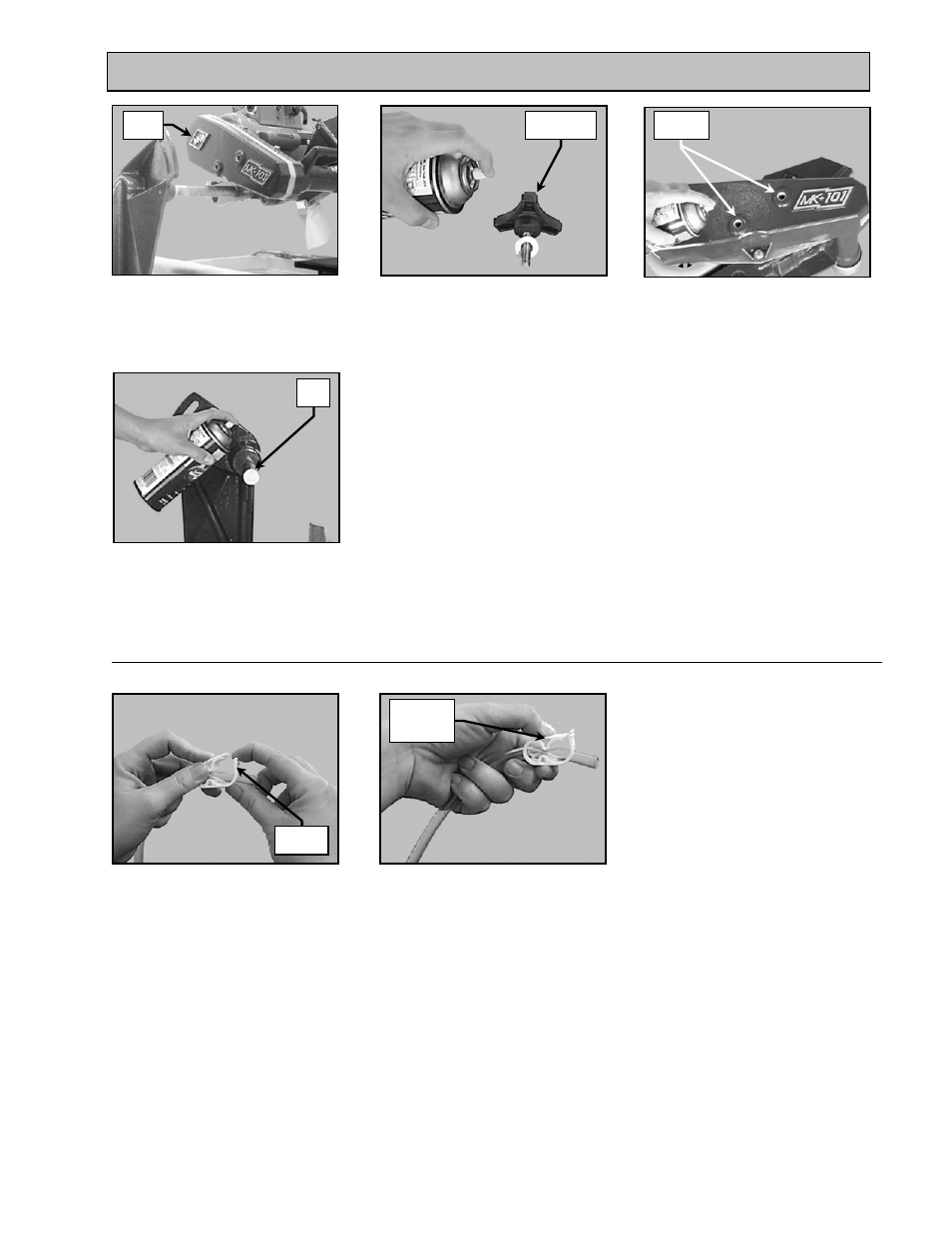

4. Flow Adjustment:

NOTE: If flow to the diamond blade requires adjustment, perform the following actions.

(J)

Lubricate the Cutting Head

Adjustment Knob

(I)

Remove the Cutting Head (See

Adjusting the Cutting Head)

(L)

Lubricate the Cutting Head

Pivot Shaft

(K)

Lubricate the Cutting Head

Adjustment Knob retaining holes

(D)

Increase cooling flow by

releasing the Flow Adjusting

Clamp

(E)

Reduce cooling flow by

Pressing down on the Flow

Adjusting Clamp

Cutting

Head

Adjustment

Knob

Retaining

Holes

Pivot

Shaft

Pull Tab

to loosen

Press Tab
to Restrict

Flow
