MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 21
SETUP, ADJUSTMENT and OPERATION

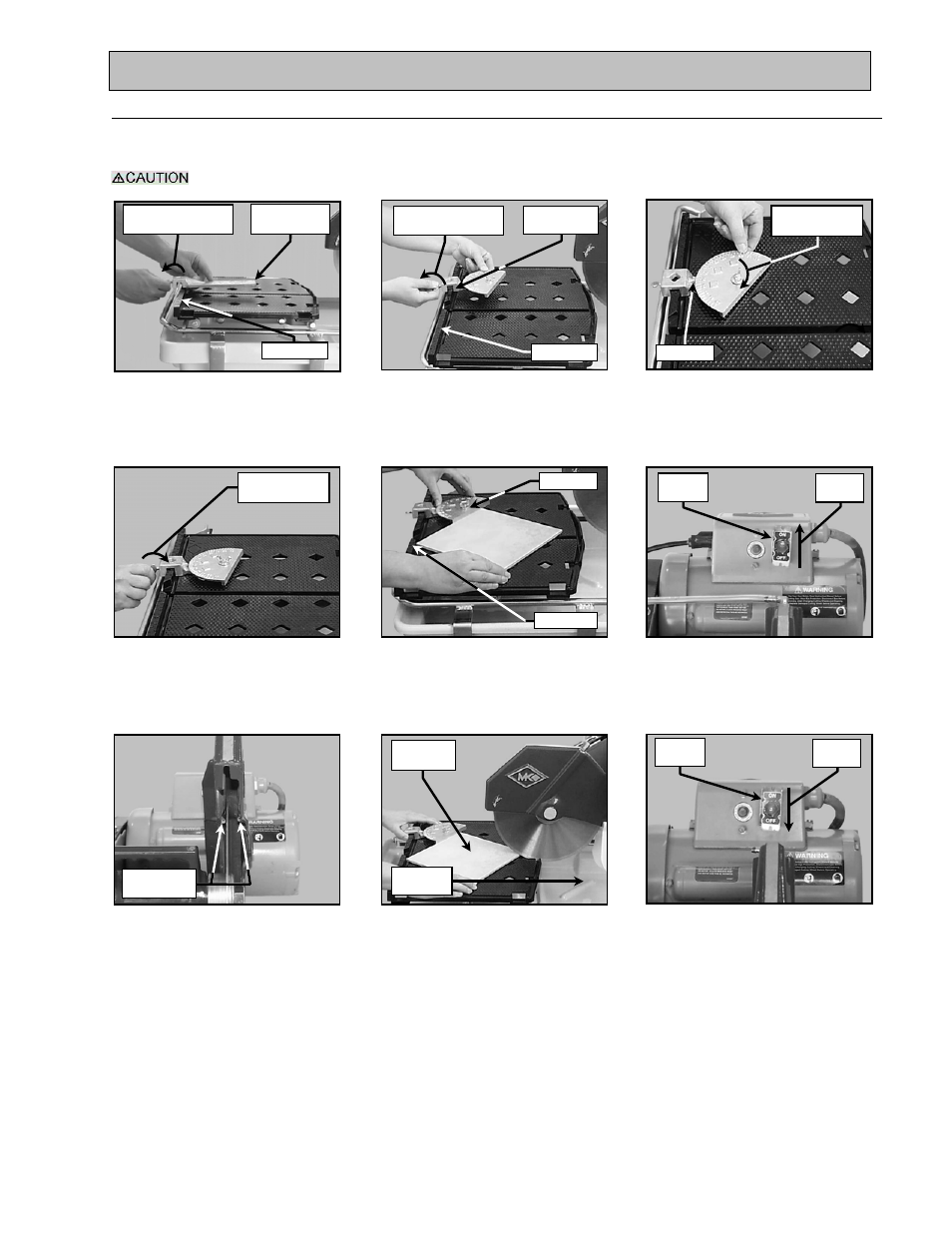

4. Off-angle Cutting:
NOTE: To cut angles other than 45º angles or Miters, a 90º Protractor (MK Diamond Part No. 134569-MK)
should be used.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(D)
Position the tile against the 90º
Protractor and the Ruler/Stop
(D)
Position the 90º Protractor
and tighten the
retaining thumbscrew
(A)
Remove the Adjustable Cutting
Guide
(E)
Turn the motor ON
(F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(H)
Turn the motor OFF when
work is complete
(B)
Place the 90º Protractor on
the Ruler/Stop
(C)
Set the desired angle and
tighten the thumbscrew
(G)
Perform the cut
Turn counter-
clockwise to loosen
Align Guide
to Ruler/Stop
Ruler/Stop Set Angle
Turn Clockwise
to tighten
Turn Clockwise
to tighten
Protractor
Ruler/Stop
Hold Work
in Position
Direction
of Cut
