MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 23
SETUP, ADJUSTMENT and OPERATION

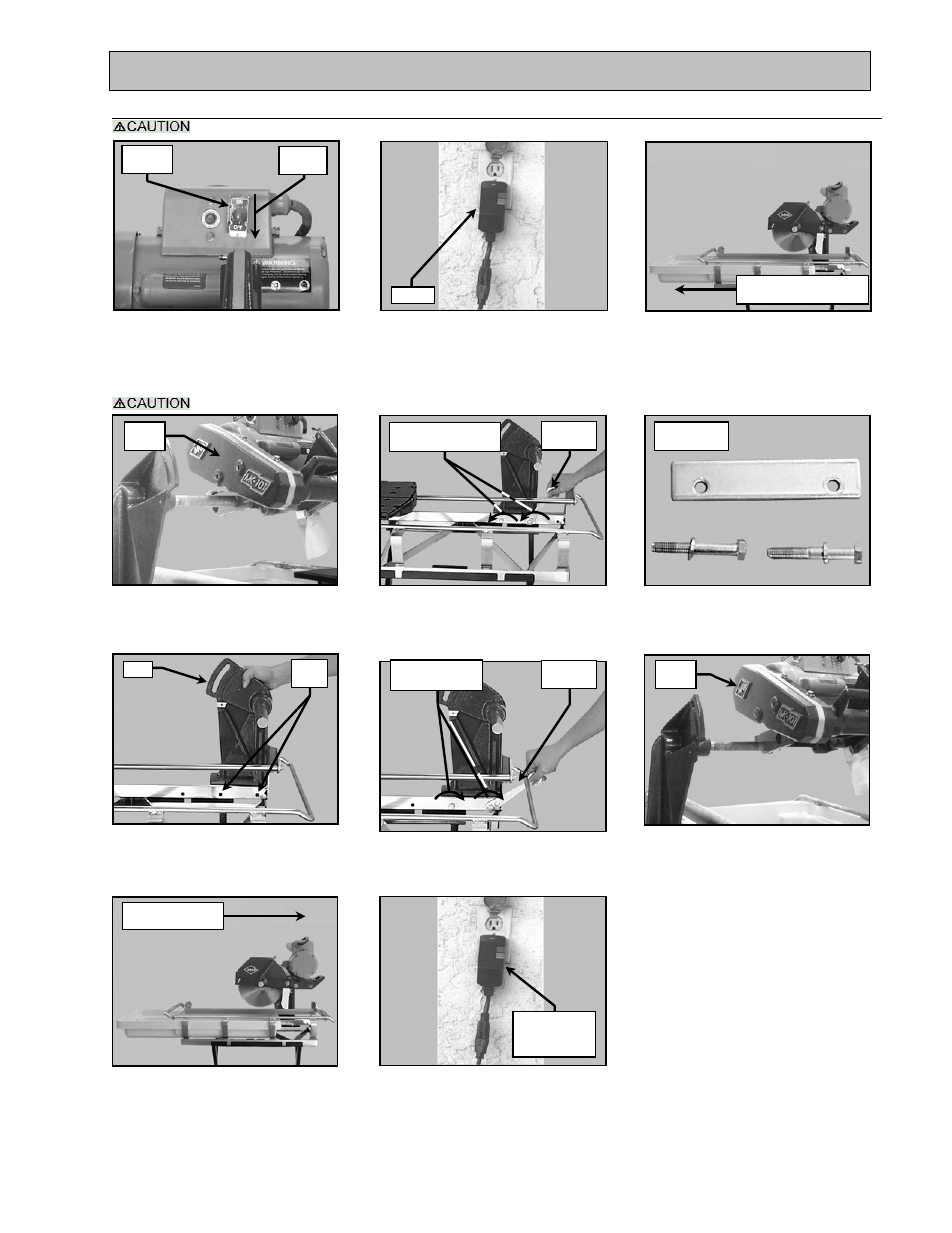

6. Adjusting the Post for Maximum Cutting Length:
The Cutting Head and Post are heavy! Use care when changing the position of the Cutting Head.
Hold the Post when removing the Post Support Plate.
* A GFCI wall socket is the preferred protective device.
Off
Position
ON/OFF
Switch
(I)
Install the Cutting Head (See
Adjusting the Cutting Head
Cutting
Head
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Unplug the GFCI from the
power source*
(D)
Remove the Cutting Head (See
Adjusting the Cutting Head
(C)
Remove Water Basin
(E)
Loosen the Post Support Plate
and retaining bolts
(F)
Remove the Post Support Plate
and retaining bolts
(G)
Relocate the Post to the rear
Post retaining holes
(H)
Install and tighten the Post
Support Plate and retaining bolts
(J)
Install the Water Basin
(K)
Plug the GFCI into the
power source*
Post Support
Plate
Slide Water Basin out
of the front of the Saw Unplug
Cutting
Head
Turn counter-
clockwise to loosen
9/16-inch
Wrench
Post Rear
Holes
Turn Clockwise
to tighten
9/16-inch
Wrench
Slide Water Basin
back in the Saw
GFCI Plugged
Into Power
Source
