MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 12

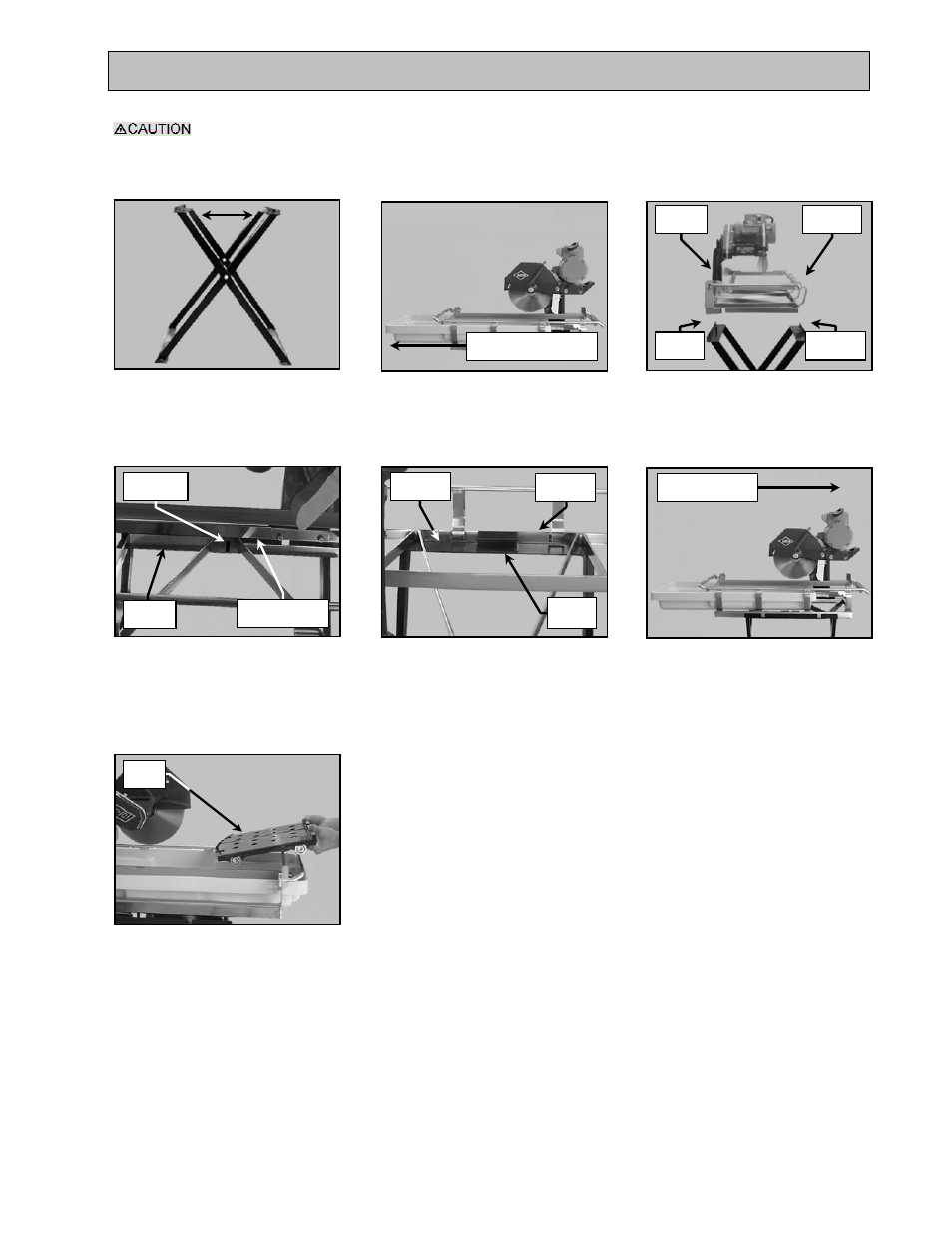

UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
UNIVERSAL STAND:
The MK-101 TRACKER weighs approximately one hundred and seven (107) pounds; follow the
guidelines for transport in the TRANSPORT section, when placing it on the stand.
Note: If using the MK Diamond, Universal Stand, follow the following steps.
(A)
Open the Universal Stand
and place on flat surface
(B)
Remove Water Basin
(C)
Orient the Saw
to the Stand
(D)
Seat Left (Post) Side of saw
onto stand between stand
Orientation Pin
(E)
Seat Right Side of saw onto
stand between stand and
Register Angle
(F)
Reinstall the Water Basin
Slide Water Basin
back in the Saw
Left side
of stand
Left Side
of Saw
Right Side
of Saw
Right Side
of Stand
Orientation
Pin
Seat Left (Post)
Side of Saw
Left Side
of Stand
Right Side
of Stand
Right Side
of Saw
Register
Angle
Slide Water Basin out
of the front of the Saw
(G)
Install the Cutting Table
(See Cutting Table Installation)
Cutting
Table
