MK-101 TRACKER Revision 06/05, Effective Date June 07, 2005 Page 30

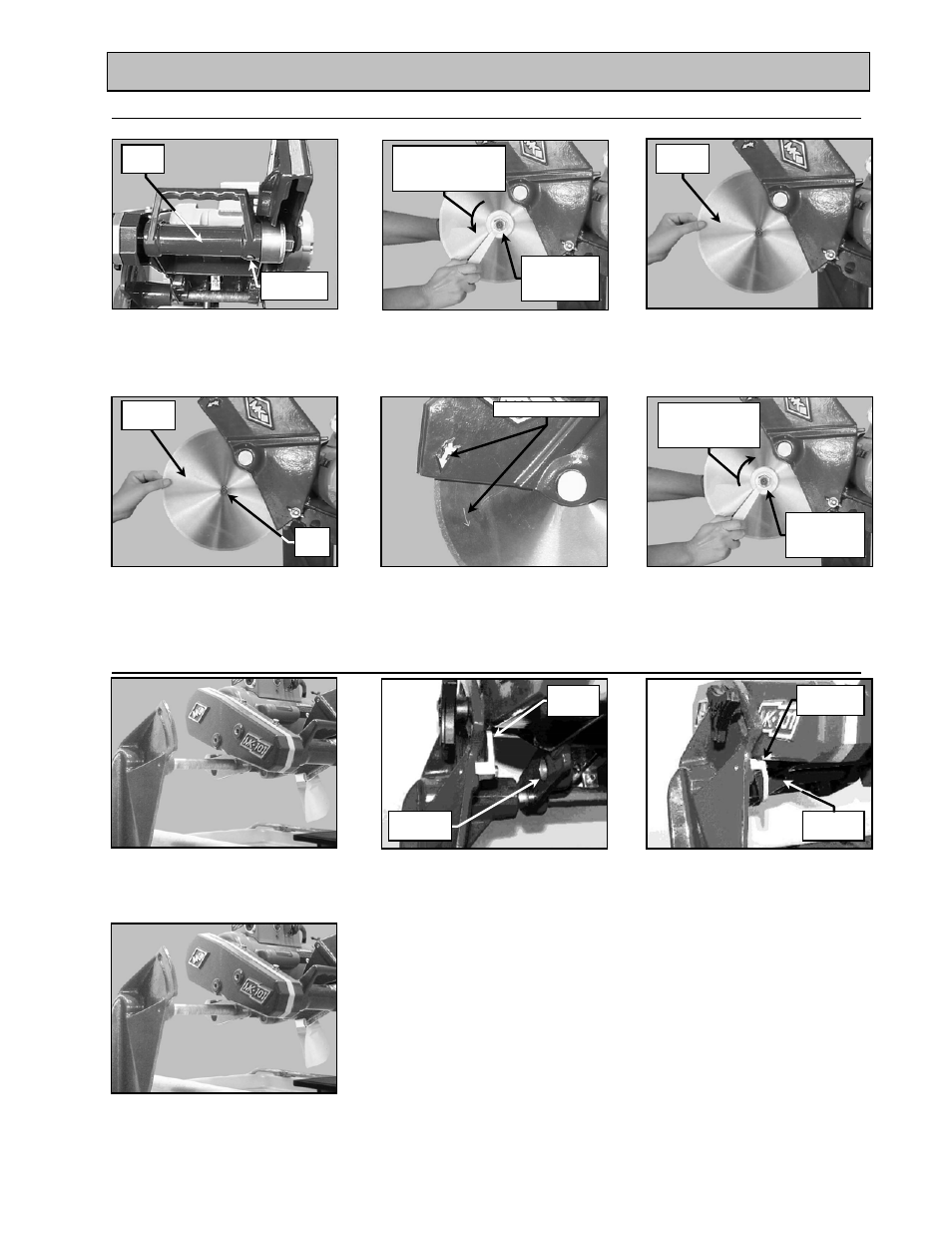

MAINTENANCE AND TROUBLESHOOTING
2. Diamond Blade Change-out:
NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.
3. Cutting Head Stop Installation:
(C)
Remove the Diamond Blade
(E)
Verify the Blade is seated on
the Blade Shaft and direction
of rotation is correct
Diamond
Blade
Rotation Direction
(D)
Install the Diamond Blade
onto Blade Shaft
Diamond
Blade
(F)
Install Retaining Nut and Outer
Flange, depress and hold the Shaft
Lock pushbutton and tighten
Retaining
Nut and
Outer Flange
Rotate Blade
Wrench clockwise
to tighten
(A)
Locate the Shaft Lock
pushbutton on the underside
of the Cutting Head
Cutting
Head
Shaft Lock
Pushbutton
(B)
Remove Retaining Nut and Outer
Flange, depress and hold the
Shaft Lock pushbutton and loosen
Retaining
Nut and
Outer Flange
Rotate Blade
Wrench counter-
clockwise to loosen
Blade
Shaft
(A)
Remove the Cutting Head
(See Adjusting the Cutting Head)
(C)
Install Head Stop DOWN, when
the Cutting Head is installed on
the forward Pivot Hole
(B)
Install Head Stop UP, when the
Cutting Head is installed on the
rear Pivot Hole
(D)
Reinstall the Cutting Head
(See Adjusting the Cutting Head)
Rear
Pivot Hole
Blade
Stop Up
Blade
Stop Down
Front
Pivot Hole
