36

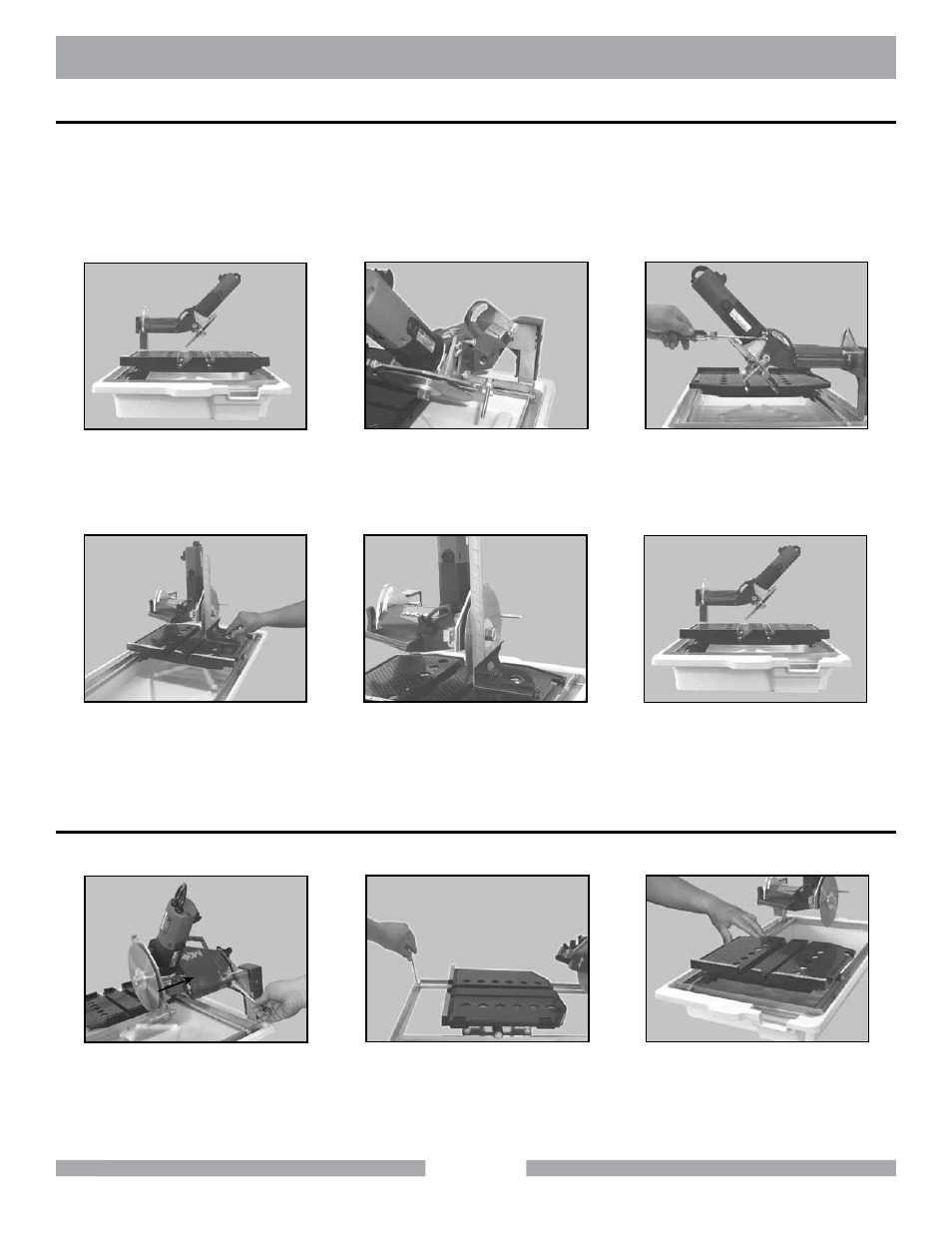

ALIGNMENT SCREW, 90° VERIFICATION
If the blade is misaligned following this alignment procedure, return the saw to MK Diamond
for repair. The Diamond Blade must be removed and reinstalled when removing the Blade
Guard.
90º- alignment verification will ensure that the blade will cut the tile straight up and down and
not at an angle.
(B)
Locate the 90°
Adjustment Screw
(A)
Position the Cutting Head
to the 45° Cutting Angle
(C)
Rotate 90° Adjustment Screw
clockwise or counter-clockwise
to realign Cutting Head
(E)
Verify the Diamond Blade
is Square to the Movable
Cutting Table
(D)
Position the Square on
Movable Cutting Table
against the Diamond Blade
(F)
Repeat Steps A to E as
necessary to align the
Cutting Head
MK-370EXP SAW TROUBLESHOOTING
HORIzONTAL ROUGH ALIGNMENT
The Horizontal alignment will ensure that straight cuts (or Rip Cuts) are made.
(B)
Loosen front and rear
Guide Bar Retaining Bolts
(A)
Position Cutting Head
to normal Cut Depth
(C)
Move Guide Rail and Table
until the Blade is centered in
Cutting Groove
NOTES:
