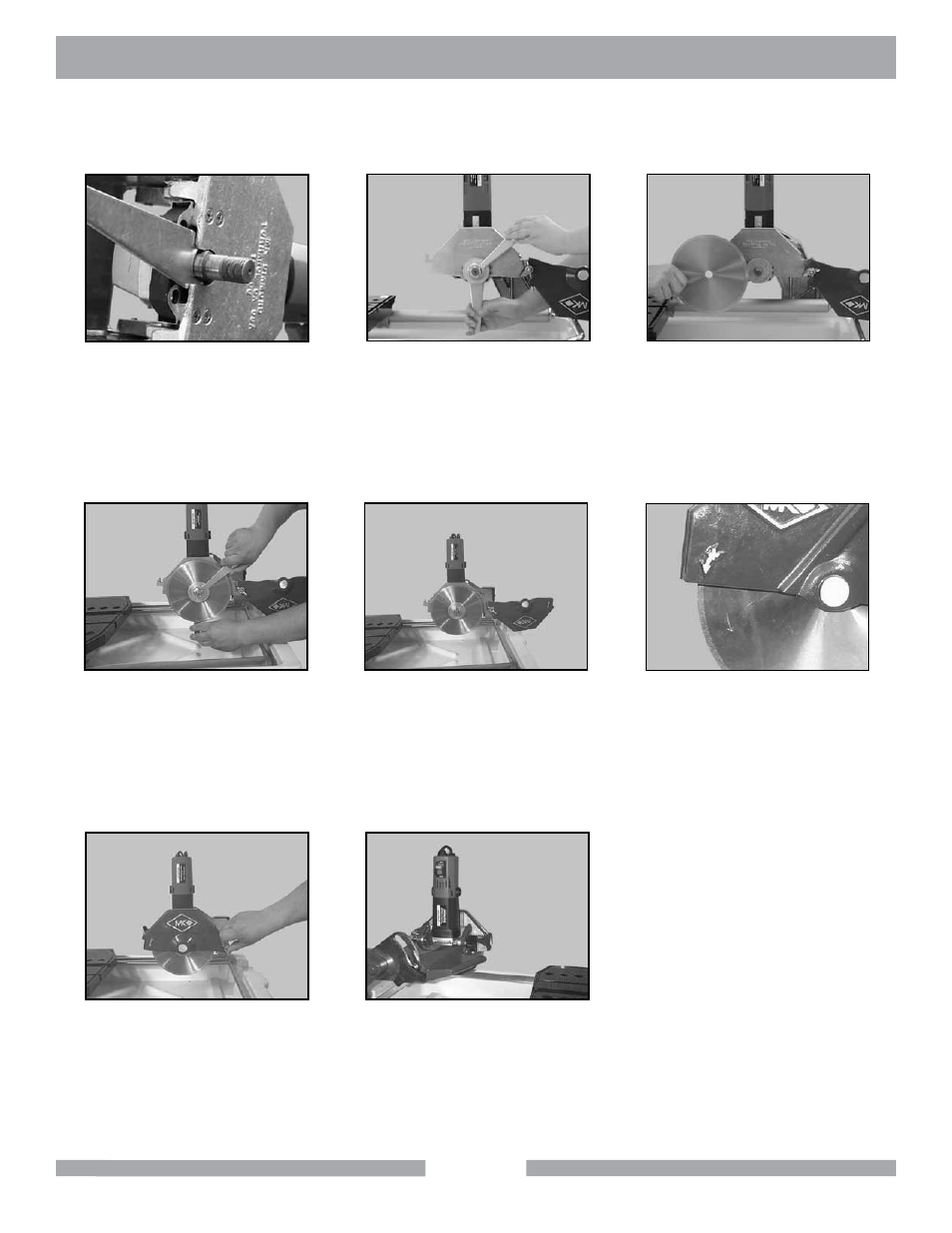

(E)

Using the Blade and Shaft

Wrenches, loosen and

remove the Retaining Nut

and Outer Flange

(D)

Place the Shaft Wrench

between the Inner Blade

Guard and the Motor and

onto the Motor Shaft

(F)

Install Diamond Blade

onto Blade Shaft

(H)

Close the Blade Guard

(G)

Install the Retaining Nut

and Outer Flange and then

tighten using the Blade and

Shaft Wrenches

(I)

Verify the Blade is seated

on the Blade Shaft and

direction of rotation is

correct

(K)

Tighten the Blade Guard,

Retaining Knob

(J)

Tighten the Blade Guard

Retaining Wing nut

MK-370EXP SAW

ASSEMBLY
