Card File Handler
User interface
Archive tree
10 1.1 EN
L
X
Tip!
If you position the mouse pointer for a short time over an icon, a "tool tip" will be
indicated with information about the corresponding function.

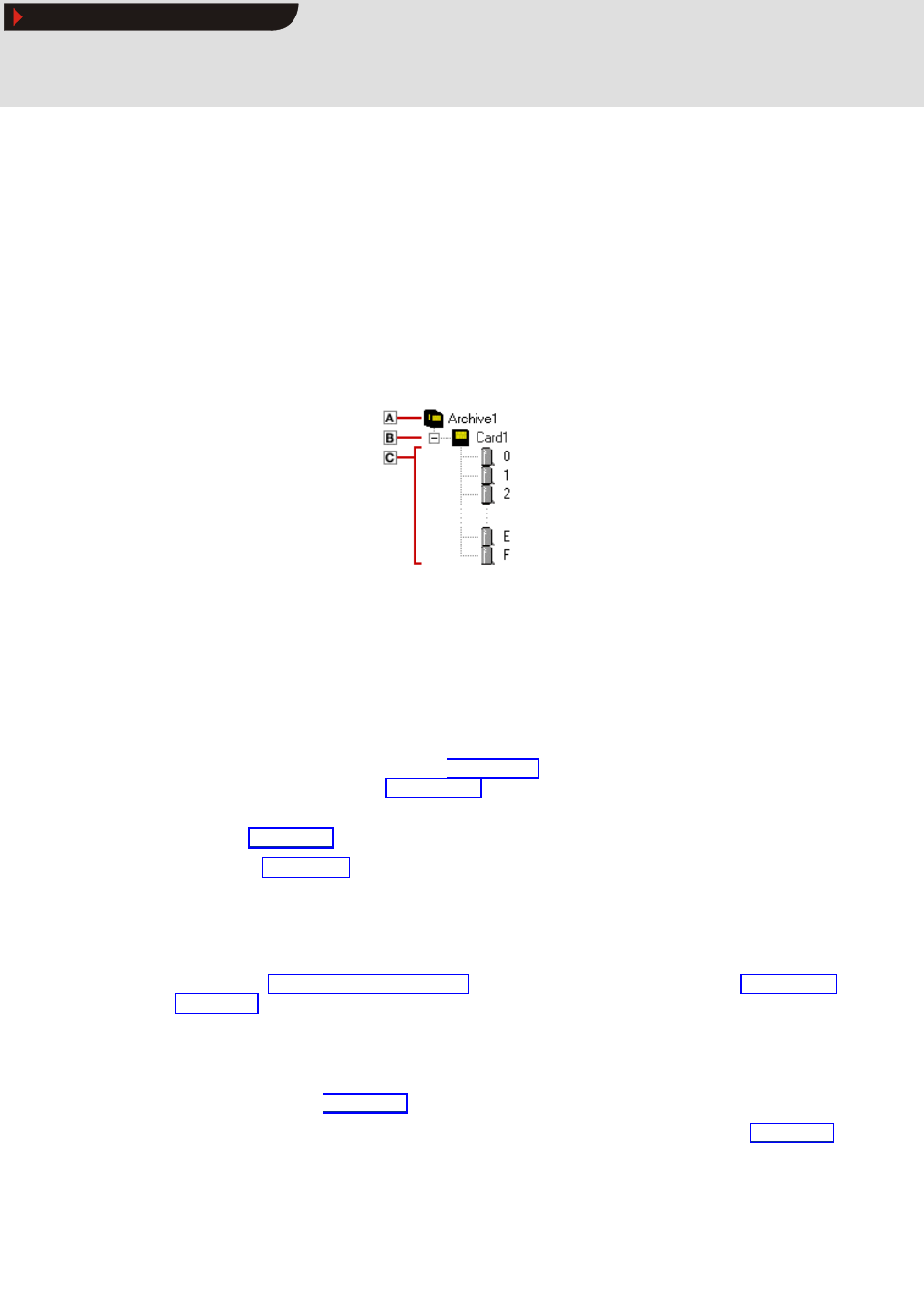

2.4 Archive tree
The archive tree of the Card File Handler contains a hierarchical tree structure similar to the
folders of the Windows Explorer, which allows quick access to all cards and drive sets of an
archive:
Archive
C Each archive can contain one or several cards.
C You can create an unlimited number of archives, but always only open one archive in
the Card File Handler.
Card
C Each archive card represents one SmartMedia card and can thus - just like the
SmartMedia card for the Card module - contain 16 drive sets called "0" ... "F" in the
default setting.
C In the Dialog area you can enter a comment (option) on the selected card.
C When a Card reader is connected to your PC, you can transfer the drive sets of a
SmartMedia card to an archive card and vice versa:
Drive set
C Each drive set contains all data required by the target system, i.e. the program created
with the Drive PLC Developer Studio, the parameter data generated with Global Drive
Control (option) and additional user data (option).
C In the default setting, the 16 drive sets of each card are called "0" ... "F". As an option,
you can add another name to this designation.
C If you select a drive set from the archive tree the corresponding settings will be
displayed in the Dialog area . It is possible to change the settings in the dialog area.
C Just like for a card, you can enter a comment on the selected drive set in the Dialog area
(option).
Archive
Card
Drive sets
