EMF2179IB communication module (DeviceNet)
Commissioning
Possible settings via DIP switch
5
5.5
5.5.1

5.5-3 EDSDEN EN 02/2006
OPEN
ON
OFF
Address Bd
1 2 4 3 5 6 7 8 9 10

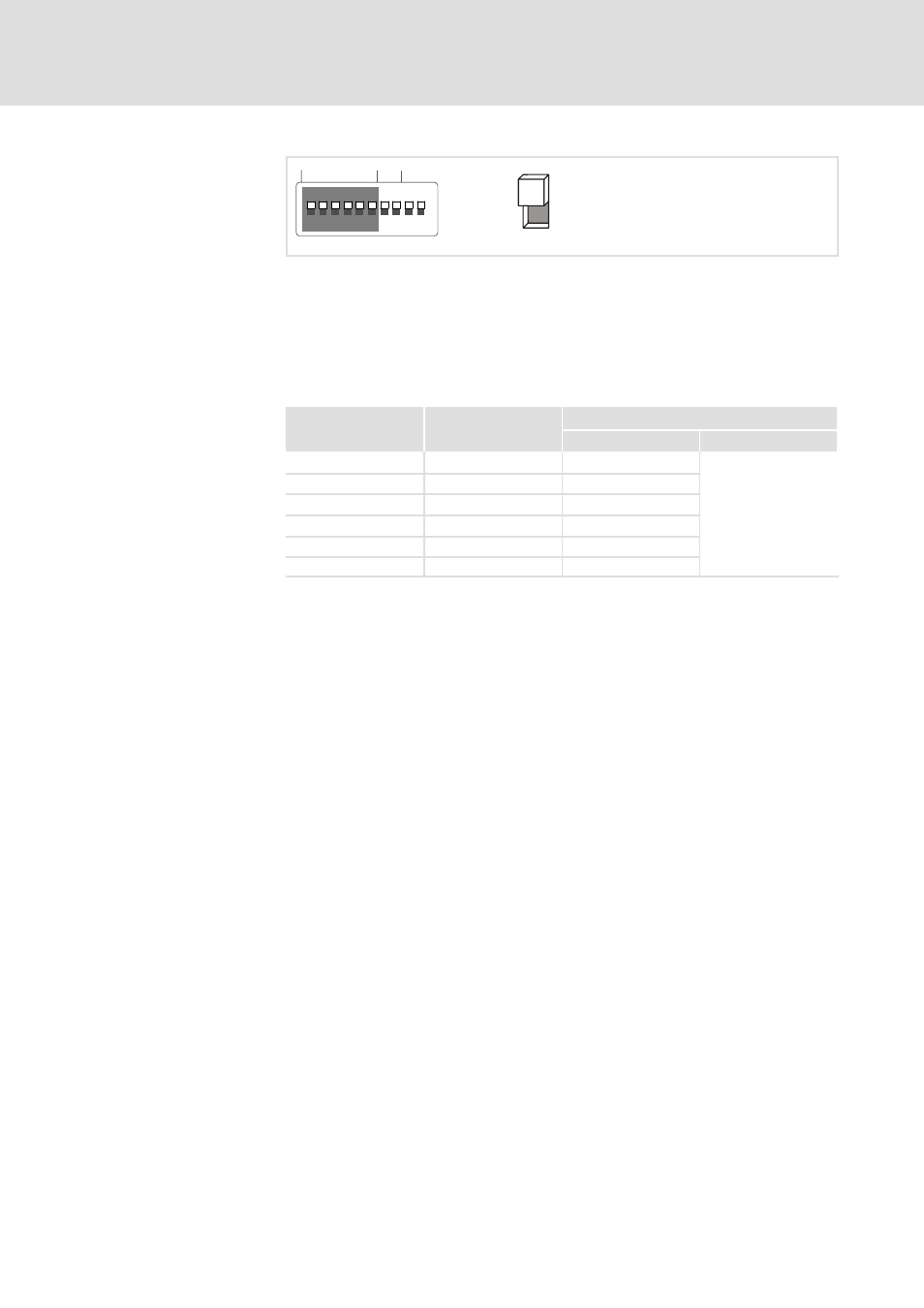

Fig. 5.5-2 Address assignment via DIP switch
The address (decimal number) is calculated by inserting the positions of
switches S1 to S6 (’0’ = OFF and ’1’ = ON) into the following equation.
Address
dec
= S6 · 2 0 + S5 · 2 1 + S4 · 2 2 + S3 · 2 3 + S2 · 2 4 + S1 · 2 5
The equation can also be used to calculate the valency of a switch. The sum
of valencies results in the node address to be set:
Switch Valency
Example
Switch position Node address
S1 32 ON
32 + 16+ 8 = 56
S2 16 ON
S3 8 ON
S4 4 OFF
S5 2 OFF
S6 1 OFF
Setting of the device address
