EMF2179IB communication module (DeviceNet)
Installation
Communication connection
5
5.4
5.4.4

5.4-9 EDSDEN EN 02/2006

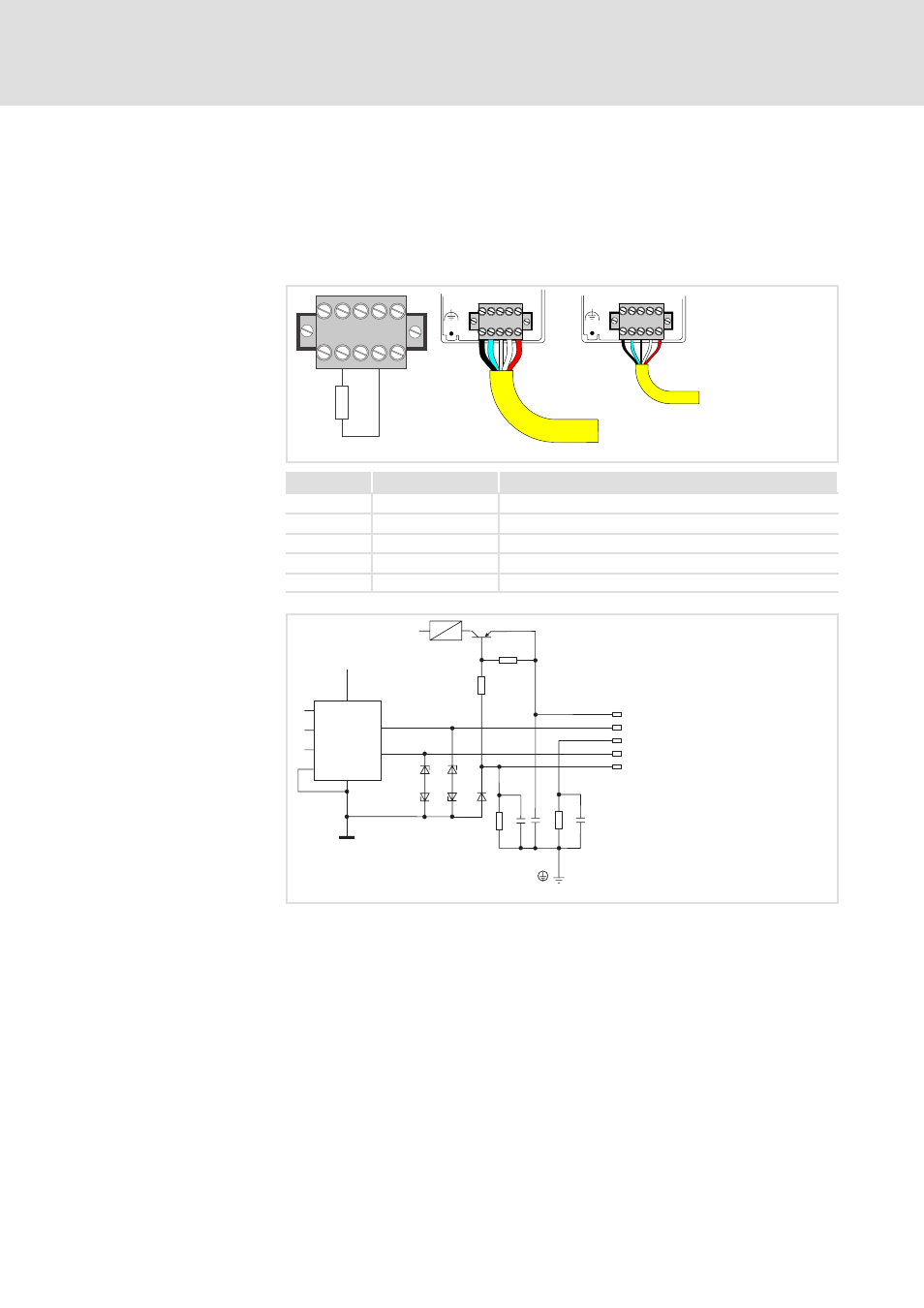

5.4.4 Communication connection
Use the 5-pole plug connector with double screw connection to connect the
communication module to the bus.
The assignment of the plug connector and the cable colour used according
to the DeviceNet Specification are listed in the table.
qÜáÅâ
120R
V-
CAN_L SHLD
V+
CAN_H
qÜáå
Designation Cable colour Explanation
V- Black Reference for external voltage supply
CAN_L Blue Data cable / input for terminating resistor of 120 Ohm
SHLD Shield
CAN_H White Data cable / input for terminating resistor of 120 Ohm
V+ Red External voltage supply ; see  5.4-11
V
cc
V
cc
V+
CAN-HIGH
Shield
CAN-LOW
V-
7
6
2
8
5
3
1
4
2175DeN007
Internal wiring of the bus
terminals
