Installation
4-6
L
_^ONMObk
4.4.2 Wiring via RS485 (LECOM-B)

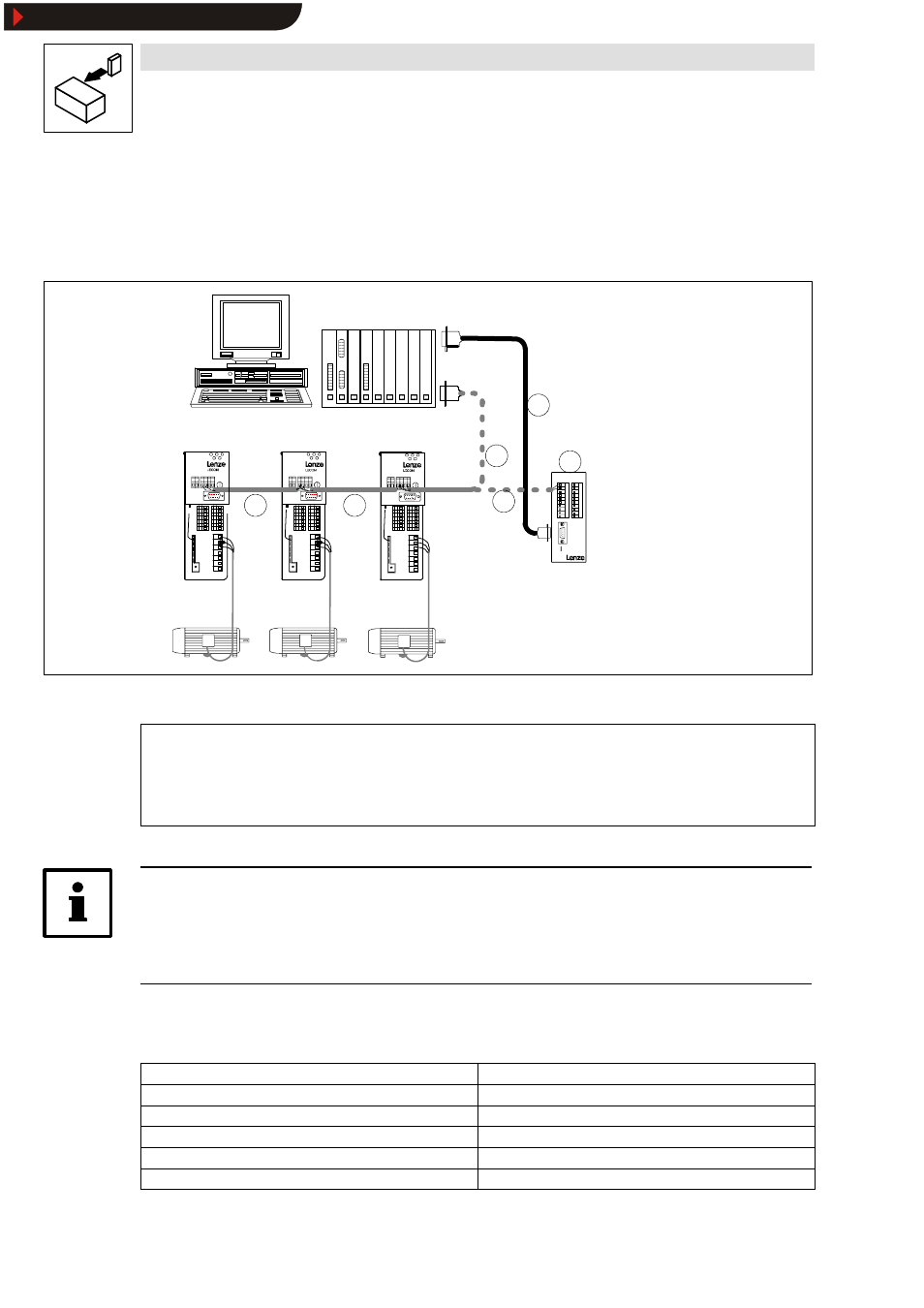

The following figure schematically shows the connection to a host (PC or PLC) via RS485
(LECOM-B).
2101IB
RS232
RS485
2a
2b
3
4
RS485 RS485 RS485
1
S1
89 88 72 71 5939
S1
89 88 72 71 5939
S1
89 88 72 71 5939
1
Fig. 4-4 Wiring for RS485 (LECOM-B)

Interface cable RS485
‚
Optional host connection
‚
O tional host connection
a) directly RS485
) S f
a) directly RS485
b) RS232 via interface converter 2101IB
ƒ
PC system cable
„
2101IB interface converter
Note!
•
We recommend the use of appropriate accessories (see chapter 8.1.3).
•
Please do not use any other but a shielded and twisted cable for wiring the RS485 interface
cable.
Wiring features for RS485 (LECOM-B):
Type 2102IB.V002
Communication media RS485 (2 wires)
Network topology Line
Possible number of controllers 31
Maximum cable length 1200 m
Maximum baud rate 19200 bit/s
