Technical data
3-2
L
_^ONMObk
3.3 Rated data
2102IB.V001 2102IB.V002 2102IB.V003
Communication media RS232 (LECOM-A)
RS485 (LECOM-B) RS485 (LECOM-B) Optical fibre
(LECOM-LI)
Current consumption 80 mA 60 mA 70 mA
External supply
(terminals 39/59) V = 24 V DC
V
RMS
= 15 TO 30 V DC; W = 5 %
V
RMS
= 20 TO 25 V DC; W = 48 %; V
SS
< 35 V
2102IB.V001 / 2102IB.V002 / 2102IB.V003:
Rated insulation voltage Type of insulation
• to PE 50 V AC no electrical isolation
• for external supply (terminals 39/59) - no electrical isolation
• for power stage
– 820X / 821X 270 V AC basic insulation
– 822X / 8200 vector 270 V AC double basic insulation
– 93XX 270 V AC double basic insulation
Insulation voltages
for bus systems
• for control terminals
for bus systems
– 820X / 8200 vector
(with internal supply)
- no electrical isolation
– 8200 vector
(with external supply)
100 V AC basic insulation
– 821X 50 V AC electrical isolation
– 822X 270 V AC basic insulation
– 93XX 270 V AC basic insulation
• for external bus systems 50 V AC electrical isolation
Degree of pollution VDE 0110 part 2 pollution degree 2

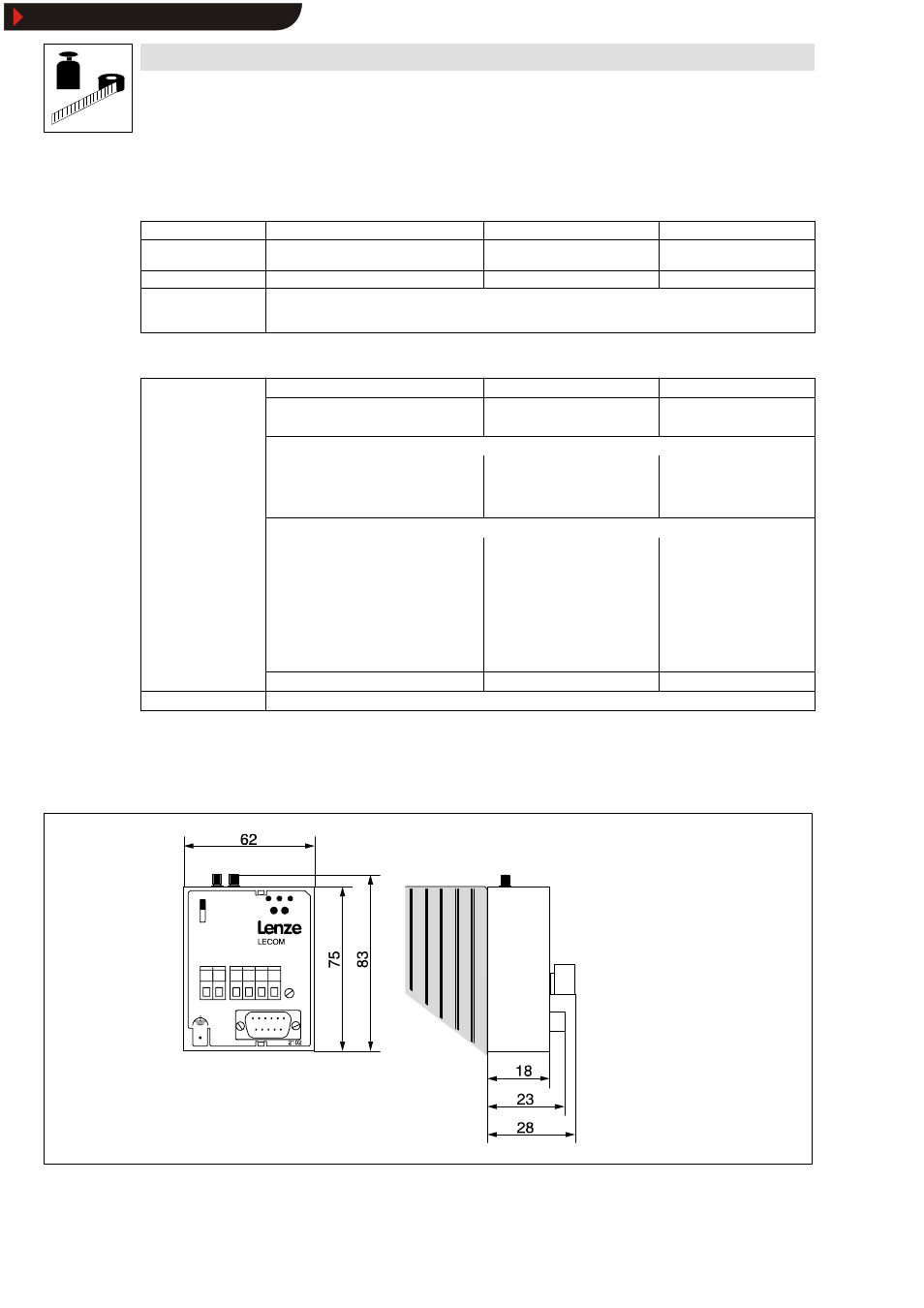

3.4 Dimensions
Fig. 3-1 Dimensions of the 2102 fieldbus module (all dimensions in mm)
