Control technology | PROFIBUS communication manual
The Lenze control system with PROFIBUS
PROFIBUS hardware for the industrial PC
4.2 PROFIBUS hardware for the industrial PC

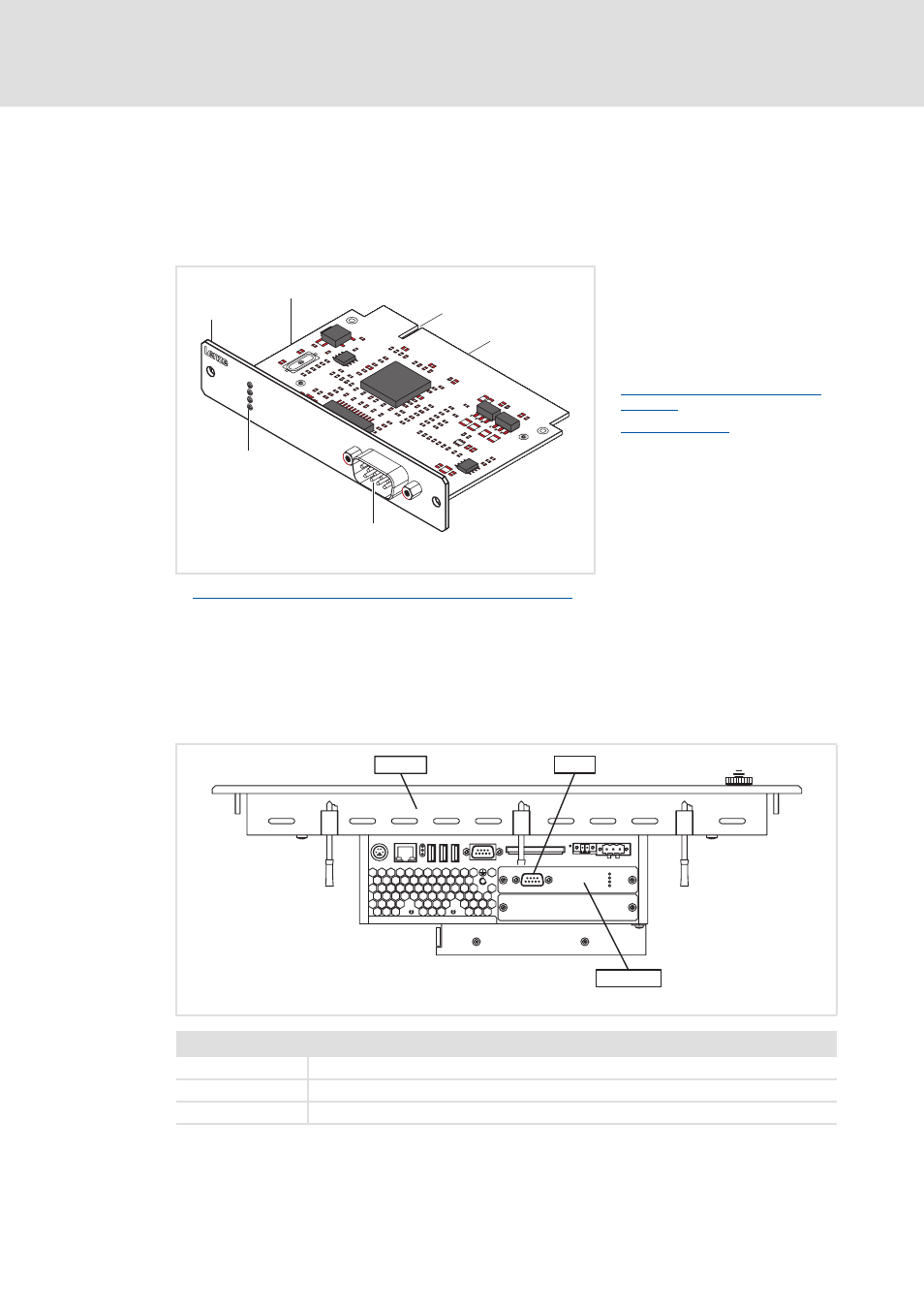

MC-PBM communication card
The MC-PBM communication card is a plug-in card for connecting an industrial PC as
PROFIBUS master to a PROFIBUS network.
Technical data of the MC-PBM communication card
( 20)
Possible applications
The MC-PBM communication card can be plugged into slot 1 and slot 2 of the industrial PC.
Several PROFIBUS communication cards can be used for each industrial PC.
Example: Industrial PC EL x8xx with MC-PBM in slot 1
MC_PBx_001
A Front panel
B Printed circuit board
C Coding
D Terminal for industrial PC
E
Connection of PROFIBUS (SUB-D, 9-
pole plug) ( 20)
F LED status displays ( 63)
MC-PBM_ELx8xx
Legend
EL x8xx
Industrial PC of the EL x8xx series
PBM1 PROFIBUS connection
MC-PBM PROFIBUS master communication card
0
1
3
2
PROFI
BUS
MC-PNx
SYS
ST0
ST1
ST2
5
4
l
l
PBM1
MC-PBM
EL x8xx
