12 Instructions for Use, V 2.0 RevD – 09/2013

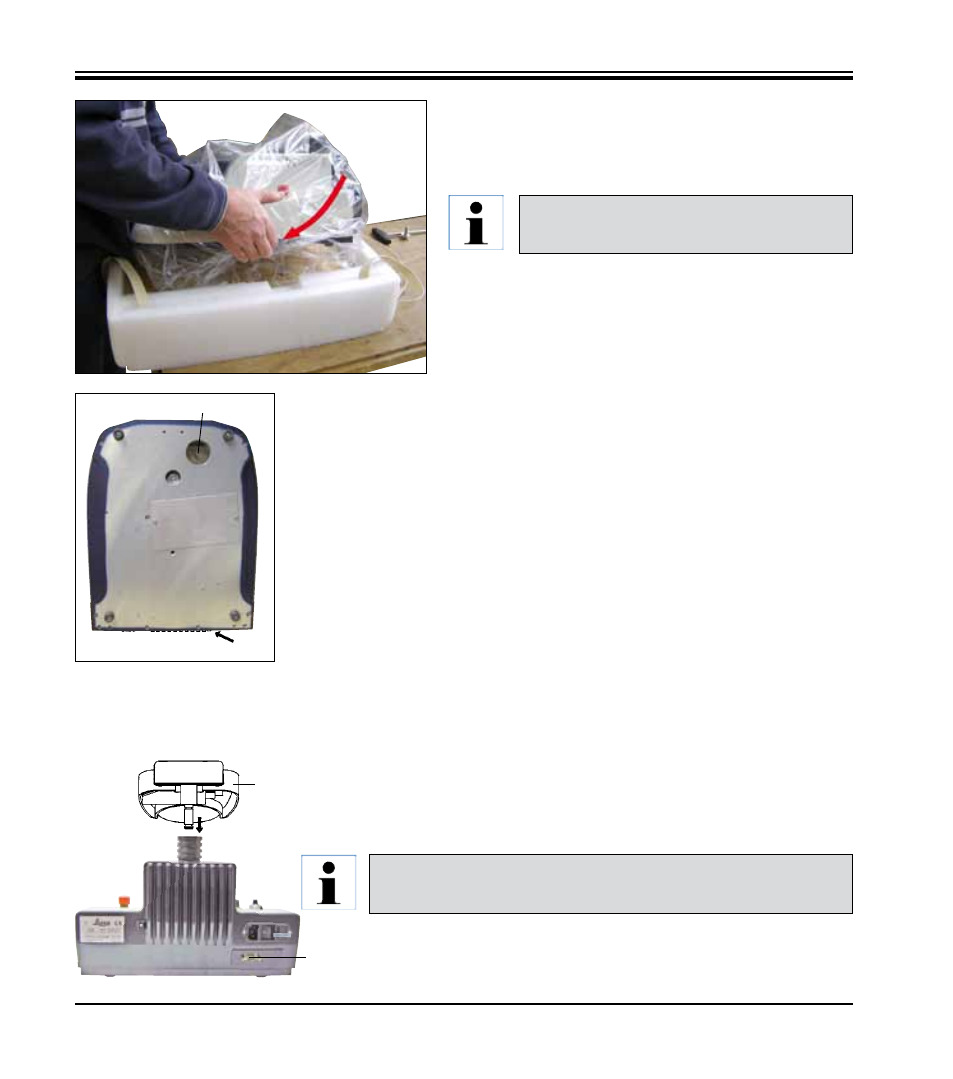

Fig. 9
5. Using both hands at the sides (Fig. 9), grasp the
bottom of the instrument and carefully place it on
a suitable laboratory table.
Fig. 10 - Bottom of the instrument
2
Assembling the drain tube
• Connect the drain tube (Fig. 10) to the bottom of the instrument (1).
• Ensure that the loose end of the drain tube is closed tightly with the
matching stopper.
• Secure the loose end of the drain tube in the holder at the rear of the
instrument (2).
1
4
Assembling the magnifier support and foot switch (optional)
Fig. 11
• The magnifier support (3) is packaged separately.
• Set it on the instrument as shown in Fig. 11.
• Attach the optional foot switch.
• Securely plug the foot switch into the 9-pin socket (4).
3
4. Installation
Compare with the attached packing list to
make sure the delivery is complete.
When transporting the instrument, always do so WITHOUT the
magnifier support!
