98 Software Installation Manual, Revision 2 - 03/2010

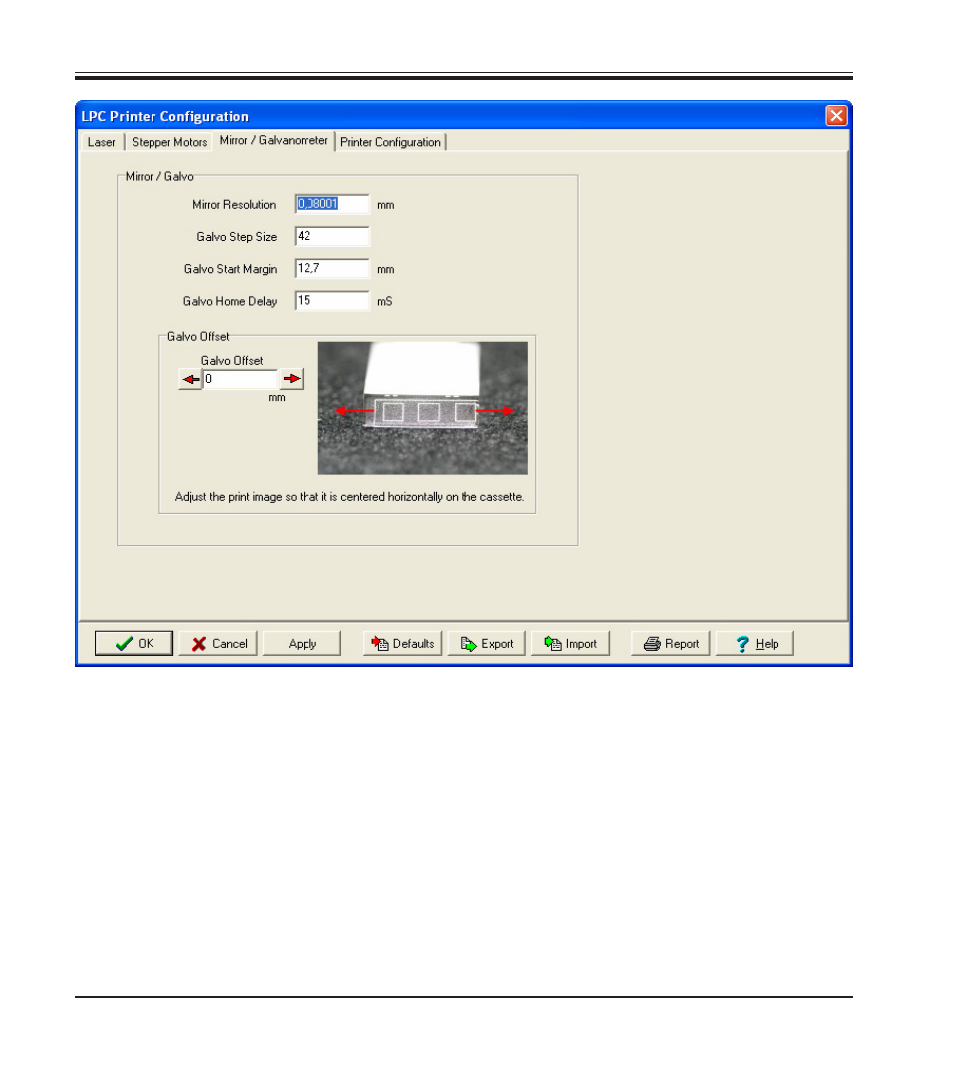

Fig. 24
Mirror Resolution - This field specifies the resolution of the mirror galva-
nometer in inches or millimeters per step. You must enter a value that is
compatible with your printer model. A typical value for the model Leica LPC
cassette printer is 0.003 inches per step.
Galvo Step Size - This field specifies the number of DAC steps to apply to
move the galvanometer mirror by one pixel in the vertical dimension. You
must enter a number that matches your cassette printer’s configuration.
Galvo Start Margin - This field specifies the number of pixels in the margin
at the start of each column of image data.
3. User Interface
