User interface – Leica Biosystems LPC Software installation User Manual
Page 93
93
LabeLase
®
Producer - Installation
Printer Model
This menu item will open a sub-menu allowing you to select the printer
model.

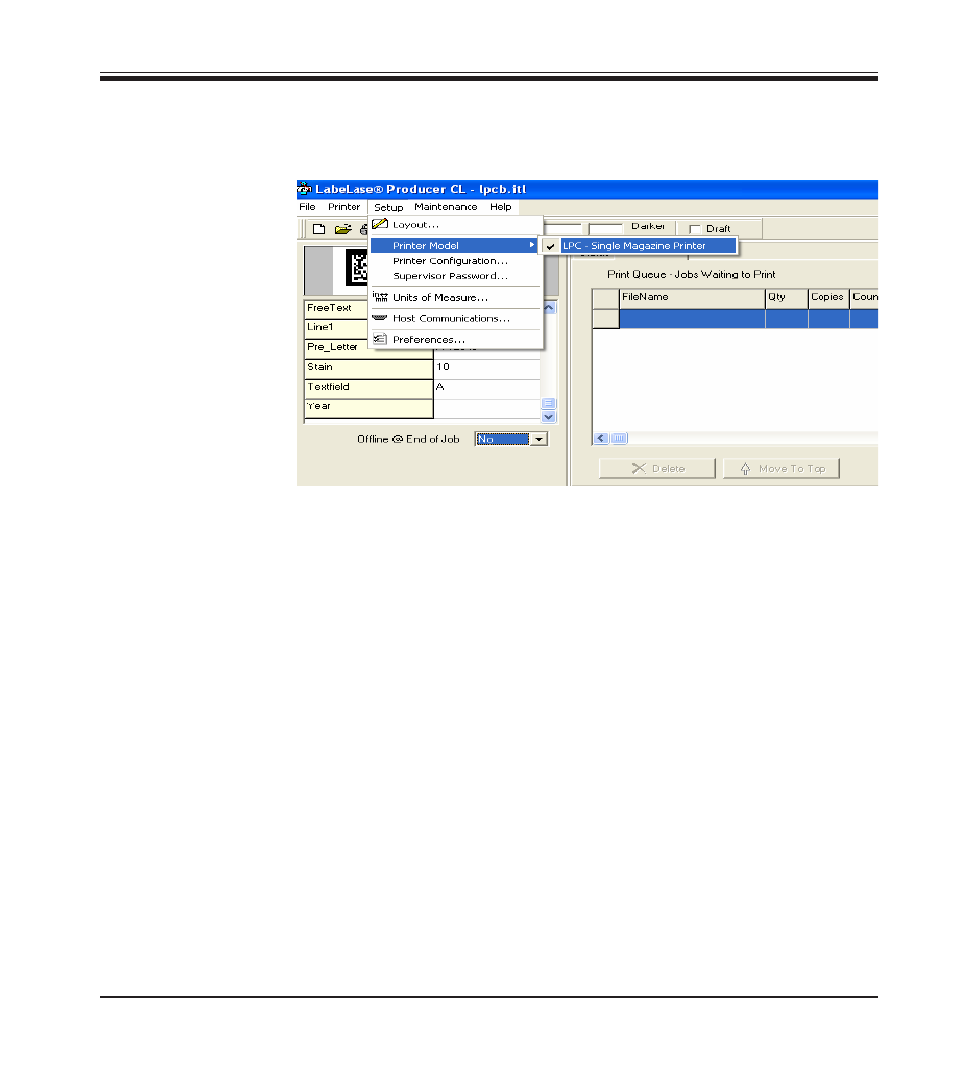

Fig. 21
The system checks the currently selected model. Select the printer con-
nected to the computer. Note that when Producer starts, the printer model
is queried and the corresponding settings are configured automatically.
3.3.2 Printer Configuration
The "Printer Configuration" dialog allows you to enter the parameters that
describe the configuration of the printer. The dialog has five tabs, each for a
specific aspect of the printer configuration: Laser, Stepper Motors, Mirror/
Galvanometer, Printer Configuration and Barcode Verifier, which are ex-
plained in detail below.
3.
User Interface
