LabeLase
®
Producer - Installation
3.4.7 Geometry Form
The Geometry form allows you to configure the physical geometry of the
printable area of the cassette in your layout to match the actual cassette
you are printing.
Dimensions

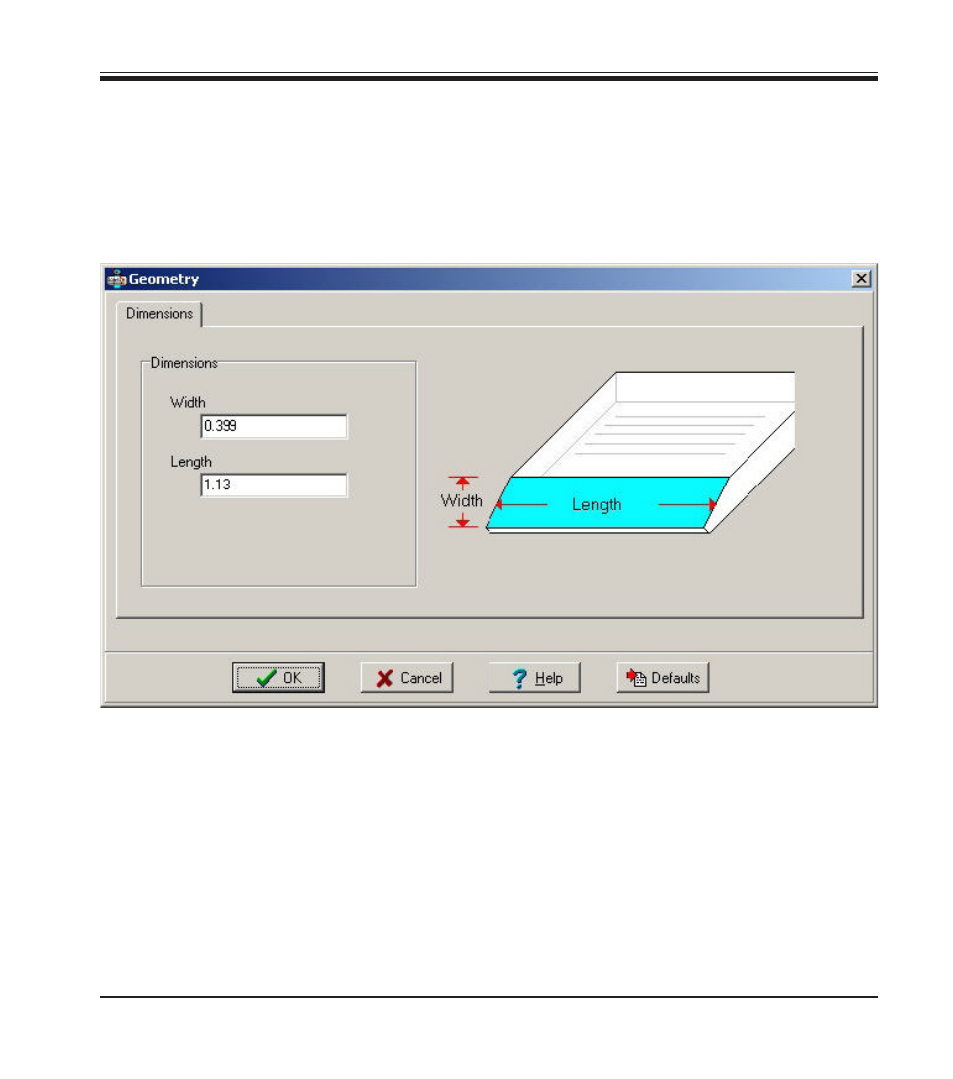

Fig. 82
Dimensions
This tab allows you to specify the dimensions of the cassette's printable
area.
Width - This field specifies the width of the printable area. The width is
shown vertically on the screen and is entered in inches or millimeters.
Length
-
This field specifies the length of the printable area. The width is
shown horizontally on the screen and is entered in inches or millimeters.
