29 Leica IP S
4. Instrument Setup
• The contact spring (44) has to touch the igni-
tion wire (45) of the lamp after being inserted.
• Swing the reflector downwards. Reinsert and
retighten screw (49).
• Close lid (4) of the instrument again.
Fig. 20
45 47

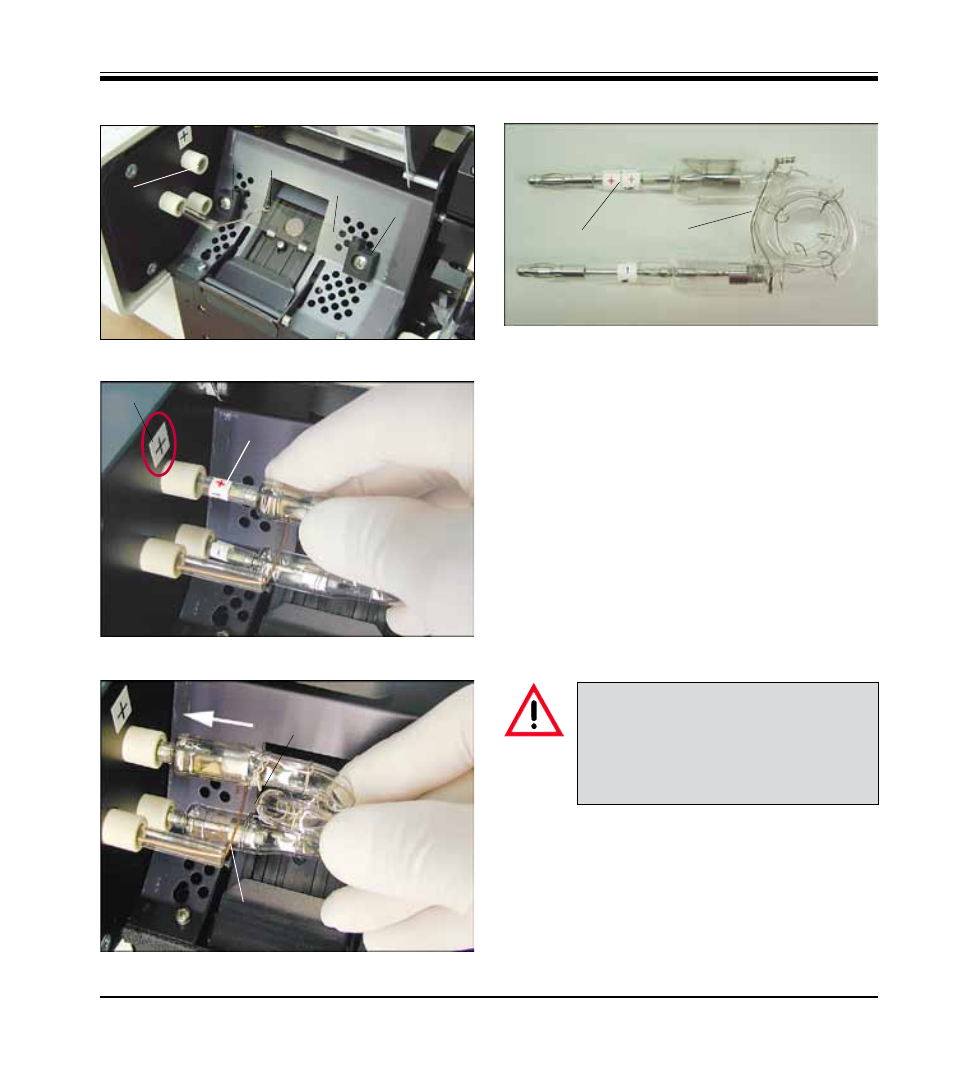

Inserting the new flash bulb
47
48
Fig. 22
Fig. 19
44
46
Fig. 21
45
44
85
86
86
Caution!
If the lamp electrodes are inserted the
wrong way, the flash bulb will still
work, but the lifetime will be signifi-
cantly reduced.
• Insert the shielding glass (85) in the two hold-
ers (86).
• Insert the new flash bulb into socket (46)
( Fig. 21 ); then push it carefully inwards as far
as it will go ( Fig. 22 ) (the polarity marker (+)
must not be visible any longer). If necessary,
move flash bulb gently up and down.
• Important! Make sure that the new flash bulb
is inserted correctly – the lamp electrode
(47) marked with a + must be inserted into
the socket (46) that bears the same mark (48)
( Fig. 21 ).
