Chapter 5

Hookup and Operation

The 1432/1632/1632 RS Grader utilizes four hydraulic
valves on the tractor, allowing it to function in four
different directions.

The Grader has the ability to:

• raise to a clearance from bit to ground of 30 inches

while lowering to a negative cut.

• tilt from side to side approximately 15 degrees to

accomplish slope cuts and ditching.

• swing of the blade approximately 50 degrees, left or

right,

• control of the rear steer, 5’ in either direction. All of

these functions can be done on the go, or while the
grader is stopped.

Tie Strap Designations

Color coded tie straps and markers are attached at the
tip end of the hoses to identify the four pairs of hydraulic
lines to the grader.

• Black tie is used on the hoses that raise and lower of

the blade.

• White tie is used on hoses that swing of the blade.

• Yellow tie is used on hoses that tilt of the blade.

• Blue tie is used on hoses that shift the rear.

NOTE

The decal is located on the tongue of the machine (See
Figure 5-1.)

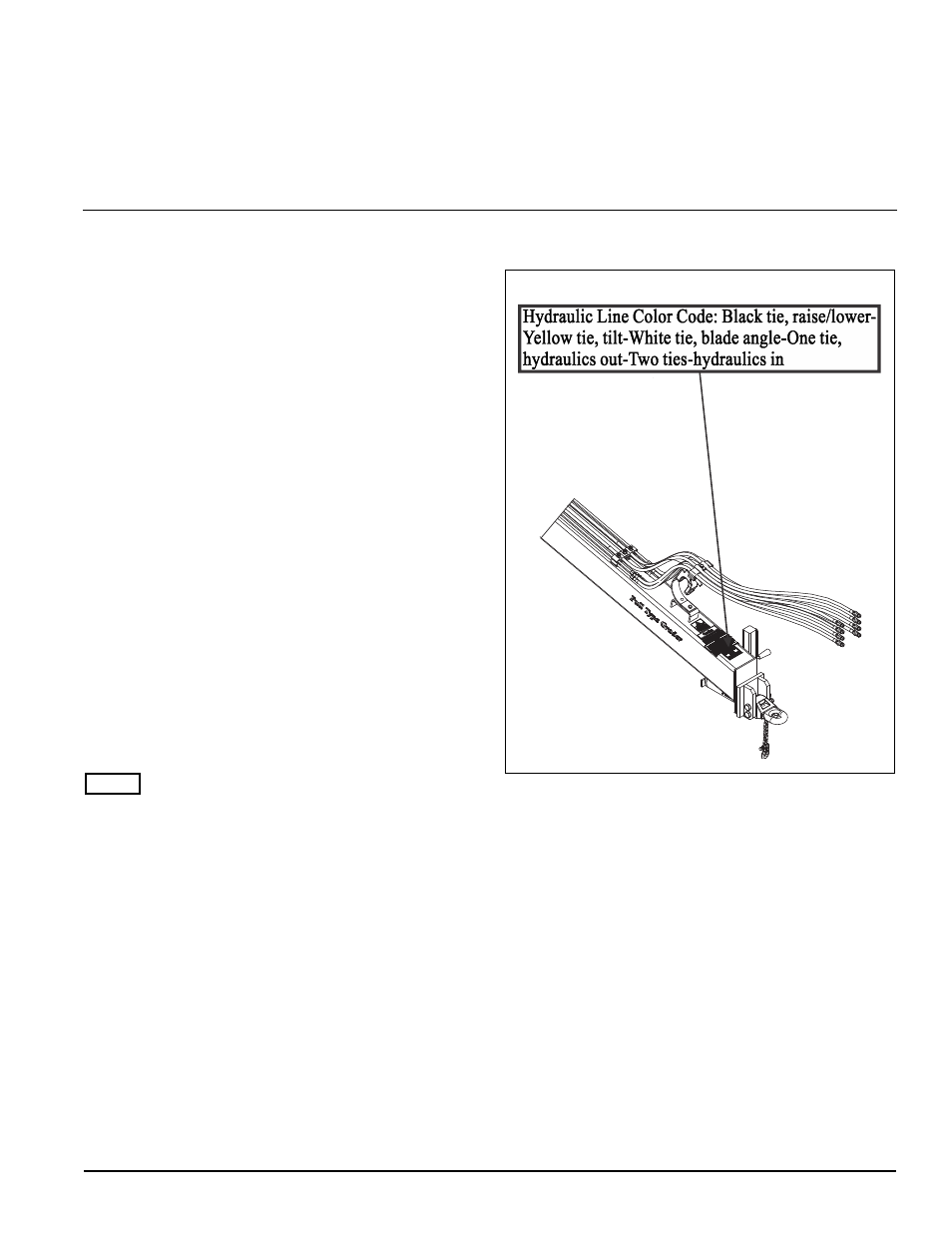

Figure 5-1: Tie Strap Designations

tie strap id

4000625
