4-2

F-607-1213 Edition

ASSEMBLY AND LUBRICATION

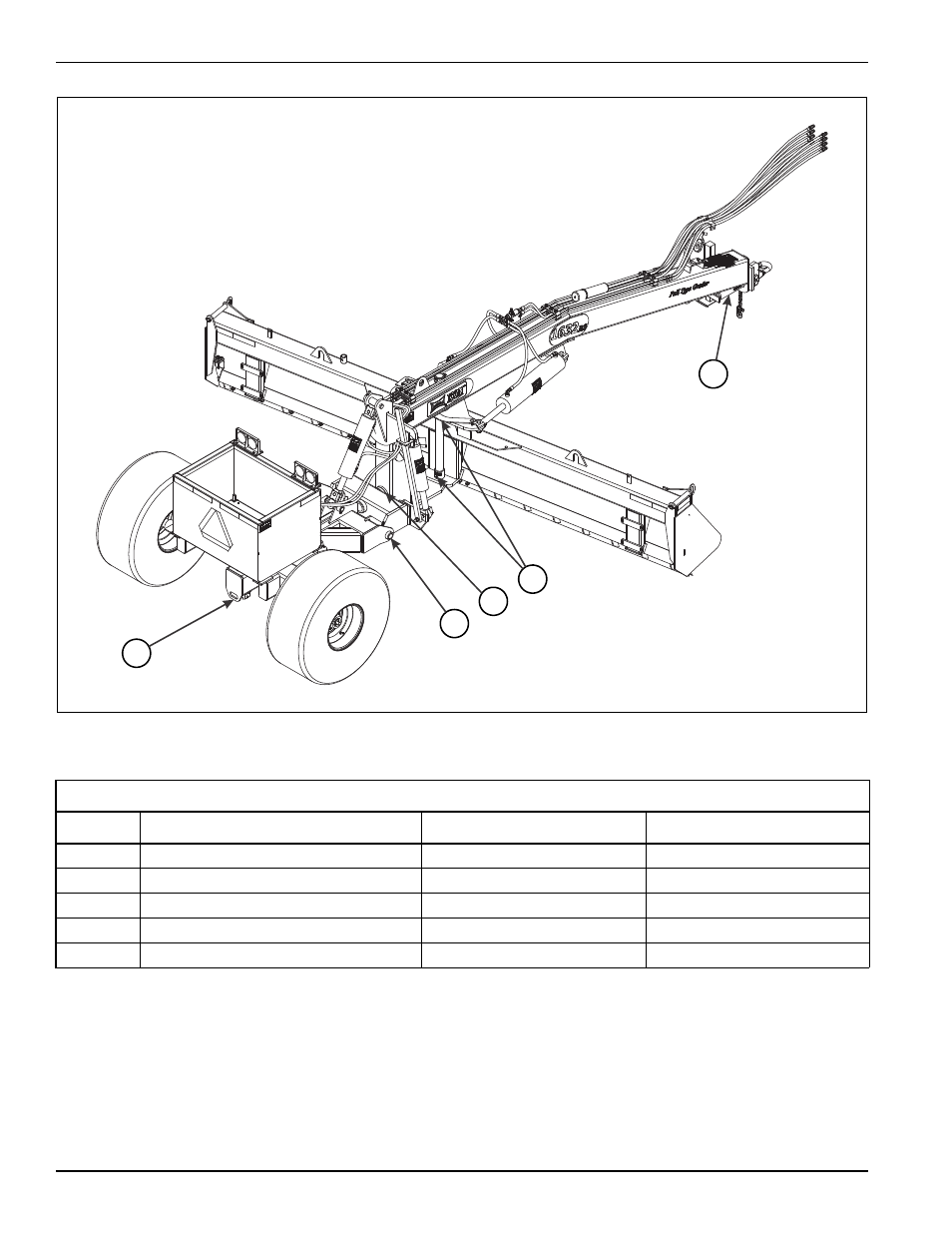

Figure 4-1: Lubrication Schedule

Table 4-1: Lubrication Table

LUBRICATION TABLE

ITEM

DESCRIPTION

NO. OF LUBE POINTS

INTERVAL

1

REAR AXLE PIVOT

1

DAILY

2

REAR AXLE SUPPORT PIN

2

DAILY

3

CENTER BLADE PIN

2

DAILY

4

HITCH PIVOT

2

DAILY

5

CENTER PIVOT

1

DAILY

4

1

1632 rs lubrication chart

2

5

3
