Rotor thrust guide, Warning – Landoll BPSB6 Till-N Seed User Manual
Page 48
4-6
3P091
MAINTENANCE
Rotor Thrust Guide
WARNING
• On each side of the machine, check the 1/32”
maximum clearance between the Thrust Guide and
Lower Frame Side Plate.
• If adjustment is needed loosen Jam Nut and turn
Adjusting Bolt. Retighten Jam Nut.
Right side of the machine is shown.

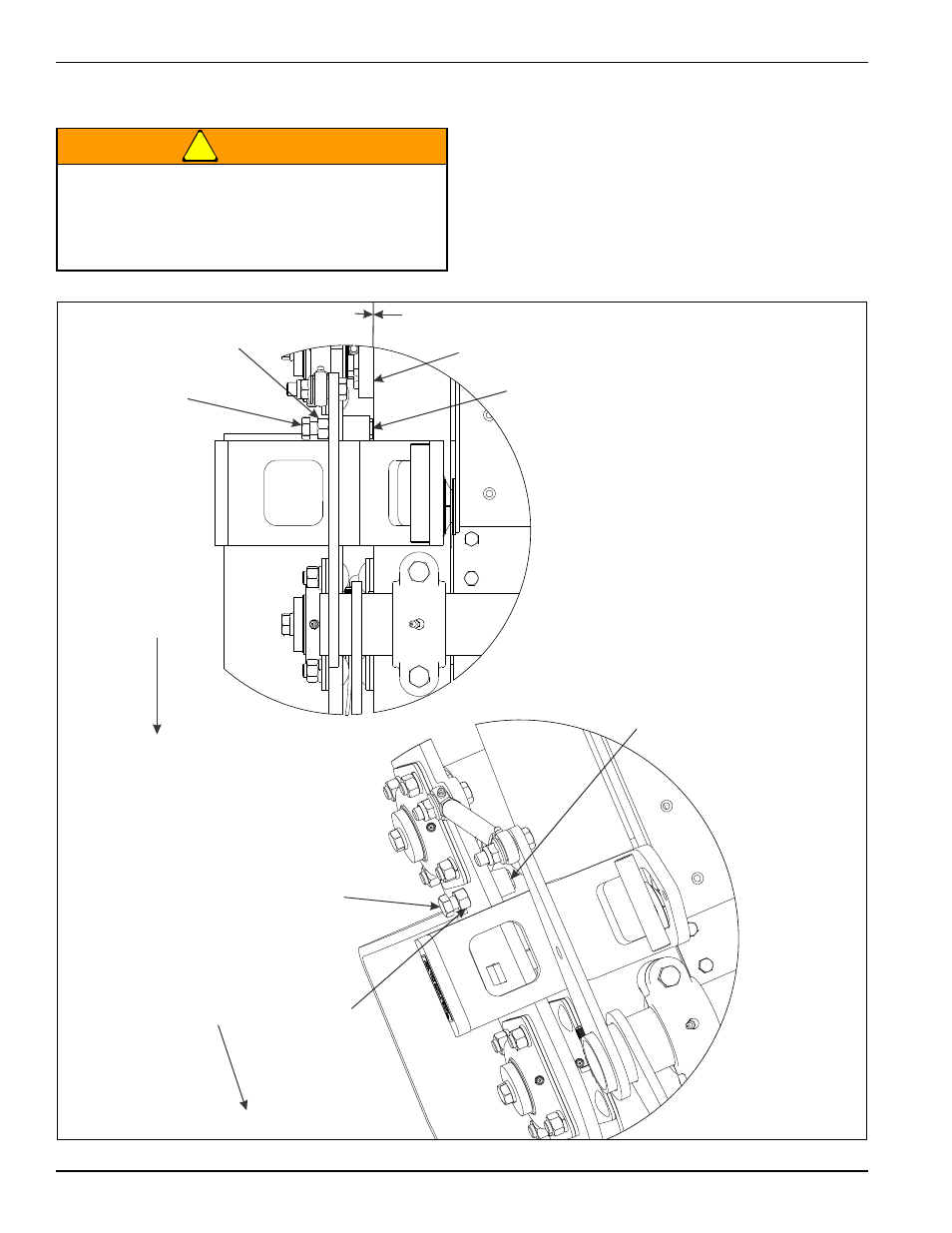

Figure 4-6: Rotor Thrust Guide
Support machine with blocks or stands when
working on or under it to prevent injury in case of
hydraulic failure or inadvertent lowering by
another person. Make sure all moving parts have
stopped before doing any rotor maintenance.
Front
Adjusting
Bolt
Jam Nut
Lower Frame
Side Plate
Thrust Guide
Thrust Guide
Adjusting Bolt
Front
Jam Nut
