Landoll BPSB6 Till-N Seed User Manual
Page 41
OPTIONAL EQUIPMENT INSTRUCTIONS
3-9

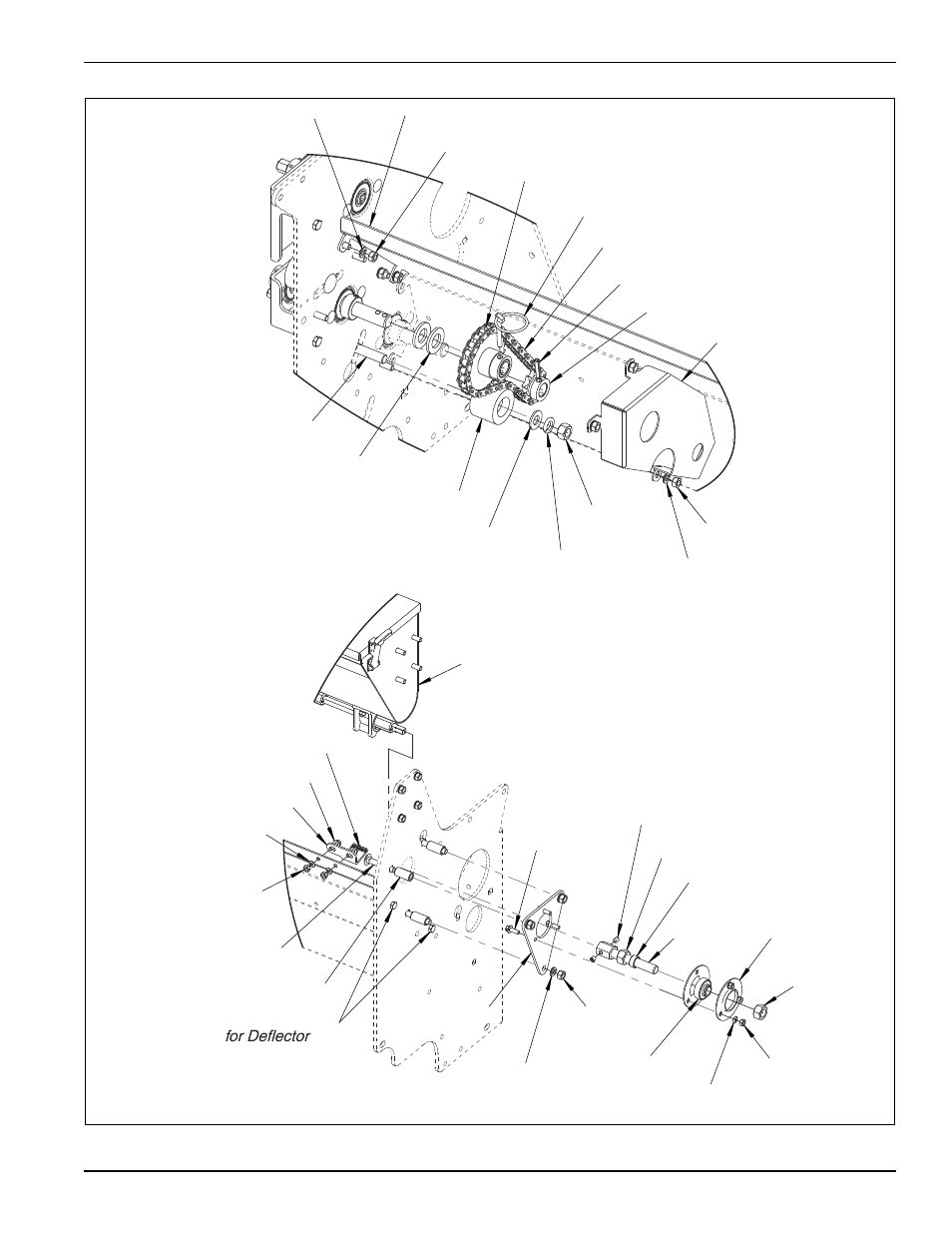

Figure 3-5: Small Seedbox Kit (3 of 3)
Small Seedbox
Indicator Decal
FHHCS,1/4-20 x 3/4
CB,3/8-16 x 2-1/4
Spacer,5/8 x 1-1/4
Indicator
Nut,Hex 1/4-20
Lock Washer,1/4
Nut,Hex
5/8-11
Nut,Hex 5/8-11
Nut,Hex
1/4-20
Lock
Washer,1/4
Lock
Washer,3/8
Nut,Hex
3/8-16
Flangette
Half,3 Bolt
Bearing,
5/8 Bore
FHHCS,
1/4-20 x 3/4
Shaft
Extension
Spacer,27/32 x 3/8
Set Screw,5/16-18 x 3/8
Bearing Plate
HHCS,5/16-18 x 3/4
Back Guard
Nut,Hex
5/16-18
Lock
Washer,5/16
Lock
Washer,1/2
Nut,Hex
1/2-13
Idler,2 x 1-1/2
Flat Washer,
1/2 SAE
CB,1/2-13 x 2
Roll Pin,1/4 x 1-1/4
Sprocket,10T
Klik-Pin
Roller Chain,42 Pitches
Sprocket,23T
Flat Washer,3/4 SAE
Nut,Hex 5/16-18
Lock
Washer,5/16
Deflector
