Rotor blade, Firming roller – Landoll BPSB6 Till-N Seed User Manual
Page 49
MAINTENANCE
4-7
Rotor Blade
• Check and replace bent or damaged Rotor Blades.
• Regularly check Rotor Blade tightness, if adjustment is
needed remove Roll Pin and torque the Slotted Hex
Nut to 400 Ft-Lbs. Re-insert the Roll Pin.
Right side of the machine is shown.
Firming Roller
• Check the Firming Roller regularly for tightness
between wheels, if adjustment is needed loosen the
Hex Nuts and Slide the clamp over. Re-tighten Hex
Nuts.
Right side of the machine is shown.

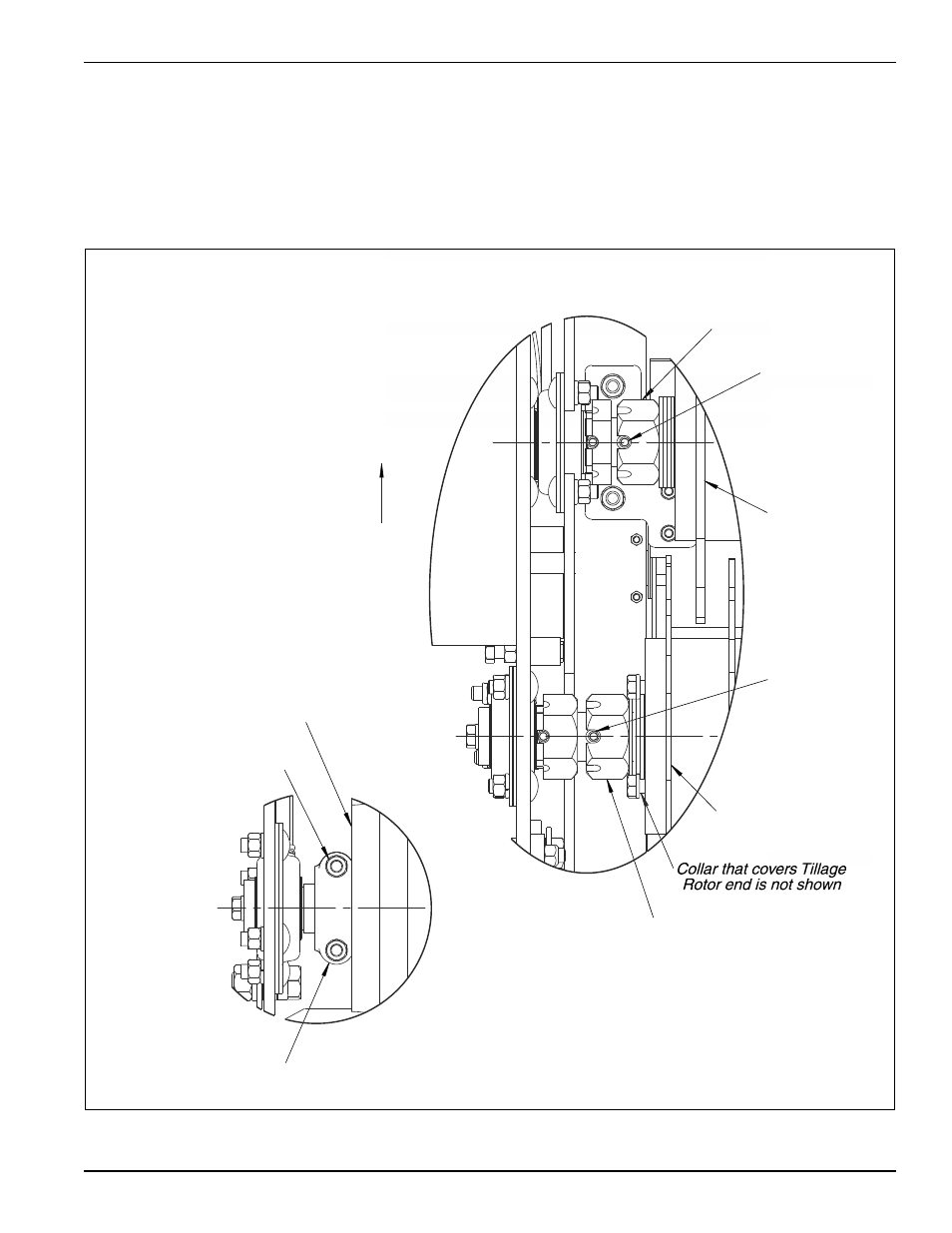

Figure 4-7: Rotor Blade and Firming Roller
Roll Pin
Drive Rotor
Slotted Hex Nut
Tillage Rotor
Slotted Hex Nut
Roll Pin
Firming Roller
Slide Clamp
Loosen Hex Nuts
Front
Firming Roller
Rotor Blade
