OPERATION
2-11
Rear Seedbox
1.
Adjust Seed Meter Setting.
2.
Remove Seed Drive Disconnect Pin - Rear Box.
3.
Prime Meters: Turn 5/8" Hex for Rear Box Calibration
CCW (Counter Clockwise) until all Meters are
discharging seed. Empty Calibration Trough or Tarp.
4.
Turn the 5/8" Hex CCW 143 revolutions to meter out
seed.
5.
Weigh the seed = Lbs / Acre.
6.
Adjust Meters and Re-Calibrate as necessary.
7.
Re-Install Seed Drive Disconnect Pin - Rear Box.
8.
Re-Install Calibration Trough in Seeding Position.

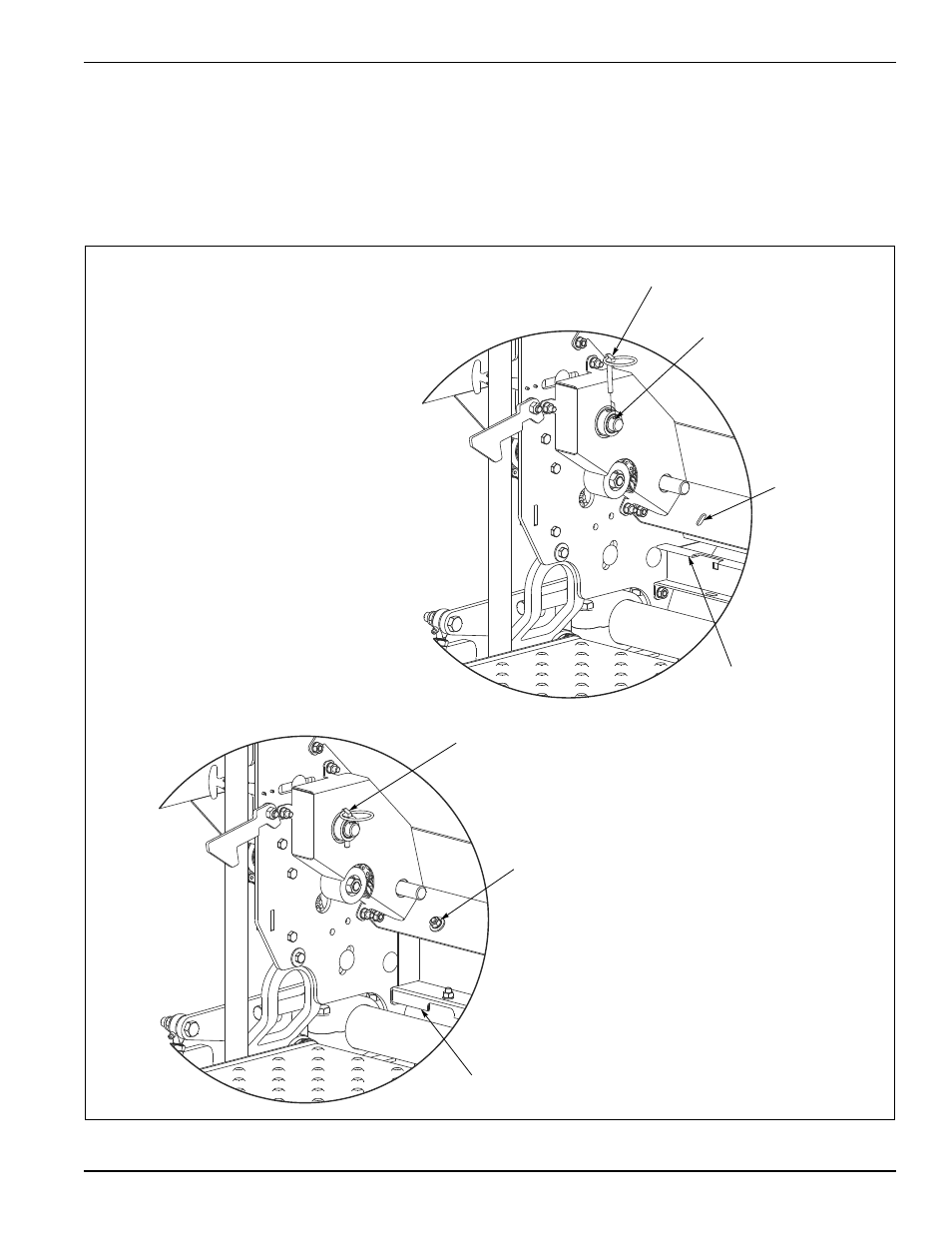

Figure 2-11: Rear Seedbox Calibration
Trough in
Collection Position
Remove Klik Pin to disengage
Rear Box Drive
Storage hole for
Klik Pin
Installed Klik Pin to engage
Rear Box Drive
Trough in
Seeding Position
Trough
Hardware
Removed
(6) 5/16-18 x 3/4 Carriage Bolts
and Hardware
