BRACKET FOR
“SLOW MOVING
VEHICLE” EMBLEM

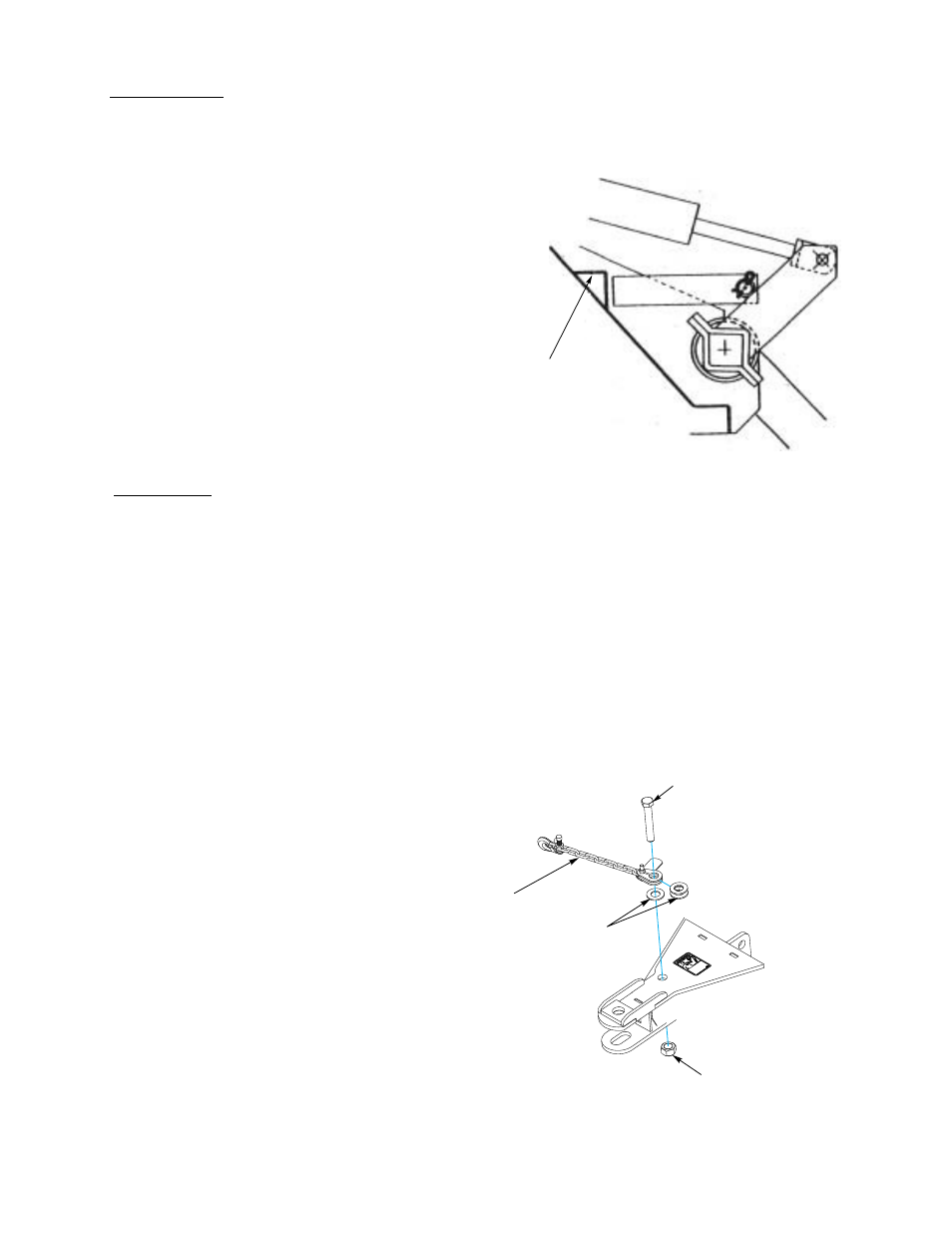

Transport Lock
To prepare the machine for transport, raise it
fully and assemble lock pin and spacers as shown
in view at right. (A spacer on each end of the pin, held
in place with roll pin and hair pin cotter.) When in the field
position, pin and spacers can be stored in the center
plate storage hole, just ahead of the hydraulic cylinder.
SAFETY CHAIN 11,000 LBS
HHCS, 1-8 X 6-1/2” GR5
1” FLAT WASHERS
1-8, SELF LOCKING HEX NUT
Safety Chain
Use the safety chain to help control drawn machinery should it separate from the tractor
drawbar. Use a chain with a strength rating equal to or greater than
the gross weight of towed machinery, which is 10,100 pounds minimum in accordance
with ASAE S338.2 specifications. If two or more implements are pulled in tandem, a
larger chain may be required. Chain capacity must be greater than the TOTAL weight of
all towed implements. A second chain should be used between each implement. Attach
the chain to the tractor drawbar support or specified anchor location. Allow only enough
slack in the chain to permit turning. The distance from hitch pin to attachment point or
intermediate support point should not exceed 9 inches.
Replace the chain if any links or end fittings are broken,
stretched or damaged.
