Landoll 175116 Trunnion Bearing Retrofit Kit User Manual
Page 9
F-715
Brillion Farm Equipment
1-9
Landoll Corporation
Step 3
• Remove the Clamp on Bearing Hanger (P/N 2P233)
by loosening four 5/8” Flange Nuts and removing four
5/8” X 7” HHCS.
• Attach the new Bolt on Bearing Hanger (P/N 174879)
reusing the existing four 5/8” Flange Nuts, 5/8” X 7”
HHCS and the Bearing Hanger Clamp.
• Tighten to specification in Torque Chart located on
page 1-13.

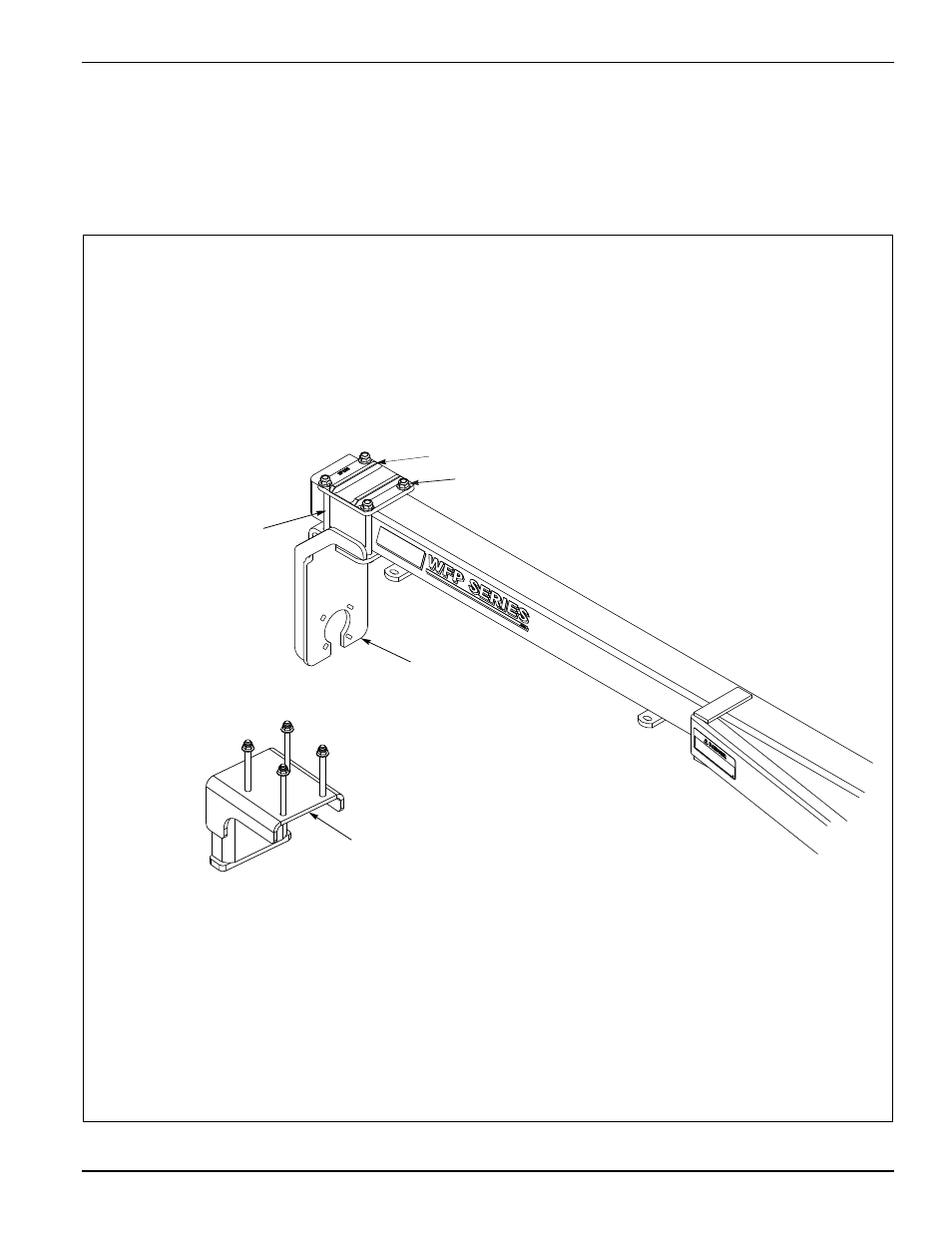

Figure 1-8: Step 3
Remove Clamp on
Bearing Hanger
5/8” Flange Nut
5/8”-11 X 7” HHCS
Bearing Hanger Clamp
Bolt On Bearing Hanger
P/N 174879
