Landoll 175116 Trunnion Bearing Retrofit Kit User Manual
Page 10
1-10
Brillion Farm Equipment
F-715
Landoll Corporation
Step 4
• Remove the existing Stub Shafts (P/N’s 3P054 or
173366) by loosening four 5/8” X 2 1/4” HHCS and
5/8” Washers.
• Attach the new Axle Stub Shaft (P/N 173119) reusing
the existing four 5/8” X 2 1/4” HHCS and 5/8”
Washers.
• Orientation of flat on stub is not important.
• Tighten to specification in Torque Chart located on
page 1-13.

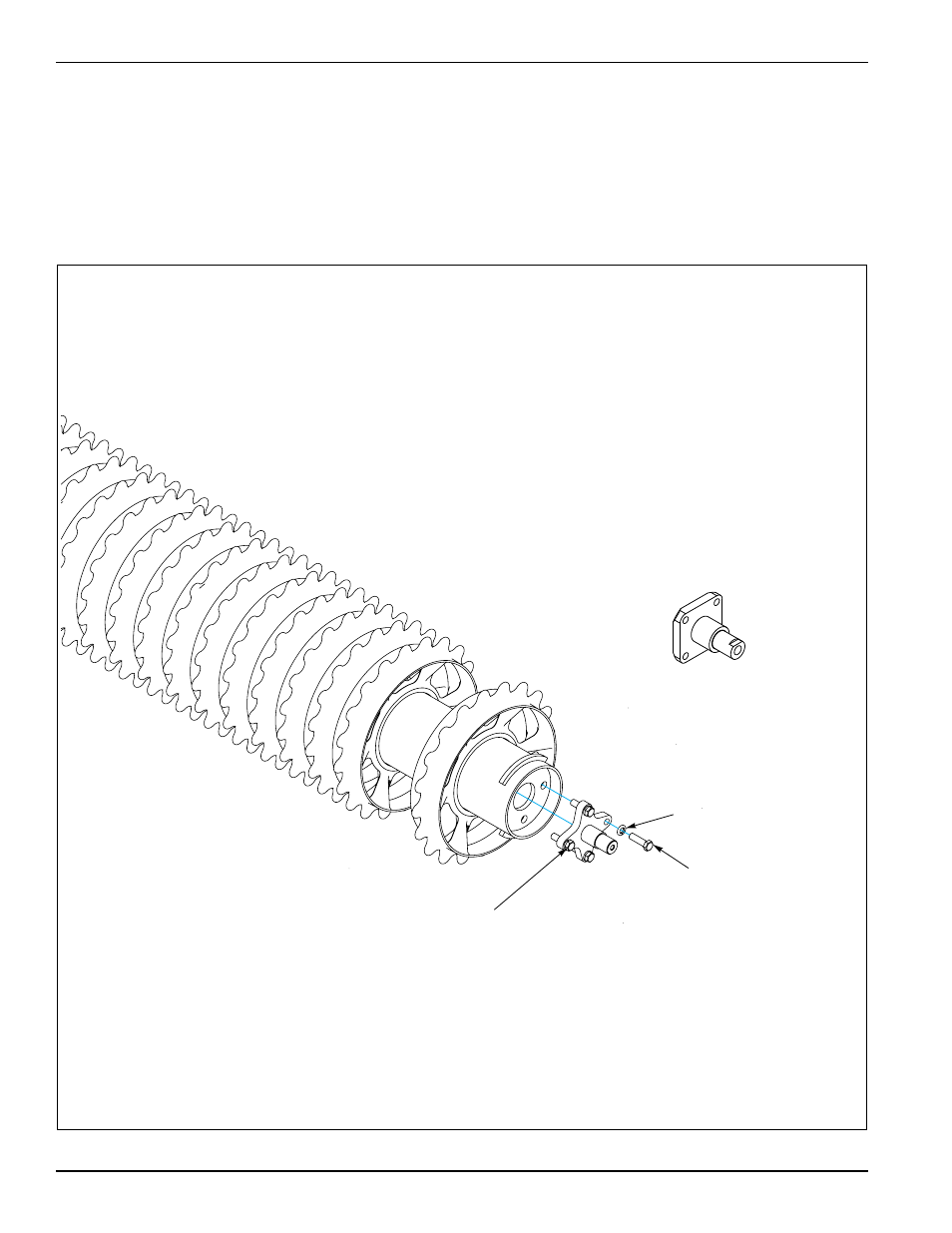

Figure 1-9: Step 4
Axle Stub Shaft
P/N 173119
Remove existing Stub Shafts
5/8”-11 X 2 1/4” HHCS
5/8” Washer
