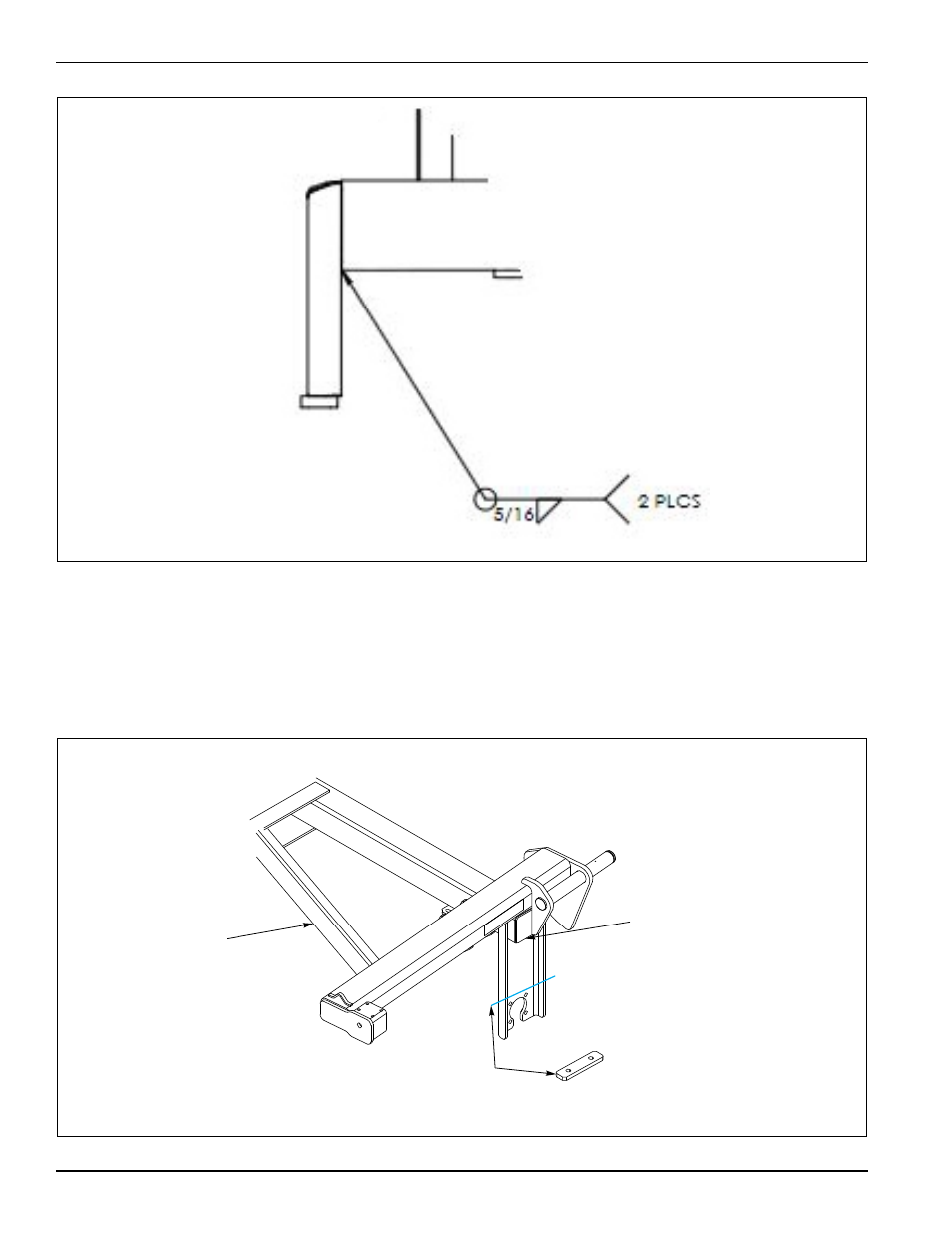

Figure 1-4: Center Frame Bearing Hanger Weld Information
Step 2
• Cut the lower part of the Wing Bearing Hanger, P/N
2P226, 10 1/4 inches down from the bottom of the
tube.
• Weld the Bearing Mount Plate (P/N 174880) onto the
remaining portion of hanger.
• See Figures 1-6 and 1-7 below for part placement
and welding information.
Figure 1-5: Step 2
Cut Line is 10 1/4” Down from
the Bottom of the Tube
Bearing Mount Plate
P/N 174880
Weld
Wing
Tube Bottom
