Data Sheet 706021 (706000) JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 8/11

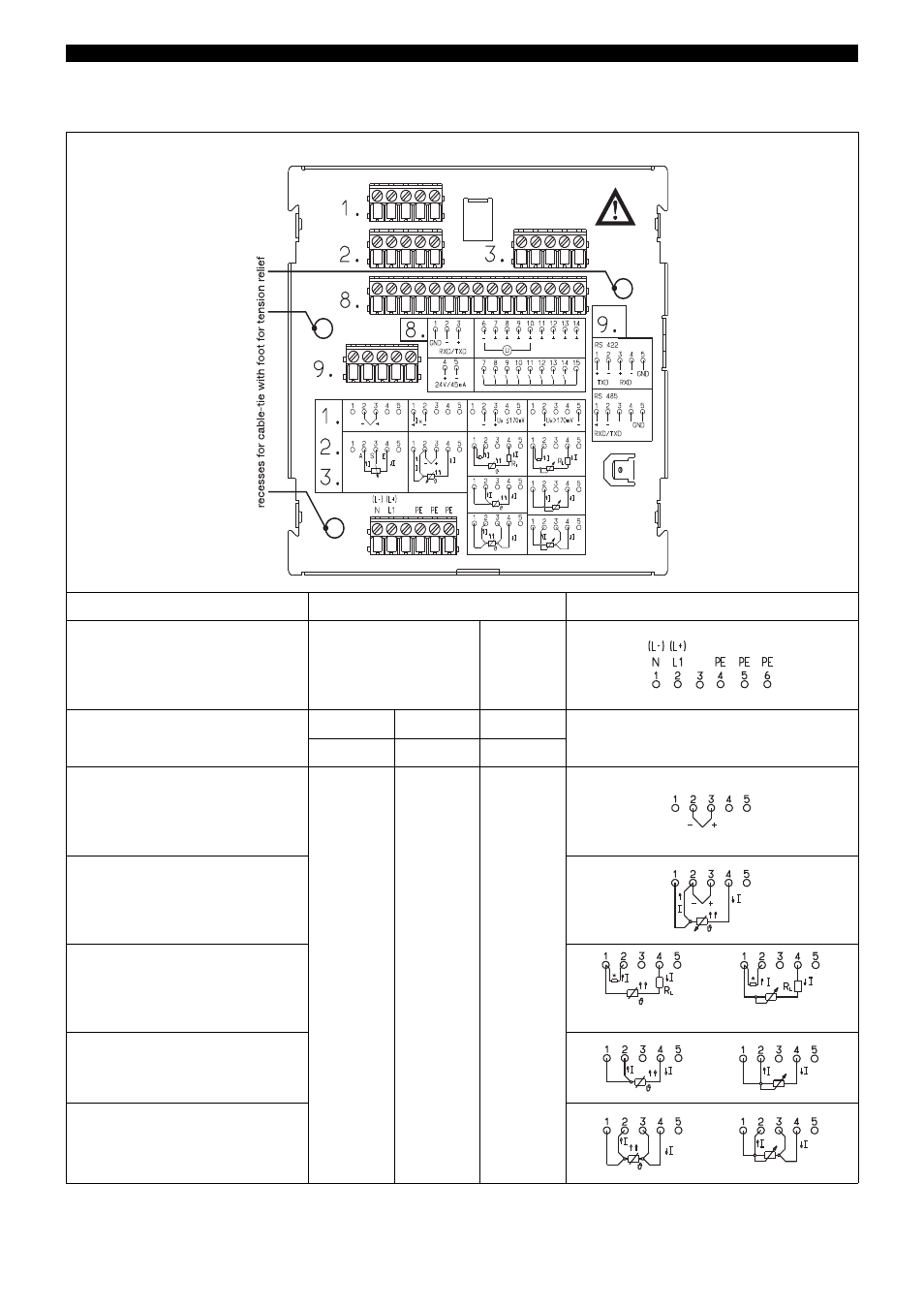

Connection diagram
Rear view with screw-clamp connectors
Connection Diagram
Supply as on label N neutral
L1 line
PE protective earth
N (L-)
L1 (L+)
PE
Analog inputs Input 1 Input 2 Input 3
Connector Connector Connector
Thermocouple
1. 2. 3.
Thermocouple
with external Pt 100 cold junction
RTD temperature probe/
potentiometer in 2-wire circuit
*R
comp
= R
line
RTD temperature probe/
potentiometer in 3-wire circuit
RTD temperature probe/
potentiometer in 4-wire circuit
