Data Sheet 706021 (706000) JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 7/11

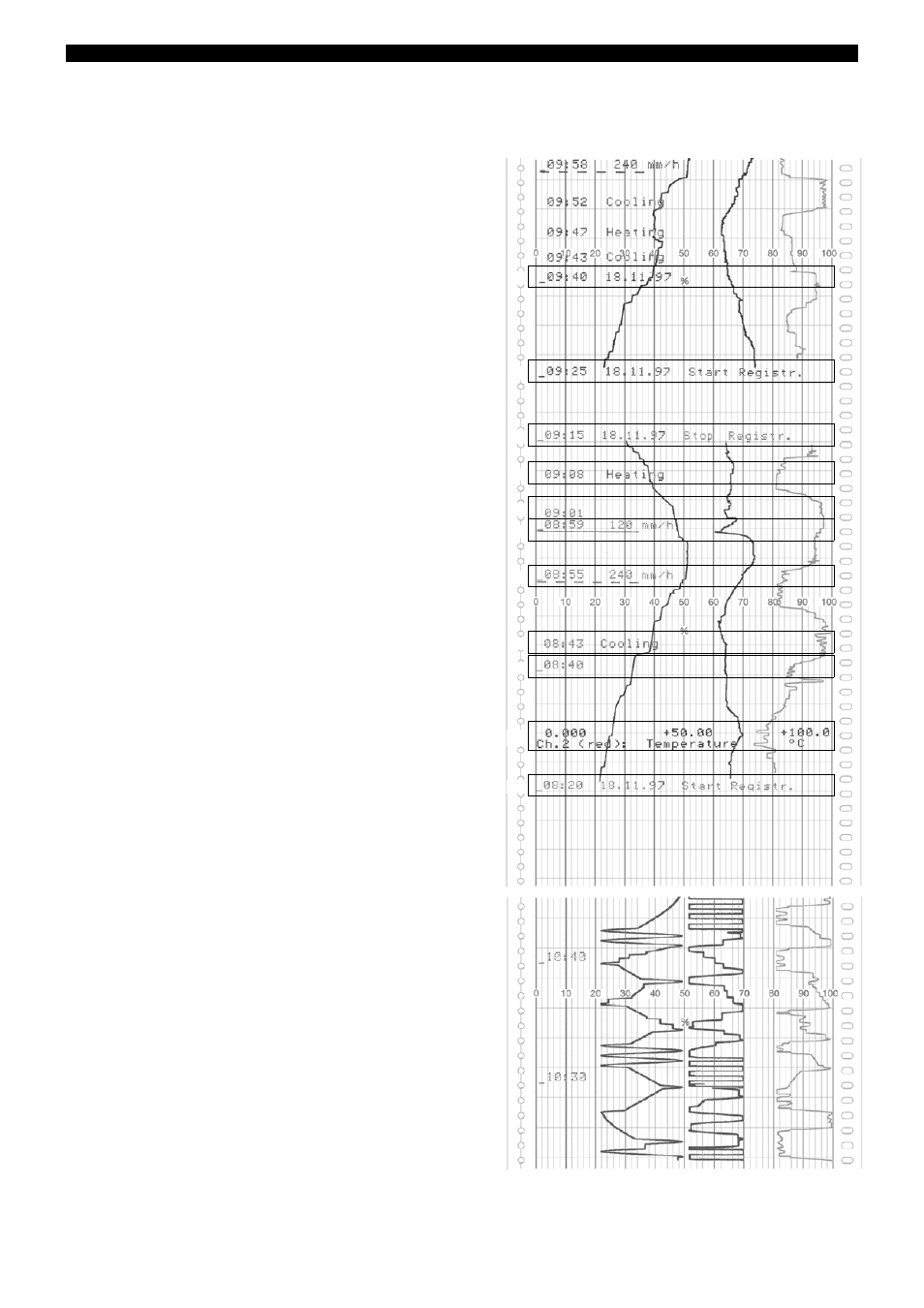

Example of a recording
with text print-out
The factory-setting provides for all the measurement traces to be printed
in the range 0—100%, i.e. across the entire chart width.
(1) Print the time (with every fourth print-out, the current chart speed, the
programmed instrument name or the date are printed alternately)
(2) Print-out at the start of the recording (begin text)
(3) Print-out at the end of the recording (end text)
(4) Relay text
(5) Current time
(6) Speed change to normal operation
(7) Speed change to limit operation
(8) Relay text on exceeding the limit
(9) Current time
(10)Print-out of scaling with channel number, pen color,
channel name and unit.
(11)Begin text
In the example above, the measurement traces are printed out in normal
mode, i.e. all traces share the entire width of the chart (0 — 100mm).
The presentation range can be selected freely on the chart for each trace.
This assists the evaluation, in particular of traces which are close to each
other or which overlap. The traces in the example on the right have thus
been arranged over three sections of the chart.
(1)
(2)
(3)
(5)
(6)
(7)
(8)
(4)
(9)
(10)
(11)
