Data Sheet 706021 (706000) JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 6/11

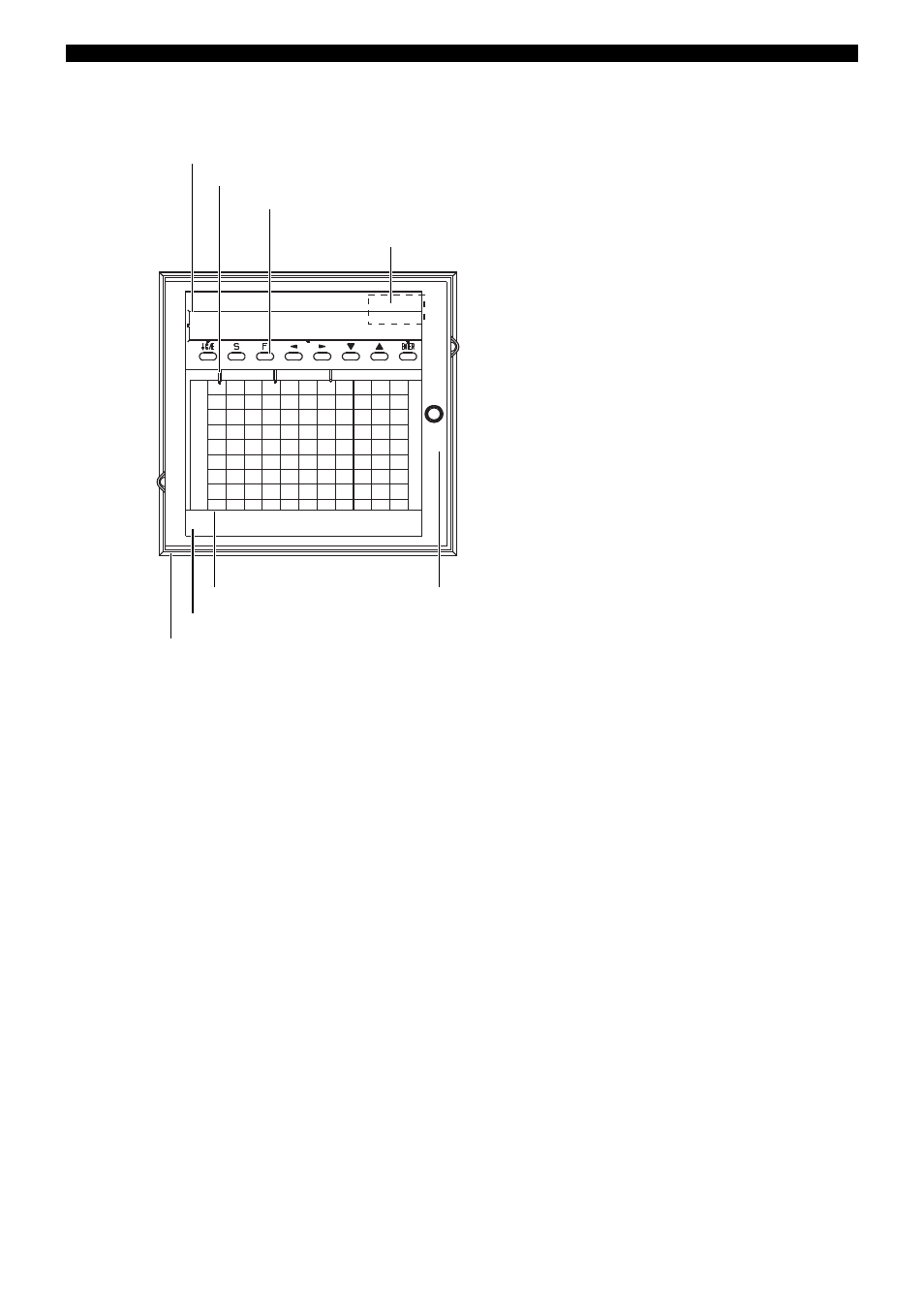

Indications and controls
24-place 5 x 5 LED dot-matrix display
fiber pen
door
channel marker label
housing to IEC 61554 for flush-panel mounting, galvanized steel
chart
keys for operation and programming
setup interface
Operation and
configuration
On the recorder
All parameters can be programmed from
the instrument keys. An LED dot-matrix
display are available to monitor the param-
eters.
Via setup program for PC
More conveniently than by the instrument
keys, all parameters can be configured via
the setup program.
Additional functions are:
-
Customer-specific linearization
- Setting the printing mode of texts
(“Overwrite trace” or “Interrupt trace”)
- Different settings (also for several
instruments) can be managed.
- Reading out and altering the setting
of a configured instrument
- Archiving and printing the setting
Customer-specific linearization
In the setup program there is a choice be-
tween linear, square law and cube law line-
arization. There can be up to 41 calibration
points for linear and square law lineariza-
tion, and up to 61 calibration points for
cube law linearization. These calibration
points are used to determine the coeffi-
cients for polynomials which are defined
for each section, so that even a few calibra-
tion points produce a smooth graph.
Accuracy: depends on the shape of the
graph and the selected linearization.
Language
The language which was set (English, Ger-
man, French) appears in the print-out and
in the LED dot-matrix display.
