8
3 Installation

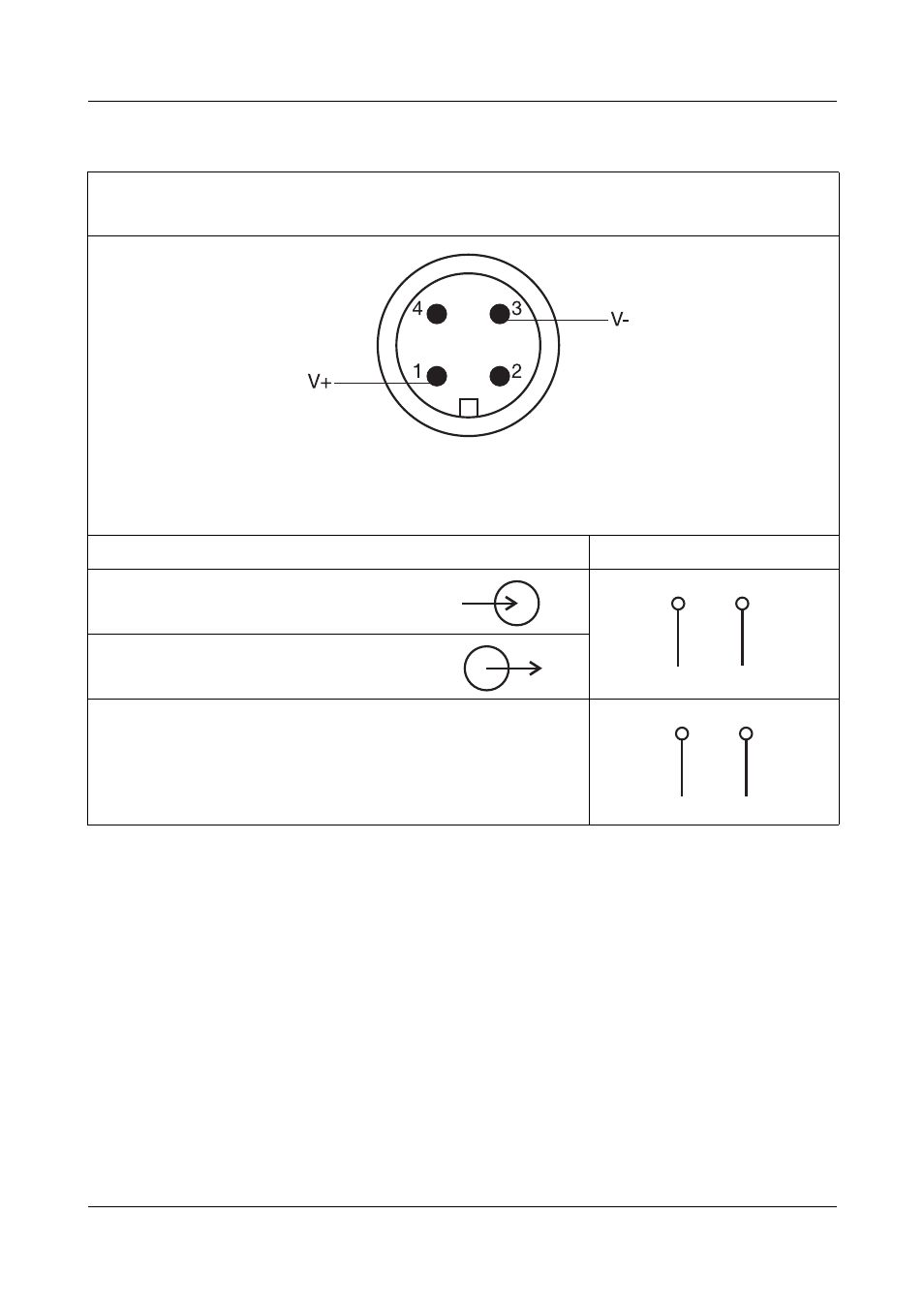

3.1 Connection diagram
M12 × 1 machine connector, 4-pole
according to IEC 60947-5-2
Warning
Do not make any connections to pins 2 and 4!
Electrical connection
Pin
Voltage supply
8 to 35 V DC
Current output
4 to 20 mA
Setup communication
via special configuration cable
(for configuration only,
continuous operation is not permissible)
V Caution
After the machine connector has been plugged in correctly,
care must be taken that the prescribed voltage supply is
applied and the pins are assigned correctly during
connection. If this is not observed, the device will be
destroyed.
+
-
1 3
V+ V-
2 4
