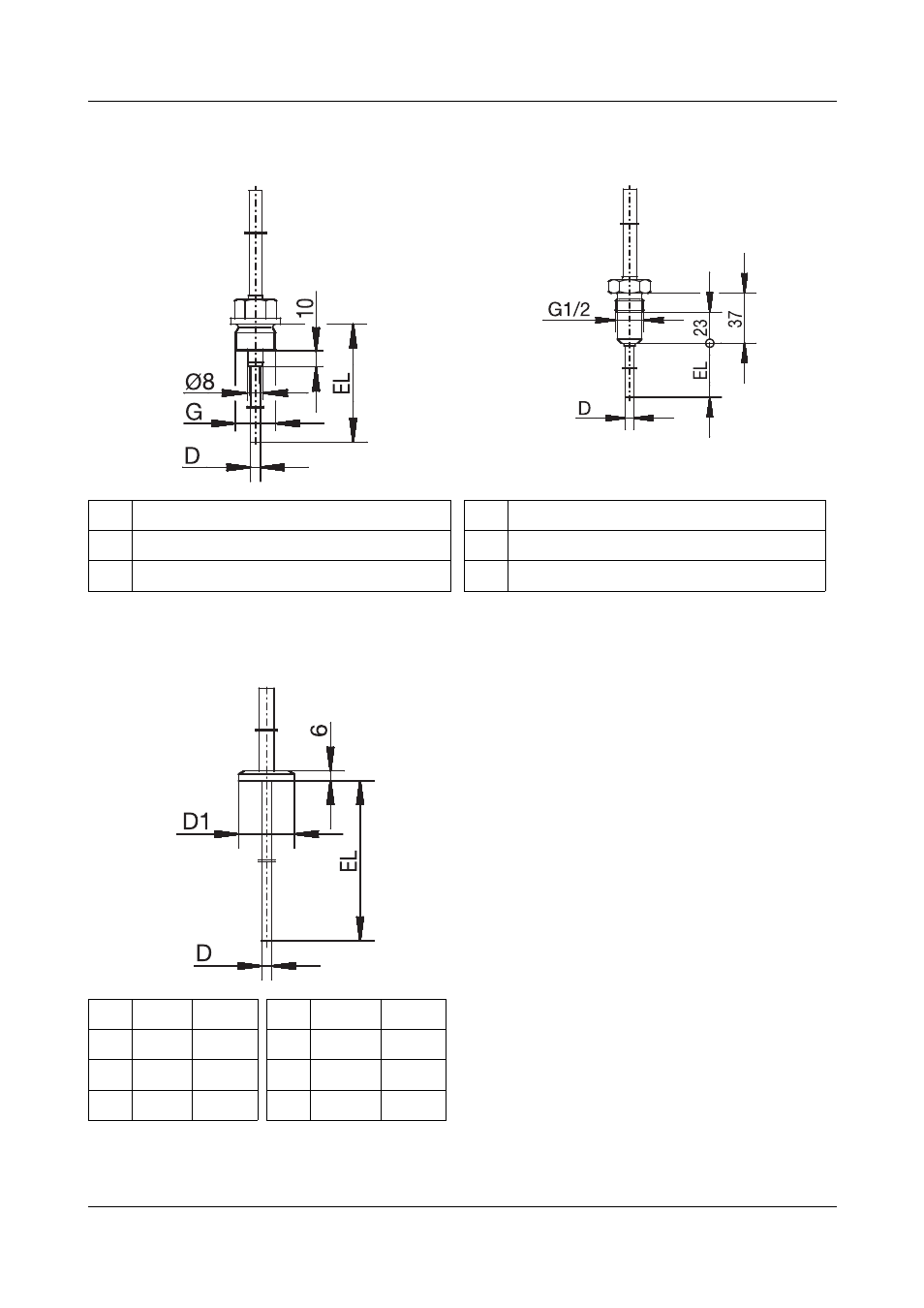

5 Dimensions
5.2 Process connection PA
Screw fitting Screw fitting with
CIP-compliant conical seal
Clamping nipple
according to DIN 32676 (clamp)
PA G
103 3/8
104 1/2 PA
380
PA DN D1 PA DN D1
- - Ш 25 613 40/1.5" Ш 50.5
611 10/20 Ш 34 616 50/2" Ш 64
613 25/1" Ш 50.5 617 2.5" Ш 77.5
