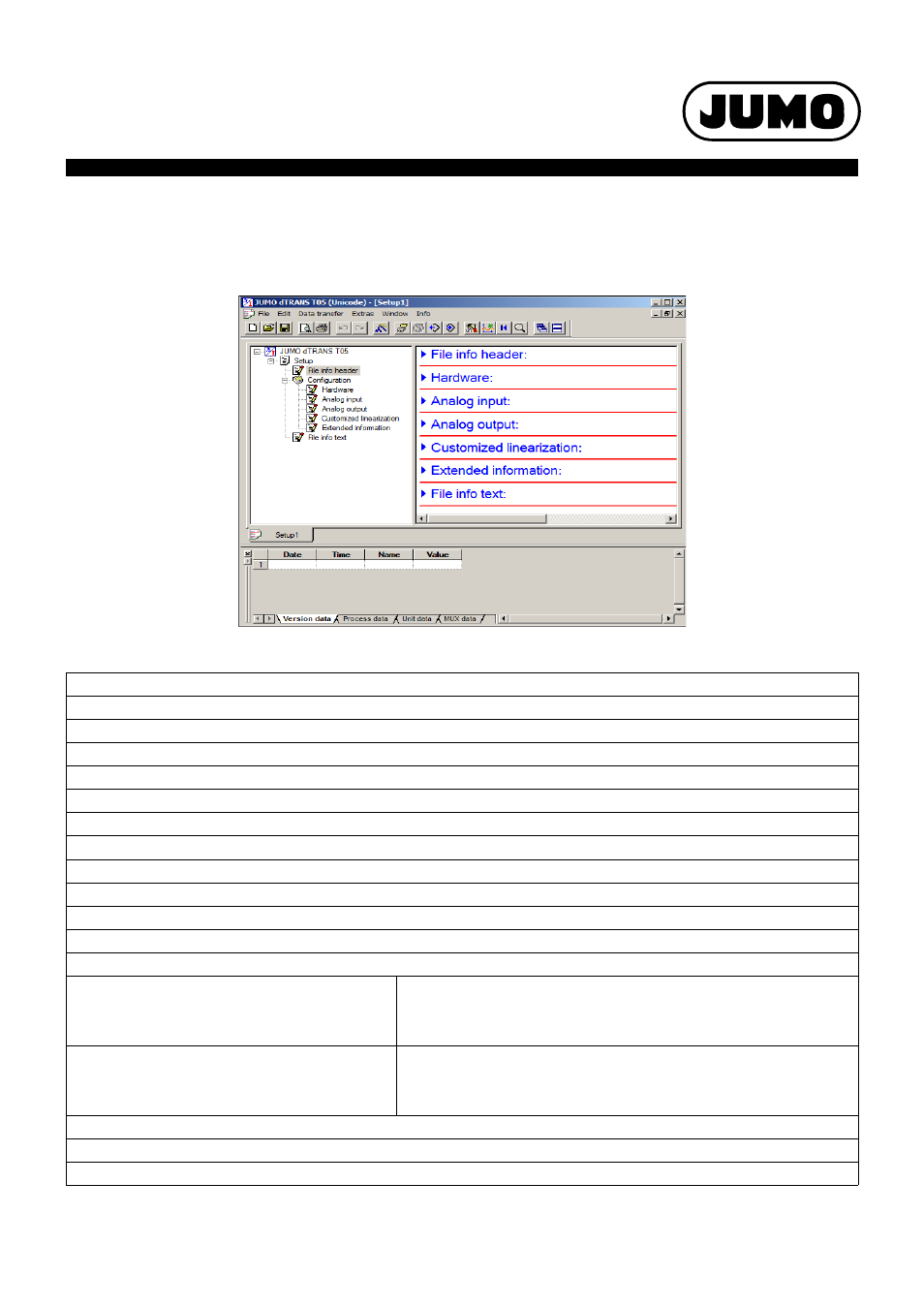

Setup program

The transmitter is configured on the PC with the setup program. The connection between transmitter and PC is established via a USB cable. The
transmitter interface is a USB port of the Mini-B type. It supports standard 2.0 "Full Speed". Once configuration of the transmitter has been com-
pleted make sure that the attached hinged-on lid is back on the transmitter's USB interface.

Configurable parameters

Sensor type

Connection type 2/3-wire circuit or 4-wire circuit for RTD temperature probes or resistors/potentiometers

Linearization

Customer-specific linearization

Sensor factor for thermocouple/RTD temperature probe

Lead wire resistance with 2-wire circuit

External or internal cold junction for thermocouple

Scaling

Digital filter

Offset

Unit

Behavior in the event of a probe break/short-circuit

Output signal increasing or decreasing (reversion)

Output functions, current

4 to 20 mA

Type 705050 and type 705051

4 to 20 mA scalable (start/end)

Constant current source

Output functions, voltage

0 to 10 V

Only type 705051

0 to 10 V scalable (start/end)

Constant voltage source

TAG number (10-digit) and description (20-digit)

Installation date

Data pertaining to version, process and device of the transmitter can be displayed
