JUMO 701150 14597 safetyM STB/STW - Safety Temperature Limiter and Safety Temperature Monitor Data Sheet - Manual (Page 8)

2012-07-01/00540116
Data Sheet 701150 Page 8/14
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
E-mail: [email protected]
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail: [email protected]
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866
1-800-554-JUMO
Fax: 315-697-5867
E-mail: [email protected]
Internet: www.jumousa.com

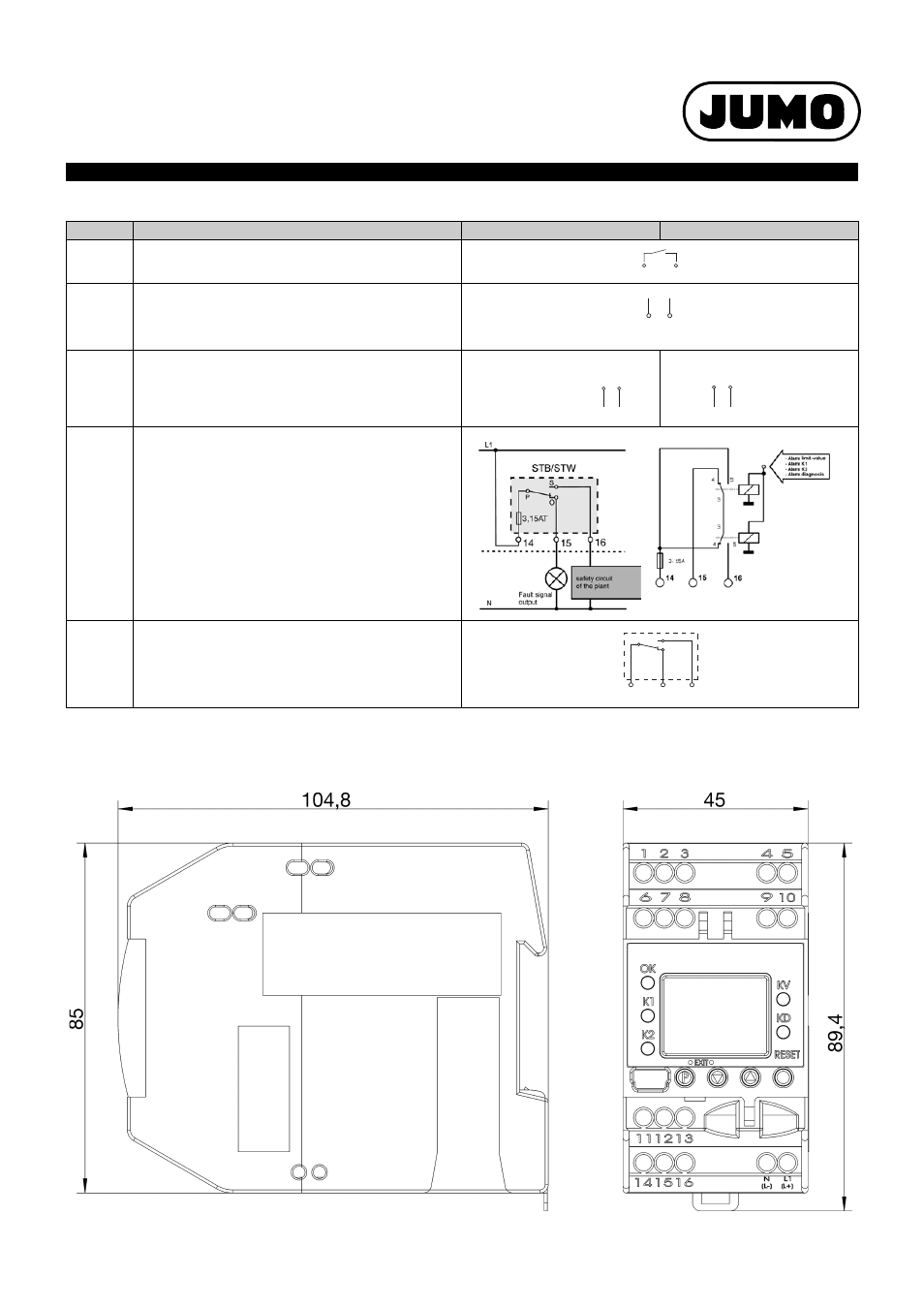

Dimensions
Type 701150/...
4 Binary input
Connection to a floating contact
5 Analog output:
0 to 20 mA
4 to 20 mA (factory set)
0(2) to 10 V
9 Voltage supply
Acc. to nameplate AC:
L1 line conductor
N neutral conductor DC:
(L+)
(L-)
10 Relay output alarm (zero-current state)
Relay (changeover contact) with fuse cut-out
11 Relay output for pre-alarm (KV)
Relay (changeover contact)
Legend: Comment Screw terminals Screw terminals
4 5
Ground
9 10
+
–
I
x,
U
x
L1 N
L1 N
L+ L-
L+ L-
Internal
circuitry
S
P
11 12 13
Ц
